Part Number # MPDB67523
SKU # 2453731
Image Disclaimers Message
MPDB67523

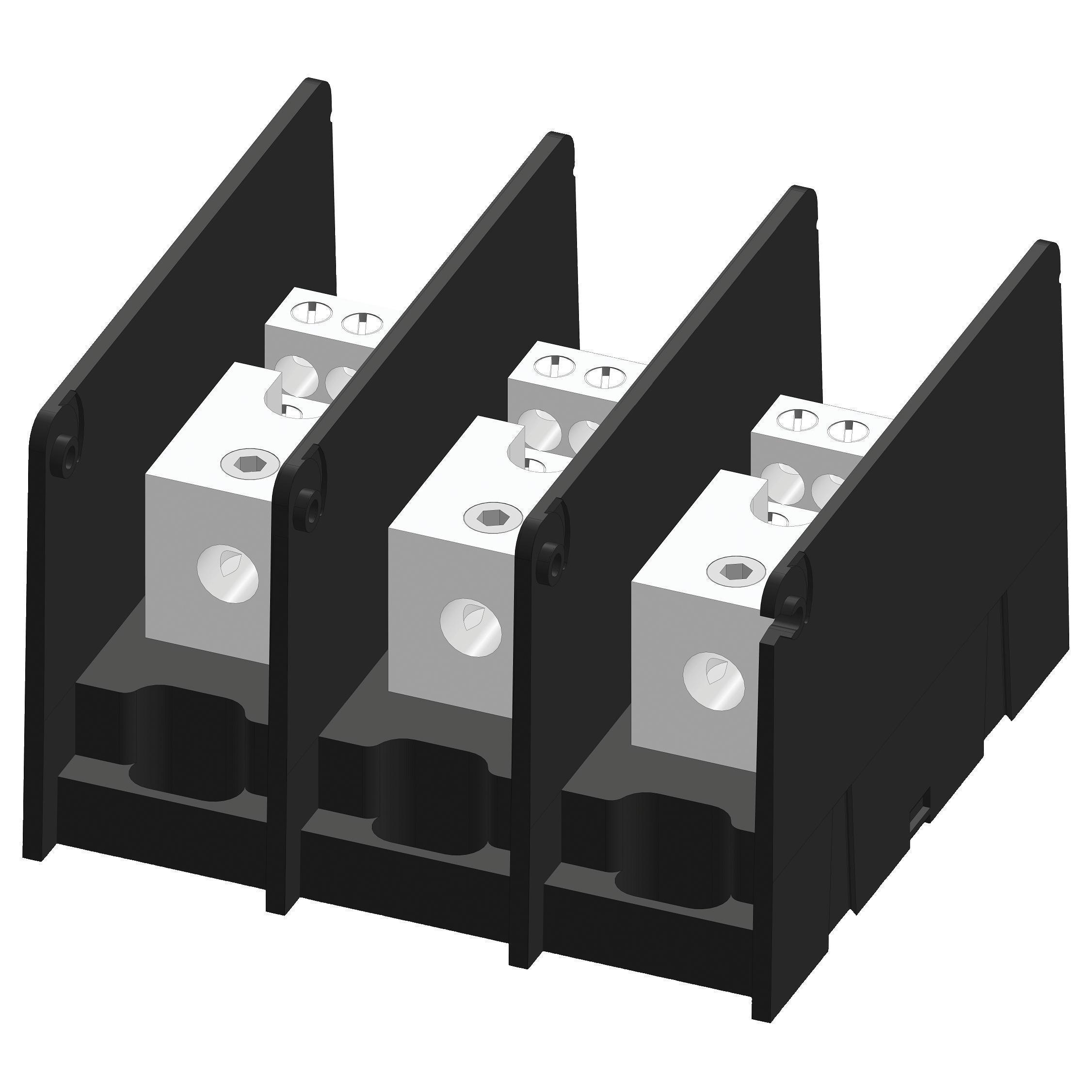

Mersen Fuses MPDB67523
Part Number # MPDB67523
SKU # 2453731
$355.42 / Each
Typical price:$818.89 / Each
Mersen MPDB67523 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB67523 |
| SKU #: | 2453731 |
| Amperage Rating: | 360 A |
| Dimensions: | 5.28 in W x 5 in D x 3.25 in H |
| Finish: | TiN Coated |
| Number of Poles: | 3 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Intermediate Open Style |
| Wire Size: | 6 to 4/0 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001451981 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$355.42 / Each
Typical price:$818.89 / Each
Quantity:
- Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 V AC, 360 A, 3 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 6 to 4/0 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 5.28 in W x 5 in D x 3.25 in H Dimensions
MPDB67523 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB67523 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated aluminum contact
- One cover is needed for each pole
MPDB67523 Standards
RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01SKU #2453731Part Number #MPDB67523UNSPSC39121410UPC00782001451981
