Part Number # MPDB68151
SKU # 2453878
MPDB68151
Mersen Fuses MPDB68151
Part Number # MPDB68151
SKU # 2453878
Mersen MPDB68151 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB68151 |
| SKU #: | 2453878 |
| Amperage Rating: | 310 A |
| Dimensions: | 3.55 in H x 2.73 in W x 5.7 in D |
| Number of Poles: | 1 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 6 AWG to 350 kcmil |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001455279 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen Fuses MPDB68151
Brand: Mersen
Part Number: MPDB68151
Ferraz Shawmut Power Distribution Block, Large Open Style, Series: MPDB, 600 VAC, 310 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.55 in H x 2.73 in W x 5.7 in D
Additional Description: MERS-MPDB68151 PWR DIS BLK CU LG 310A 1P 12
Catalog Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 310A 1-Pole 1 - 12 openings; 350-#6 --- #4-#14 Box to Box
MPDB68151 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB68151 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 6 AWG to 350 kcmil Cu line, 14 to 4 AWG Cu load
MPDB68151 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2453878Part Number #MPDB68151UNSPSC39121410UPC00782001455279

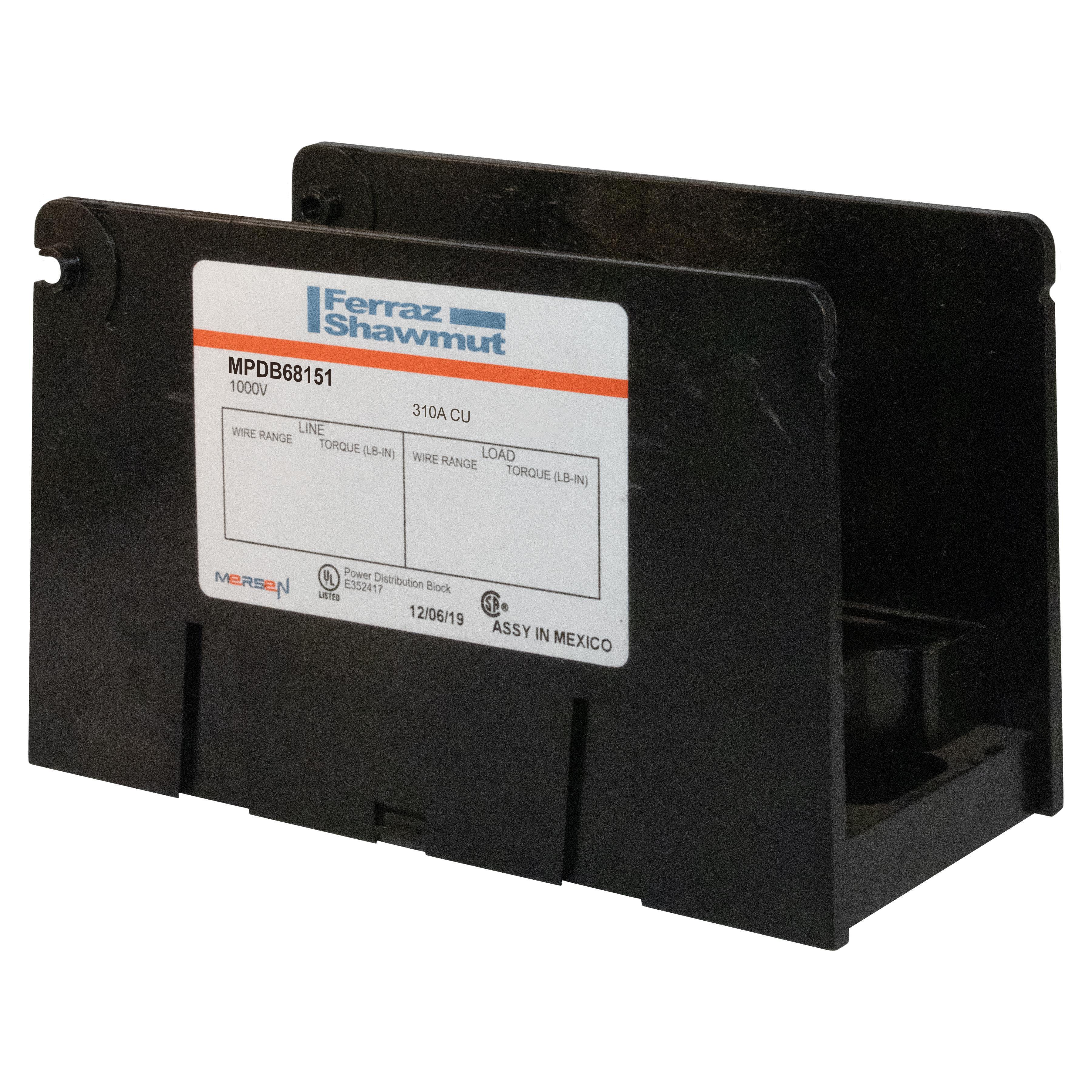

Image provided may only be a representation of final product and may include optional equipment
