MPDB69002

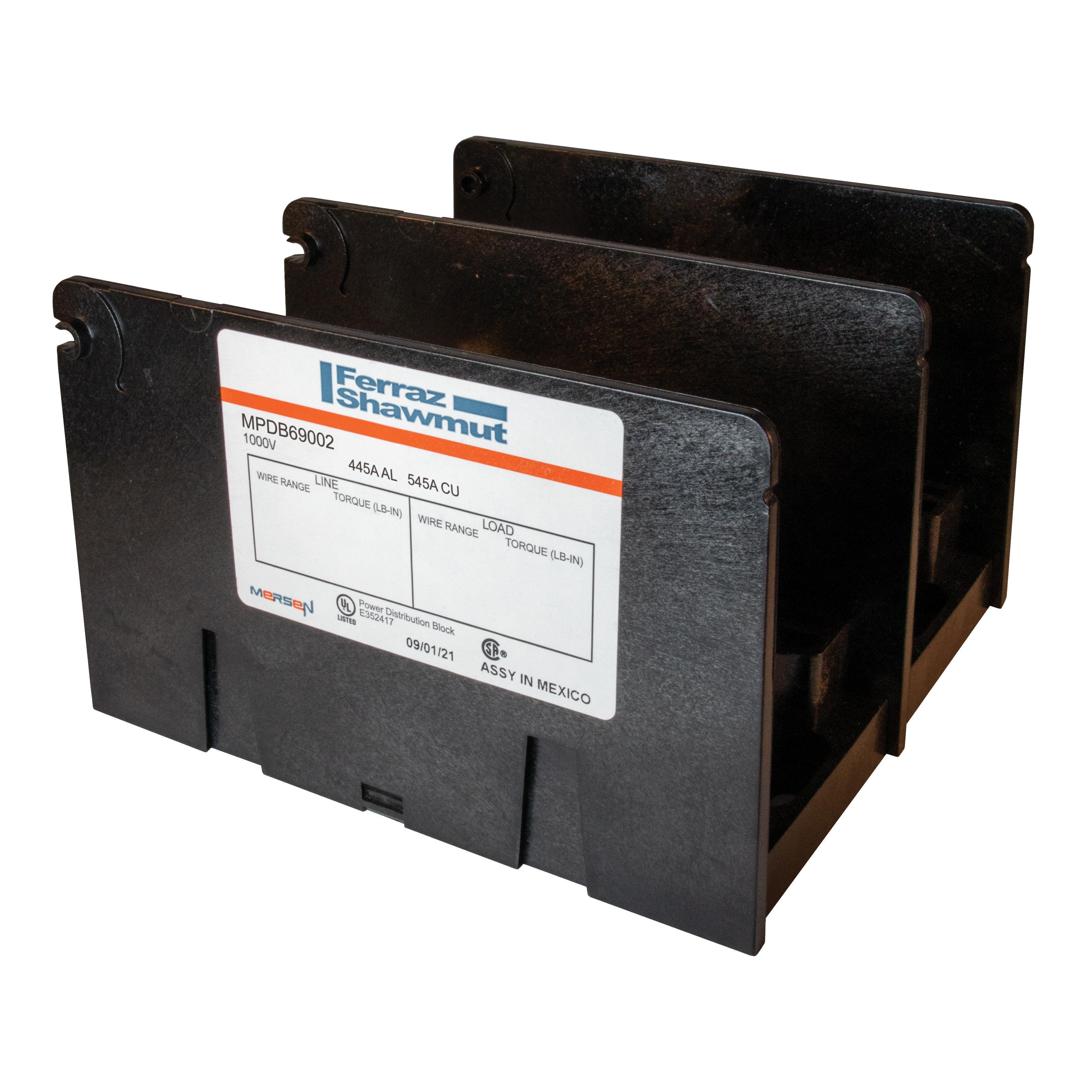

Mersen Fuses MPDB69002
Part Number # MPDB69002
SKU # 2453038
$929.79 / 3Each
Typical price:$2142.21 / Each
Mersen MPDB69002 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB69002 |
| SKU #: | 2453038 |
| Amperage Rating: | 545 A |
| Dimensions: | 5.31 in W x 5.7 in D x 3.55 in H |
| Finish: | TiN Coated |
| Number of Poles: | 2 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 250 to 1000 kcmil |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001452926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$929.79 / 3Each
Typical price:$2142.21 / Each
Quantity:
- Mersen Power Distribution Block, Large Open Style, Series: MPDB, 600 V AC, 545 A, 2 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 250 to 1000 kcmil Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 5.31 in W x 5.7 in D x 3.55 in H Dimensions
MPDB69002 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB69002 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 250 to 1000 kcmil Al line/load
MPDB69002 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01 File No. 069363_0_000|CE Marked|UL94-V0SKU #2453038Part Number #MPDB69002UNSPSC39121410UPC00782001452926
