Part Number # MPDB69310
SKU # 2446725
Image Disclaimers Message
MPDB69310

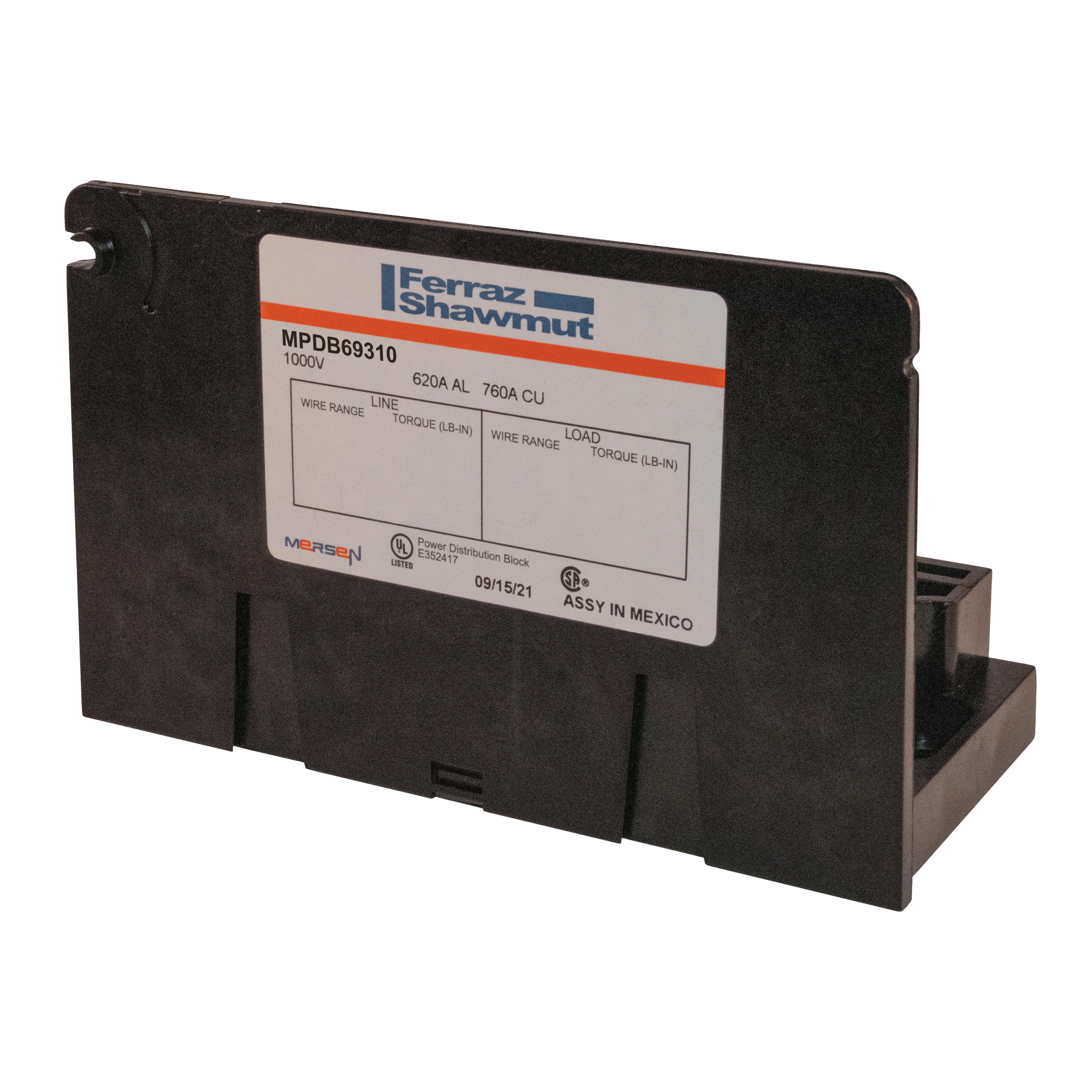

Mersen Fuses MPDB69310
Part Number # MPDB69310
SKU # 2446725
$1241.40 / 6Each
Typical price:$2860.14 / Each
Mersen MPDB69310 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB69310 |
| SKU #: | 2446725 |
| Amperage Rating: | 760 A |
| Dimensions: | 2.58 in W x 5.7 in D x 3.55 in H |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Adder Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001452612 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1241.40 / 6Each
Typical price:$2860.14 / Each
Quantity:
- Mersen Power Distribution Block, Adder Large Open Style, Series: MPDB, 600 V AC, 760 A, 2 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 2.58 in W x 5.7 in D x 3.55 in H Dimensions
MPDB69310 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB69310 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Adder poles for increased flexibility and ease-of-use
- Adder poles can be stacked to form multi-pole units in the field without the use of tools
- Adder poles allow for customization of primary and secondary wire combinations
- 4 AWG to 500 kcmil Al line, 6 to 4/0 AWG Al load
MPDB69310 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Marked|UL94-V0 FlammabilitySKU #2446725Part Number #MPDB69310UNSPSC39121410UPC00782001452612
