Part Number # MPDB69512
SKU # 2451971
MPDB69512
Mersen Fuses MPDB69512
Part Number # MPDB69512
SKU # 2451971
Mersen MPDB69512 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB69512 |
| SKU #: | 2451971 |
| Amperage Rating: | 380 A |
| Dimensions: | 3.55 in H x 5.31 in W x 5.7 in D |
| Number of Poles: | 2 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001455699 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen Fuses MPDB69512
Brand: Mersen
Part Number: MPDB69512
Ferraz Shawmut Power Distribution Block, Large Open Style, Series: MPDB, 600 VAC, 380 A, 2 Poles, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.55 in H x 5.31 in W x 5.7 in D
Additional Description: MERS-MPDB69512 PWR DIS BLK AL LG 380A 2P 4
Catalog Description: Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 2-Pole 1 - 4 openings; 500-#4 --- 4/0-#6 Box to Box
MPDB69512 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB69512 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 4 AWG to 500 kcmil Al line, 6 to 4/0 AWG Al load
MPDB69512 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2451971Part Number #MPDB69512UNSPSC39121410UPC00782001455699

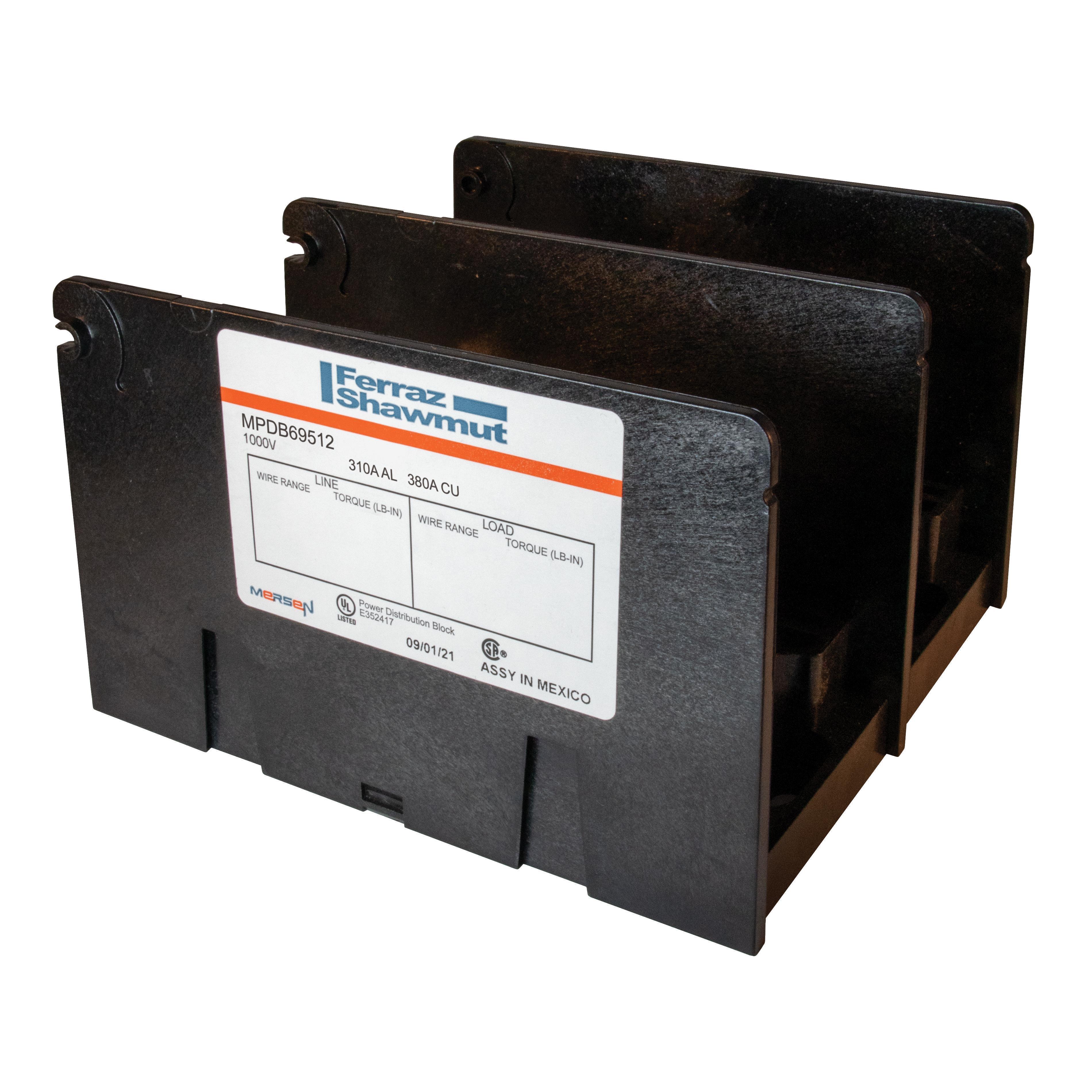

Image provided may only be a representation of final product and may include optional equipment
