Part Number # STZ480Y10B1T
SKU # 2464747
STZ480Y10B1T
Mersen Fuses STZ480Y10B1T
Part Number # STZ480Y10B1T
SKU # 2464747
$3042.14 / Each
Typical price:$11214.55 / Each
Mersen STZ480Y10B1T Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STZ480Y10B1T |
| SKU #: | 2464747 |
| Dimensions: | 17.52 in L x 12.98 in W x 8.06 in H |
| Electrical Ratings: | 480Y, 277 V AC |
| Environmental Conditions: | -40 to 85 deg C Operating/Storage |
| Modes of Protection: | L-G/L-L/L-N/N-G |
| Series: | STZ |
| Type: | Type 1+2 |
| UNSPSC: | 39121610 |
| UPC: | 00782001479534 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3042.14 / Each
Typical price:$11214.55 / Each
Quantity:
- Mersen, STZ480Y10B1T, AC Surge Protective Device, Type 1+2, Series: STZ, 480Y, 277 V AC Electrical Rating, 50, 60 Hz Frequency, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, Audible Alarm/LED Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating/Storage, NEMA 4 Enclosure, Panel/Wall Mounting, Box Terminal, Steel, 17.52 in L x 12.98 in W x 8.06 in H Dimensions
STZ480Y10B1T Application
Suitable for any Type 1 or 2 SPD applicationSTZ480Y10B1T Includes
Surge Counter, Through-the-door Disconnect Switch, Audible Alarm, Dry Contact, and EMI/RFI FilteringSTZ480Y10B1T Item Features
- The Mersen flagship for facility-wide protection surge capacities up to 450kA designed with Mersens industry leading TPMOV technology
- Ideal for new construction bid projects and specifications as well as existing facility retrofit
- Standard features include LED phase loss indication, EMI/RFI filter, surge counter with reset, dry contacts and audible alarm with silence button
- Field replaceable SPD module
- SPD module can be rotated 90 deg depending on desired cable entry location
- Available with or without disconnect switch, up to 10 Modes of Protection
STZ480Y10B1T Standards
ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793|CSA C22.2, Type 1 SPD|ANSI/IEEE C62.41.1, C62.41.2, C62.45|UL96A|RoHS CompliantSTZ480Y10B1T Warranty
15 YearsSKU #2464747Part Number #STZ480Y10B1TUNSPSC39121610UPC00782001479534

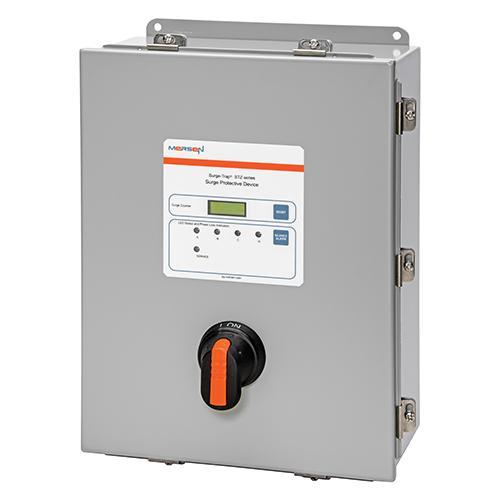

Image provided may only be a representation of final product and may include optional equipment
