HP15M32R

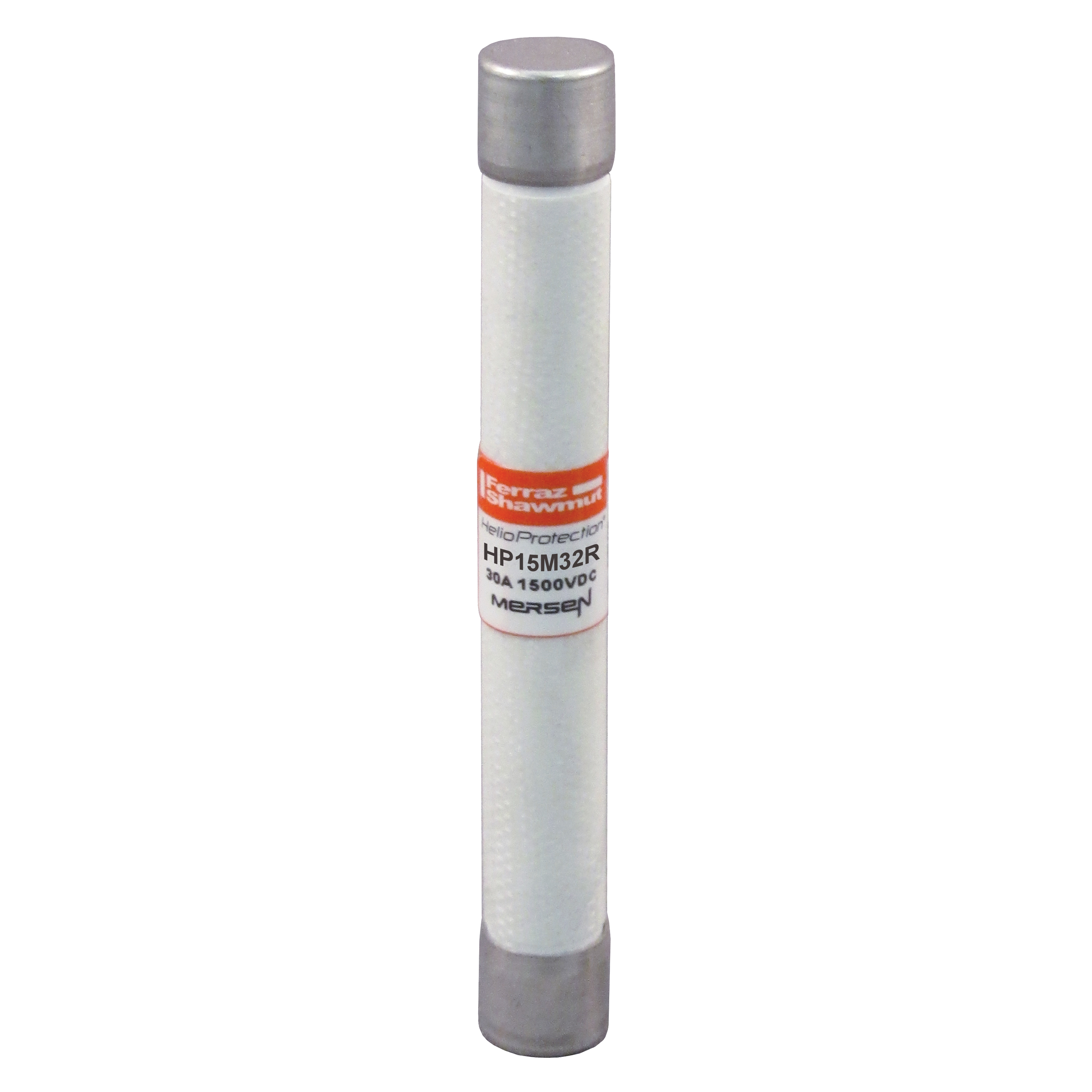

Mersen HP15M32R HP15M Type gPV Fuse, 32 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Part Number # HP15M32R
SKU # 2427059
$234.10 / 5Each
Typical price:$431.50 / Each
Mersen HP15M32R Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HP15M32R |
| SKU #: | 2427059 |
| Amperage Rating: | 32 A |
| Class: | Photovoltaic Midget |
| Interrupt Rating: | 50 kA |
| Series: | HP15M |
| Short Circuit Current Rating (kA): | 50 kA |
| Terminal Type: | Ferrule |
| Type: | Type gPV |
| Material: | GMG |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121606 |
| UPC: | 00782001502140 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$234.10 / 5Each
Typical price:$431.50 / Each
Quantity:
- Mersen, HP15M32R, Fuse, Type gPV, Series: HP15M, 32 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget, 50 kA Short Circuit, Ferrule Terminal, GMG, 85 mm L x 10 mm Dia Body
HP15M32R Application
For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllersHP15M32R Item Features
- Subjected to stringent cycle testing, the GEN2 provides enhanced reliability
- The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
- Protect your off-grid or grid tied PV system from unexpected line faults using Mersens HelioProtection fuse line
- Low fault current interrupting capability
- Durable construction for enhanced system longevity
- Temperature and load cycling capability
HP15M32R Standards
UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|RoHS CompliantSKU #2427059Part Number #HP15M32RUNSPSC39121606UPC00782001502140
