Mersen HP15M5R HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Part Number # HP15M5R
SKU # 2418730

HP15M5R
Mersen HP15M5R HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Part Number # HP15M5R
SKU # 2418730
Mersen HP15M5R Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HP15M5R |
| SKU #: | 2418730 |
| Class: | Photovoltaic Midget |
| Series: | HP15M |
| Type: | Type gPV |
| UNSPSC: | 39121606 |
| UPC: | 00782001504373 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen HP15M5R HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Brand: Mersen
Part Number: HP15M5R
Mersen, HP15M5R, Fuse, Type gPV, Series: HP15M, 5 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget, 50 kA Short Circuit, Ferrule Terminal, GMG, 85 mm L x 10 mm Dia Body
Additional Description: MERS-HP15M5R 1500VDC 5A 10X85 ROBUST PVFUSE 10X85 5A FERRULE CLIP
Catalog Description: Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 5A With Ferrule For Clip
HP15M5R Application
For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllersHP15M5R Item Features
- Subjected to stringent cycle testing, the GEN2 provides enhanced reliability
- The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
- Protect your off-grid or grid tied PV system from unexpected line faults using Mersens HelioProtection fuse line
- Low fault current interrupting capability
- Durable construction for enhanced system longevity
- Temperature and load cycling capability
HP15M5R Standards
UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|RoHS CompliantSKU #2418730Part Number #HP15M5RUNSPSC39121606UPC00782001504373

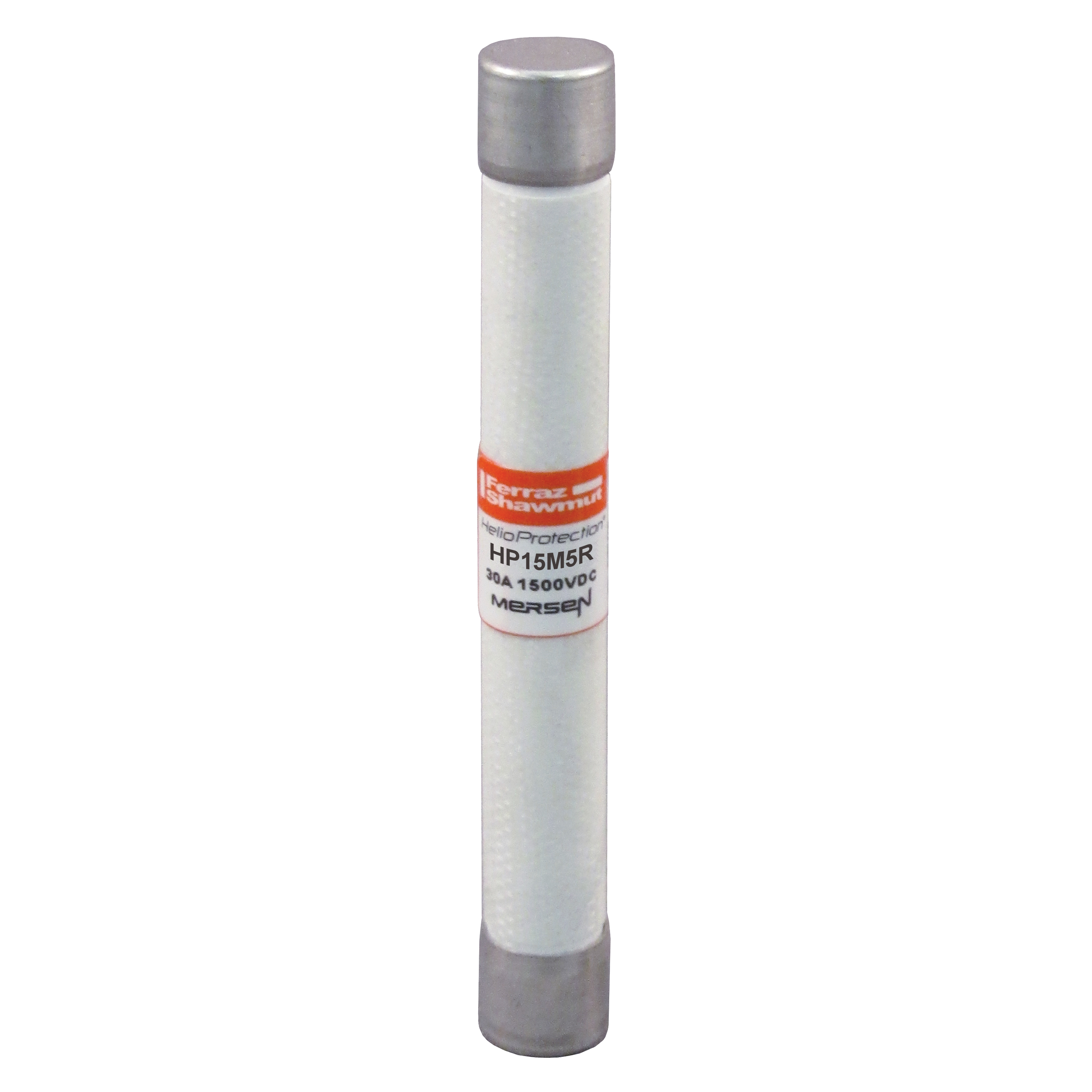

Image provided may only be a representation of final product and may include optional equipment
