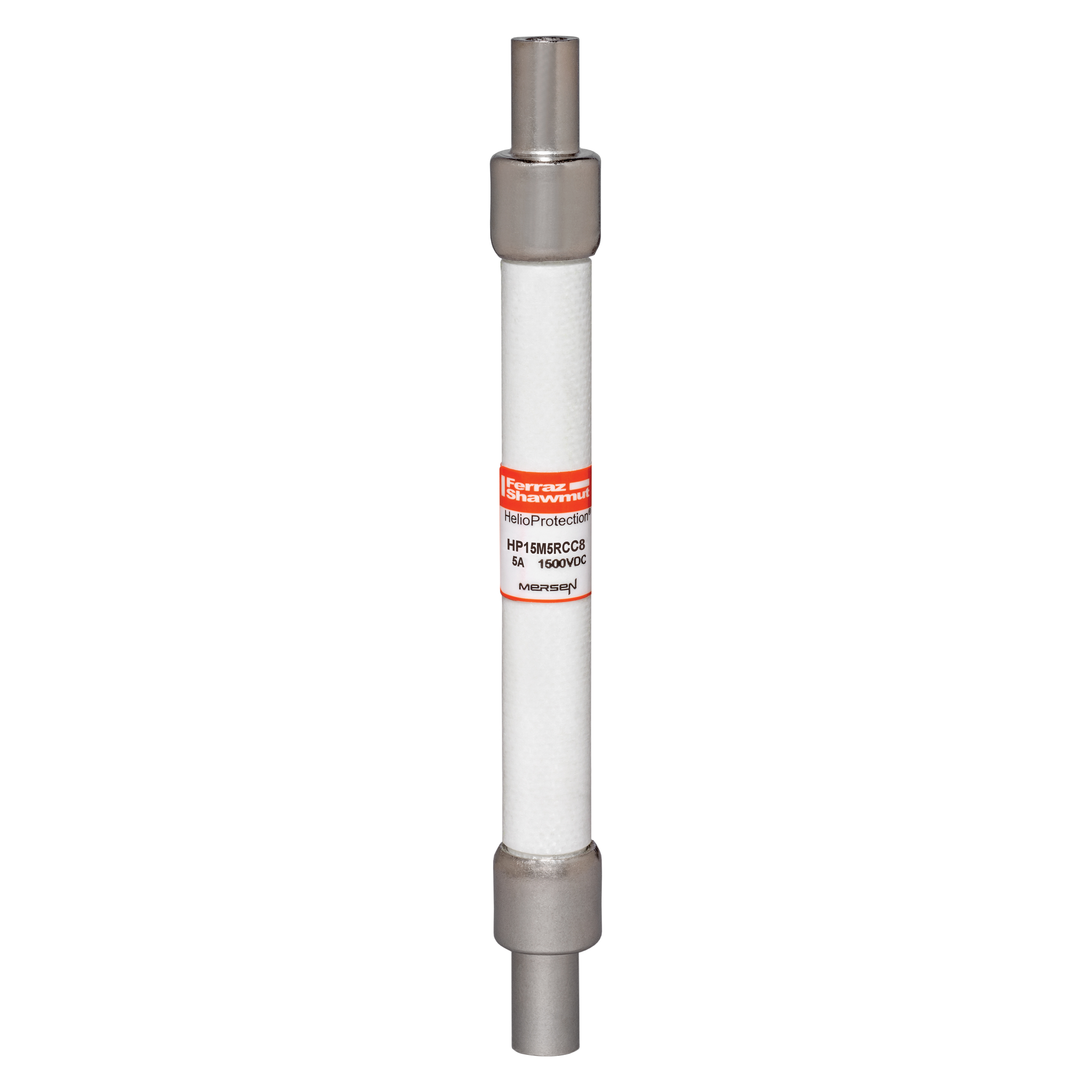

Mersen HP15M5RCC8-B HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Part Number # HP15M5RCC8-B
SKU # 2418728

HP15M5RCC8-B
Mersen HP15M5RCC8-B HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Part Number # HP15M5RCC8-B
SKU # 2418728
Mersen HP15M5RCC8-B Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HP15M5RCC8-B |
| SKU #: | 2418728 |
| Class: | Photovoltaic Midget |
| Series: | HP15M |
| Type: | Type gPV |
| UNSPSC: | 39121606 |
| UPC: | 00782001506858 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen HP15M5RCC8-B HP15M Type gPV Fuse, 5 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic Midget
Brand: Mersen
Part Number: HP15M5RCC8-B
Mersen, HP15M5RCC8-B, Fuse, Type gPV, Series: HP15M, 5 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic Midget, 50 kA Short Circuit, Crimp Terminal, GMG, 85 mm L x 10 mm Dia Body
Additional Description: MERS-HP15M5RCC8-B HP15M5RCC8 / 50-PK GPV 8AWG CRIMP CAP HP15M - PV SERIES GEN2 50-PK
HP15M5RCC8-B Application
For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllersHP15M5RCC8-B Item Features
- Subjected to stringent cycle testing, the GEN2 provides enhanced reliability
- The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
- Protect your off-grid or grid tied PV system from unexpected line faults using Mersens HelioProtection fuse line
- Low fault current interrupting capability
- Durable construction for enhanced system longevity
- Temperature and load cycling capability
HP15M5RCC8-B Standards
UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|RoHS CompliantSKU #2418728Part Number #HP15M5RCC8-BUNSPSC39121606UPC00782001506858
Image provided may only be a representation of final product and may include optional equipment
