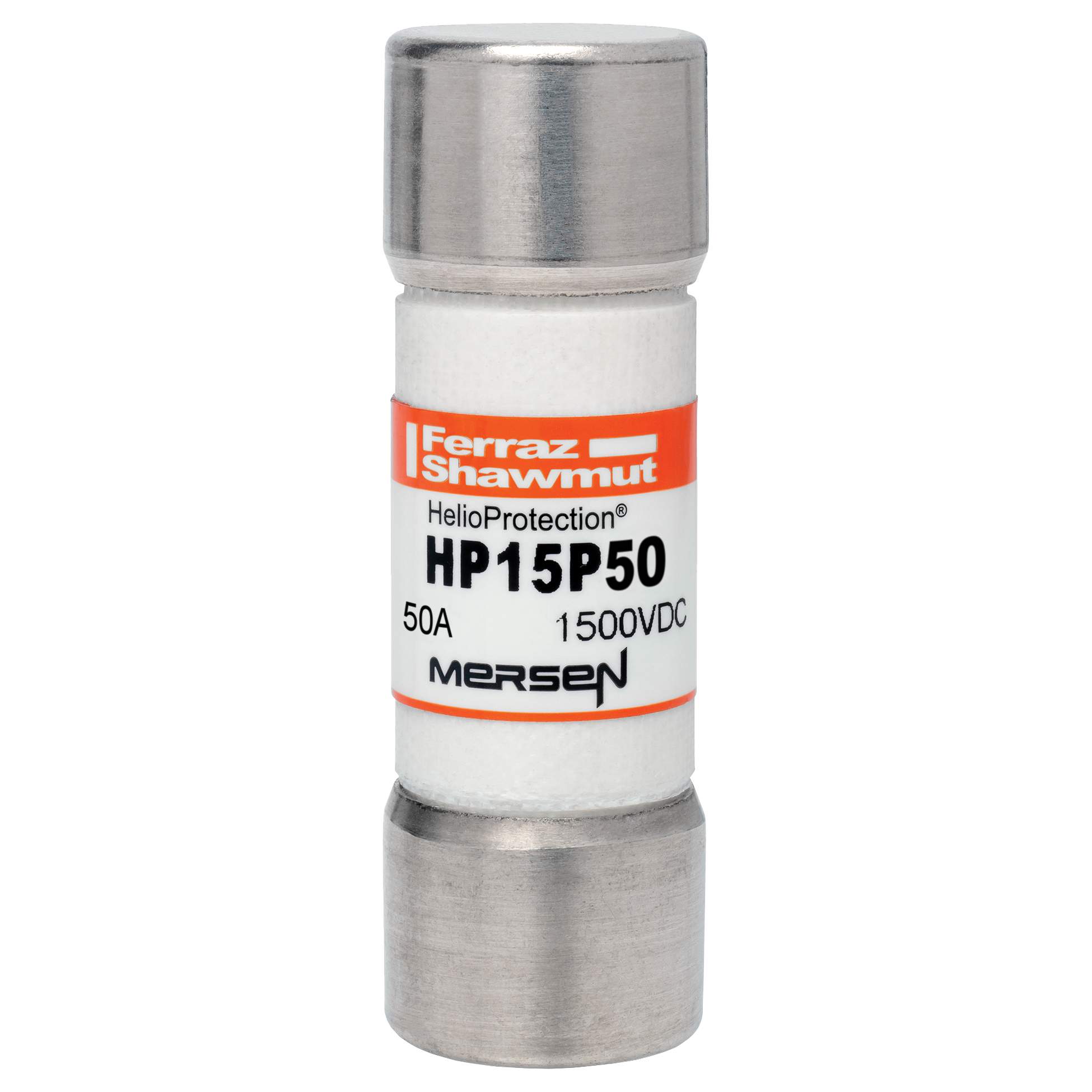

Mersen HP15P50 HP15P Type gPV Fuse, 50 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic
Part Number # HP15P50
SKU # 2441518

HP15P50
Mersen HP15P50 HP15P Type gPV Fuse, 50 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic
Part Number # HP15P50
SKU # 2441518
Mersen HP15P50 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HP15P50 |
| SKU #: | 2441518 |
| Class: | Photovoltaic |
| Series: | HP15P |
| UNSPSC: | 39121606 |
| UPC: | 00782001505448 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen HP15P50 HP15P Type gPV Fuse, 50 A, 1500 VDC, 50 kA Interrupt, Class: Photovoltaic
Brand: Mersen
Part Number: HP15P50
Mersen, HP15P50, Fuse, Type gPV, Series: HP15P, 50 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic, 50 kA Short Circuit, Ferrule Terminal, Clip Mounting, GMG, 65 mm L x 20 mm Dia Body
Additional Description: MERS-HP15P50 1500VDC 50A 20x65MM PV Fuse *MOQ = 25EA
HP15P50 Application
For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllersHP15P50 Item Features
- The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
- Protect your off-grid or grid tied PV system from unexpected line faults using Mersens HelioProtection fuse line
- Low fault current interrupting capability
- Durable construction for enhanced system longevity
- Temperature and load cycling capability
HP15P50 Standards
UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|UKCA|RoHS CompliantSKU #2441518Part Number #HP15P50UNSPSC39121606UPC00782001505448
Image provided may only be a representation of final product and may include optional equipment
