Mersen HSJ70 Amp-Trap High Speed Fuse
Part Number # HSJ70
SKU # 2196262

HSJ70
Mersen HSJ70 Amp-Trap High Speed Fuse
Part Number # HSJ70
SKU # 2196262
Mersen HSJ70 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HSJ70 |
| SKU #: | 2196262 |
| Series: | HSJ |
| Type: | Current Limiting Low Voltage |
| UNSPSC: | 39121627 |
| UPC: | 00782001329563 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen HSJ70 Amp-Trap High Speed Fuse
Brand: Mersen
Part Number: HSJ70
Mersen Amp-Trap High Speed Fuse, Current Limiting Low Voltage, Series: HSJ, Rejection/Non-Rejection: Rejection, 70 A, 600 V AC/500 V DC, 200/100 kA Interrupt, Class: J, Blade Terminal, Clip Mount, Cylindrical Body, Fiber, 1-1/8 in Dia x 4-4/8 in L Body Size
Additional Description: MERS-HSJ70 600V 70A CLASS J HS FUSE 600VAC 500VDC 70A BLADE
Catalog Description: Fuse HSJ - Class J - High-Speed 600VAC 500VDC 70A Blade Amp-Trap®
HSJ70 Application
Branch Circuits, Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-Starters and Solid State Relays ApplicationsHSJ70 Item Features
- Optimized overload capability for withstanding elevated levels of current during electronic motor controller starts
- Low I2T let-thru (thermal energy)
- Excellent cycling ability for frequent starts/stops without nuisance opening
- Compact size
- Tin-plated copper, silver-plated copper contact
- North American power fuses
HSJ70 Standards
RoHS Compliant|UL 248-8|UL File No. E2137|CSA C22.2 No. 248.8SKU #2196262Part Number #HSJ70UNSPSC39121627UPC00782001329563

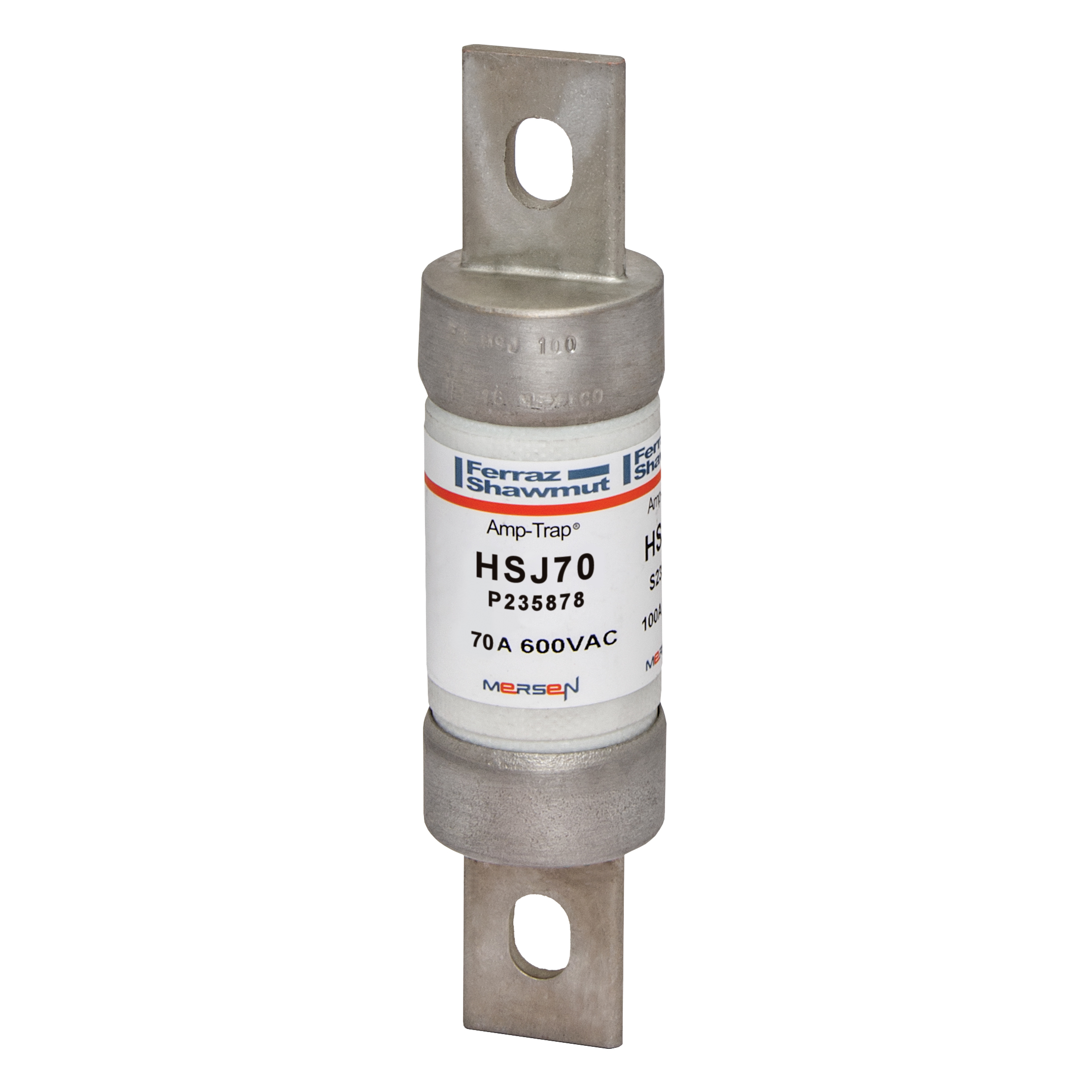

Image provided may only be a representation of final product and may include optional equipment
