Part Number # M30J12
SKU # 2301988
Image Disclaimers Message
M30J12

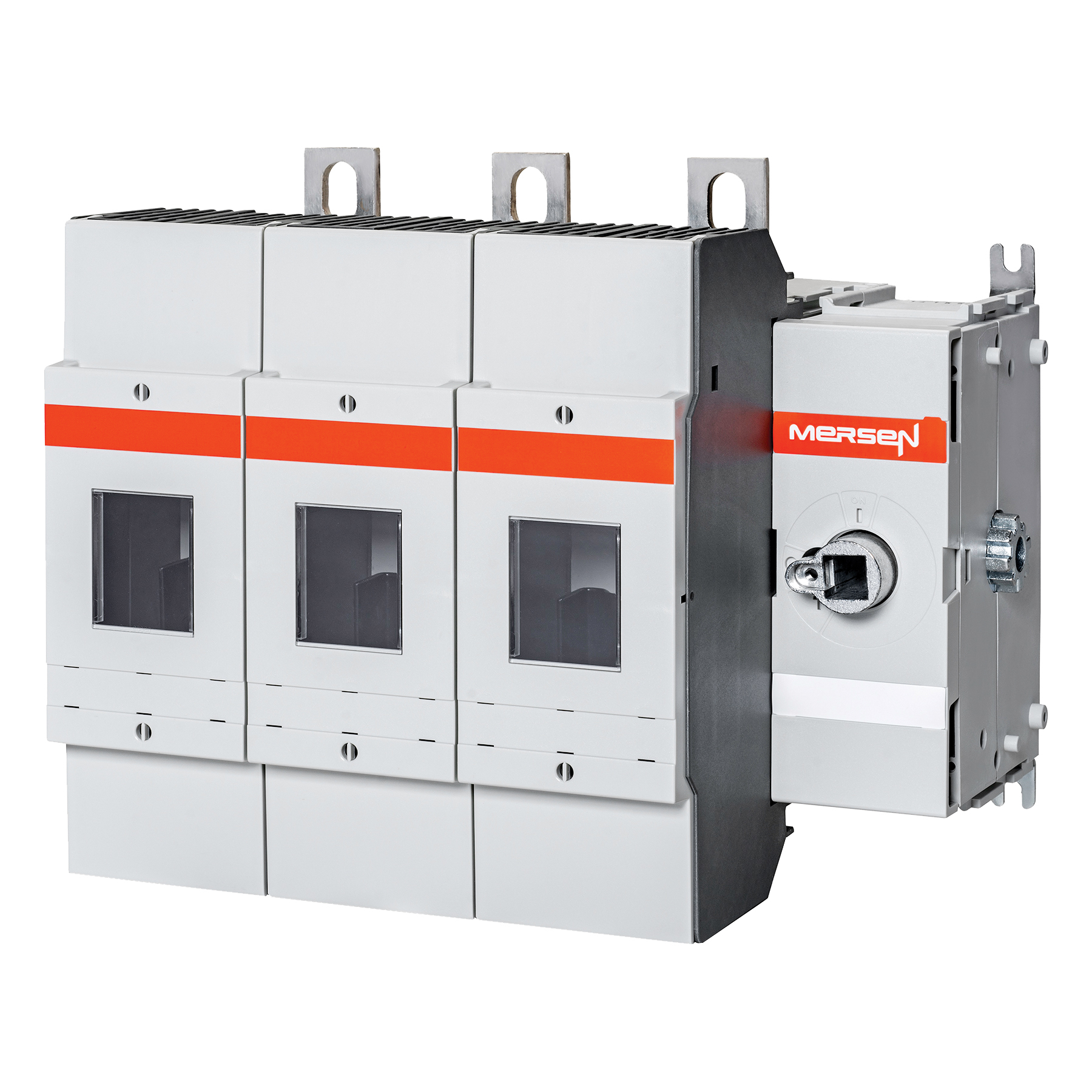

Mersen M30J12 Disconnect Switch
Part Number # M30J12
SKU # 2301988
$510.96 / Each
Typical price:$941.79 / Each
Mersen M30J12 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | M30J12 |
| SKU #: | 2301988 |
| Actuator Type: | Handle |
| Amperage Rating: | 30, 30 A |
| Frequency Rating: | 50, 50 Hz |
| Horsepower: | 2 hp, 3 hp, 7-1/2 hp, 15 hp, 20 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 40, -40 to 40 deg C |
| Terminal Type: | Tunnel |
| Type: | 1+2 Position Class J Fusible |
| Country of origin: | FI |
| Material: | BE |
| Mounting type: | Base |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39122233 |
| UPC: | 00605340558005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$510.96 / Each
Typical price:$941.79 / Each
Quantity:
- Mersen Disconnect Switch, 1+2 Position Class J Fusible, 600 V AC, 30 A, 2 hp, 3 hp, 7-1/2 hp, 15 hp, 20 hp, 50 Hz Frequency, 3 Pole, Handle Actuator, Base Mounting, Tunnel Terminal, -40 to 40 deg C, BE
M30J12 Application
Main Disconnects, Short Circuit Protection, Electrical Isolation, Overcurrent Protection and Safety SwitchM30J12 Item Features
- Multiple Configurations
- Power taps
- Adjustable shaft depth
- Fuse monitoring
- Interlocked fuse doors
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC 3-phase horsepower rating
M30J12 Standards
RoHS Compliant|CSA Certified|UL Listed Guide WHTY|File No. E191605|UL 98|IEC 60947-3|cULus Listed|CE CertifiedSKU #2301988Part Number #M30J12UNSPSC39122233UPC00605340558005
