Part Number # M30J30S
SKU # 2423470
M30J30S

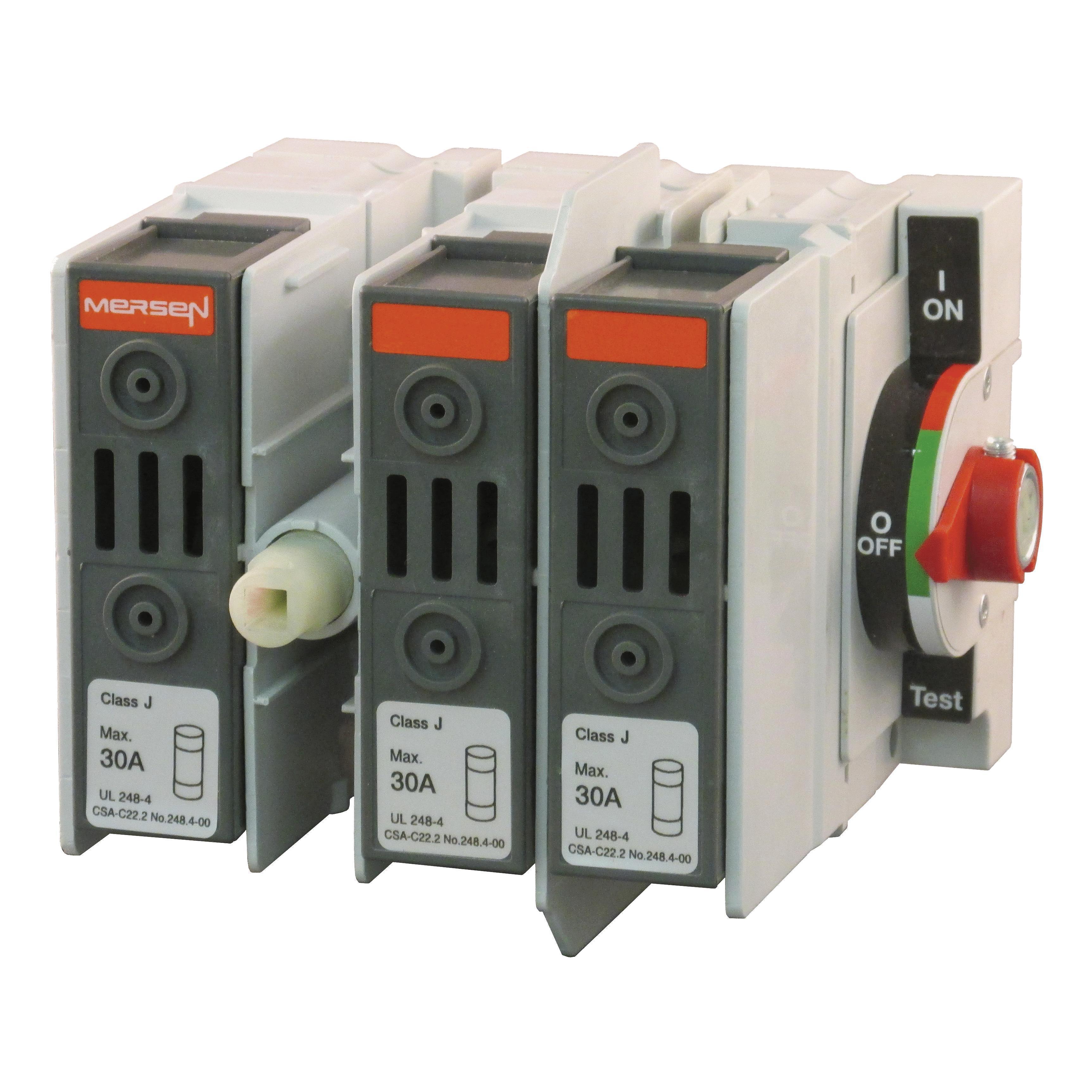

Mersen M30J30S Class J Fusible Side Operated Disconnect Switch
Part Number # M30J30S
SKU # 2423470
Mersen M30J30S Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | M30J30S |
| SKU #: | 2423470 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 118.4 mm H x 127.6 mm W x 118.6 mm D |
| Frequency Rating: | 50 Hz |
| Horsepower: | 2 hp, 3 hp, 7-1/2 hp, 15 hp, 20 hp |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 40 deg C |
| Terminal Type: | Tunnel |
| Type: | Class J Fusible Side Operated |
| Country of origin: | FI |
| Material: | BE |
| Mounting type: | Base |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39122233 |
| UPC: | 00605340558012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen M30J30S Class J Fusible Side Operated Disconnect Switch
Brand: Mersen
Part Number: M30J30S
Mersen fused disconnect switches are extremely durable, manually operated, and versatile. They employ double break contacts per pole that ensure complete isolation of the fuse when the switch is in the OFF position. They can accommodate Class CC, J or L fuses up to 1200A. They have been tested and approved for use in the most demanding applications, such as Service Entrance. They have a TEST function that enables testing of the control circuit auxiliaries without switching the main contacts. Thi
Additional Description: MERS-M30J30S Switch.fus 30A J R side oper.
Catalog Description: UL 98 Fusible Switch 600VAC Class J 30A 3-Pole Configuration: Side Operated
M30J30S Application
Main Disconnects, Short Circuit Protection, Electrical Isolation, Overcurrent Protection and Safety SwitchM30J30S Item Features
- Multiple Configurations
- Power taps
- Adjustable shaft depth
- Fuse monitoring
- Interlocked fuse doors
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC 3-phase horsepower rating
M30J30S Standards
RoHS Compliant|CSA Certified|UL Listed Guide WHTY|File No. E191605|UL 98|IEC 60947-3|cULus Listed|CE CertifiedSKU #2423470Part Number #M30J30SUNSPSC39122233UPC00605340558012
Image provided may only be a representation of final product and may include optional equipment
