MPDB62153

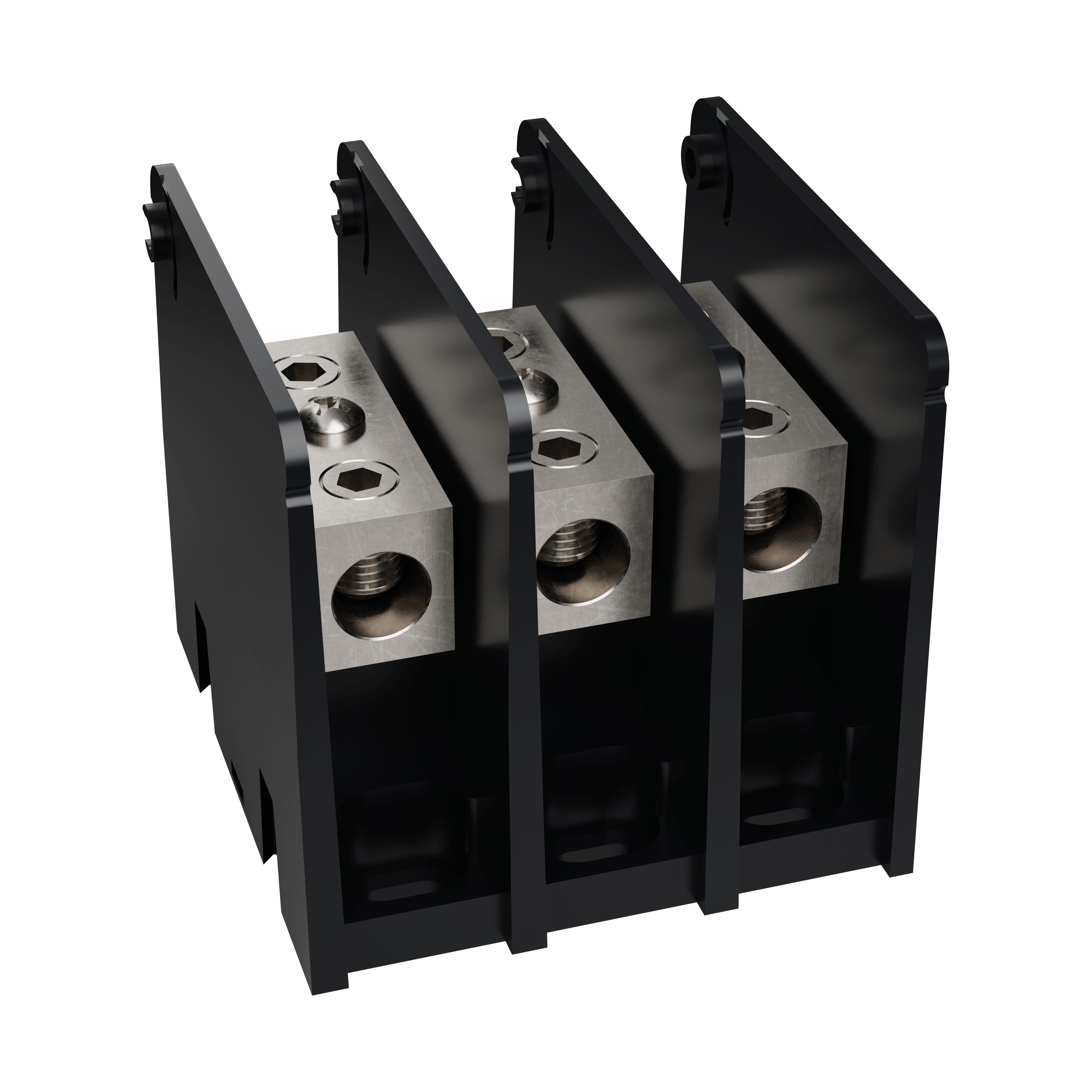

Mersen MPDB62153 Power Distribution Block
Part Number # MPDB62153
SKU # 2294960
$153.88 / 2Each
Typical price:$354.52 / Each
Mersen MPDB62153 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB62153 |
| SKU #: | 2294960 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 2.81 in H x 2.91 in W x 3.08 in D, 2.91 in W x 3.08 in D x 2.81 in H |
| Finish: | TiN Coated, Tin Plated |
| Number of Poles: | 3 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Miniature Open Style |
| Wire Size: | 14 to 2/0, 14 to 2/0 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001450670 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$153.88 / 2Each
Typical price:$354.52 / Each
Quantity:
- Mersen Power Distribution Block, Miniature Open Style, Series: MPDB, 600 V AC, 175 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 2.91 in W x 3.08 in D x 2.81 in H Dimensions
MPDB62153 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB62153 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 14 to 2/0 AWG Cu line/load
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block
MPDB62153 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01 File No. 069363_0_000|CE Marked|UL94-V0SKU #2294960Part Number #MPDB62153UNSPSC39121410UPC00782001450670
