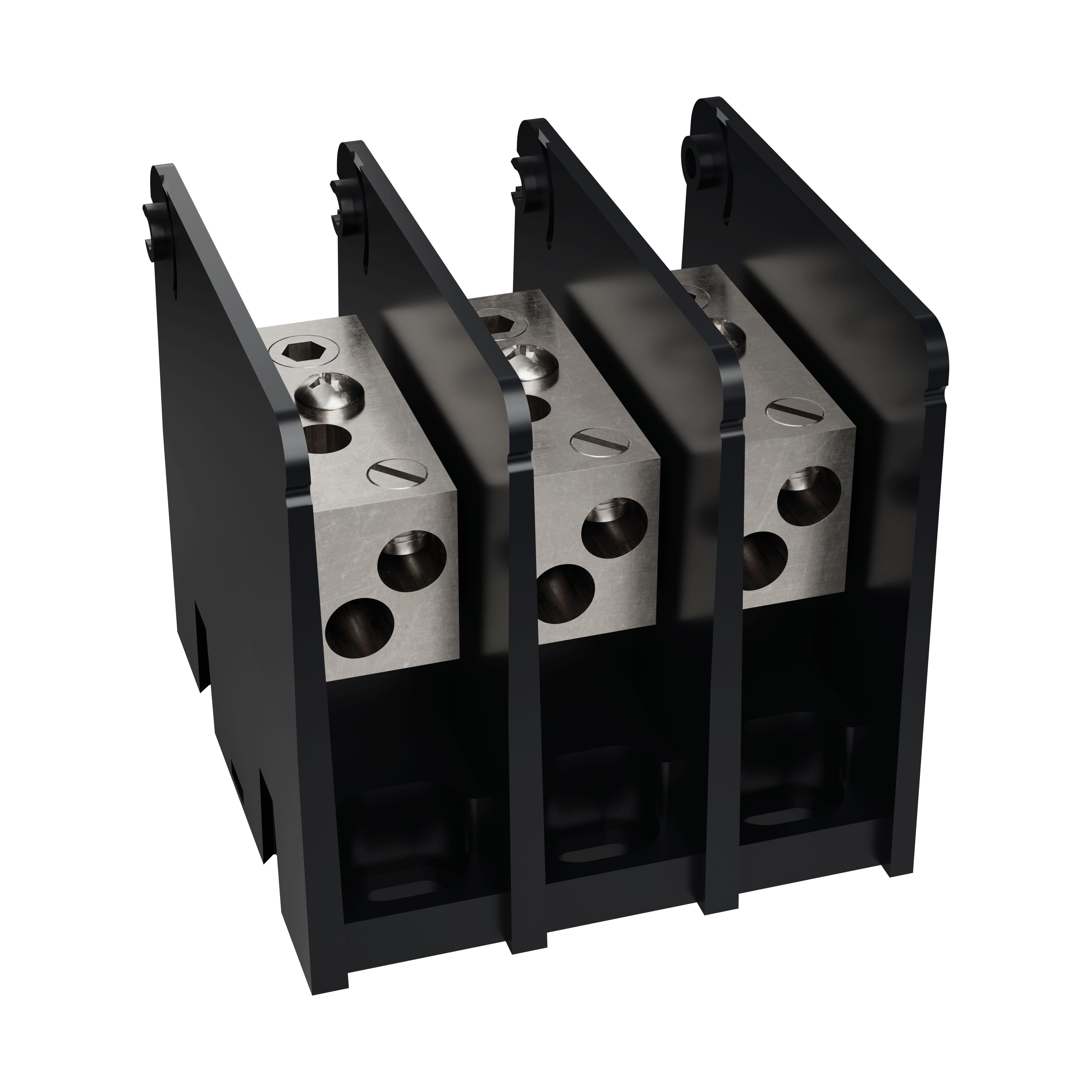

Mersen MPDB62193 Power Distribution Block
Part Number # MPDB62193
SKU # 2269624
$205.88 / 2Each
Typical price:$474.33 / Each
Mersen MPDB62193 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB62193 |
| SKU #: | 2269624 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 2.81 in H x 2.91 in W x 3.08 in D, 2.91 in W x 3.08 in D x 2.81 in H |
| Finish: | TiN Coated, Tin Plated |
| Number of Poles: | 3 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Miniature Open Style |
| Wire Size: | 14 to 2/0 AWG, 14 to 2 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001450762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$205.88 / 2Each
Typical price:$474.33 / Each
Quantity:
- Mersen Power Distribution Block, Miniature Open Style, Series: MPDB, 600 V AC, 175 A, 3 Pole, 1 Primary Connections/Pole, 2 Secondary Connection/Pole, 14 to 2/0 AWG, 14 to 2 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 2.91 in W x 3.08 in D x 2.81 in H Dimensions
MPDB62193 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB62193 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated copper contact
- One cover is needed for each pole
MPDB62193 Standards
RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01SKU #2269624Part Number #MPDB62193UNSPSC39121410UPC00782001450762
