Part Number # MPDB66011
SKU # 2269597
MPDB66011

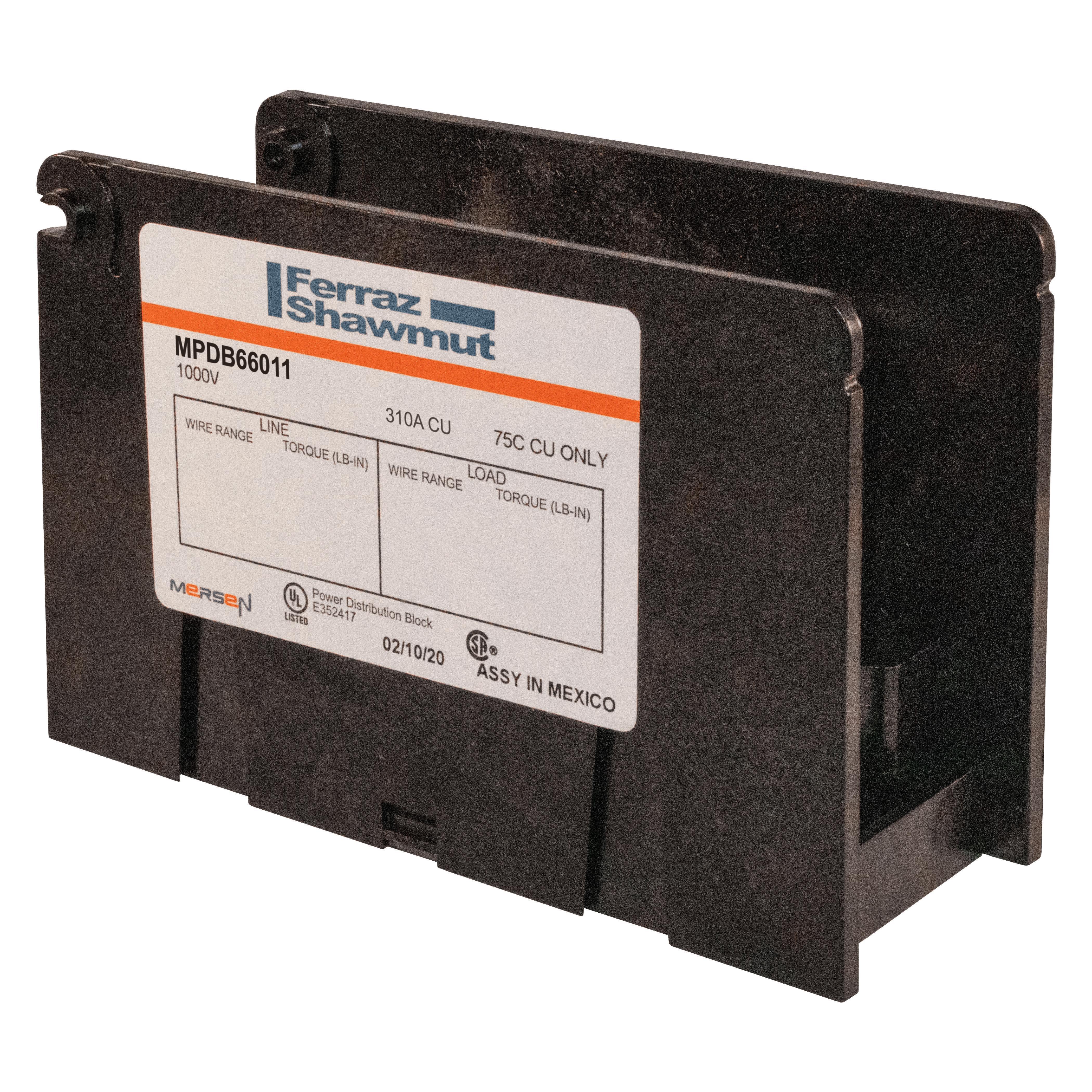

Mersen MPDB66011 Power Distribution Block
Part Number # MPDB66011
SKU # 2269597
$1546.38 / 6Each
Typical price:$3562.91 / Each
Mersen MPDB66011 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB66011 |
| SKU #: | 2269597 |
| Dimensions: | 1.85 in W x 5 in D x 3.25 in H |
| Series: | MPDB |
| Type: | Intermediate Open Style |
| UNSPSC: | 39121410 |
| UPC: | 00782001453497 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1546.38 / 6Each
Typical price:$3562.91 / Each
Quantity:
- Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 V AC, 310 A, 1 Pole, 1 Primary Connections/Pole, 2 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 1.85 in W x 5 in D x 3.25 in H Dimensions
MPDB66011 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB66011 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 6 AWG to 350 kcmil Cu line, 14 to 2/0 AWG Cu load
MPDB66011 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Marked|UL94-V0 FlammabilitySKU #2269597Part Number #MPDB66011UNSPSC39121410UPC00782001453497
Image provided may only be a representation of final product and may include optional equipment
