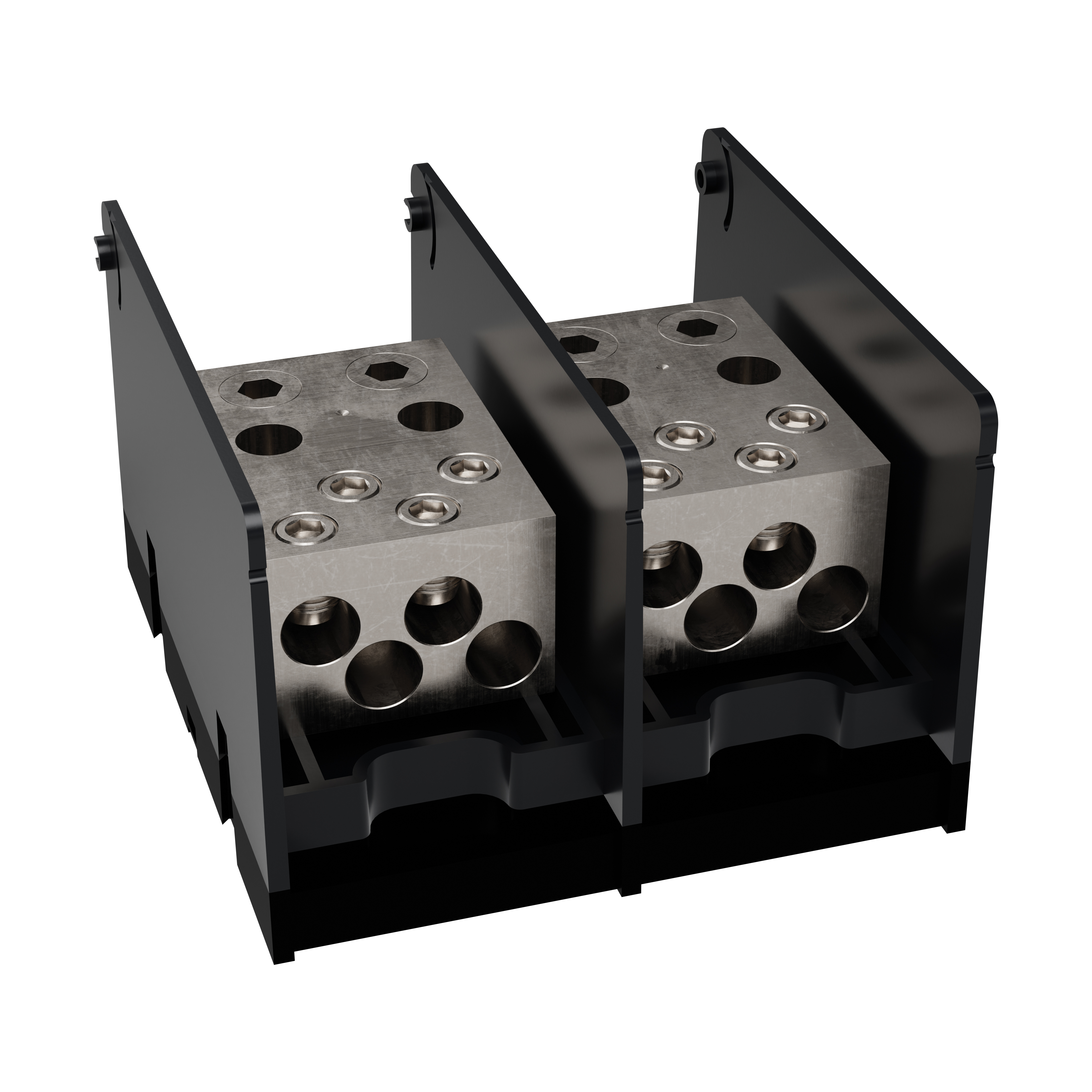

Mersen MPDB68322 Power Distribution Block
Part Number # MPDB68322
SKU # 2400066
Mersen MPDB68322 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB68322 |
| SKU #: | 2400066 |
| Amperage Rating: | 620 A |
| Dimensions: | 3.55 in H x 5.31 in W x 5.7 in D |
| Series: | MPDB |
| Type: | Large Open Style |
| Wire Size: | 6 AWG to 350 kcmil |
| UNSPSC: | 39121410 |
| UPC: | 00782001453299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen MPDB68322 Power Distribution Block
Brand: Mersen
Part Number: MPDB68322
Ferraz Shawmut Power Distribution Block, Large Open Style, Series: MPDB, 600 VAC, 620 A, 2 Poles, 2 Primary Connections/Pole, 4 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.55 in H x 5.31 in W x 5.7 in D
Additional Description: MERS-MPDB68322 PWR DIS BLK CU LG 620A 2P 4 Large 2-Pole 2 - 4 350-#6 4/0-#10
Catalog Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 620A 2-Pole 2 - 4 openings; 350-#6 --- 4/0-#10 Box to Box
MPDB68322 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB68322 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 6 AWG to 350 kcmil Cu line, 10 to 4/0 AWG Cu load
MPDB68322 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2400066Part Number #MPDB68322UNSPSC39121410UPC00782001453299
