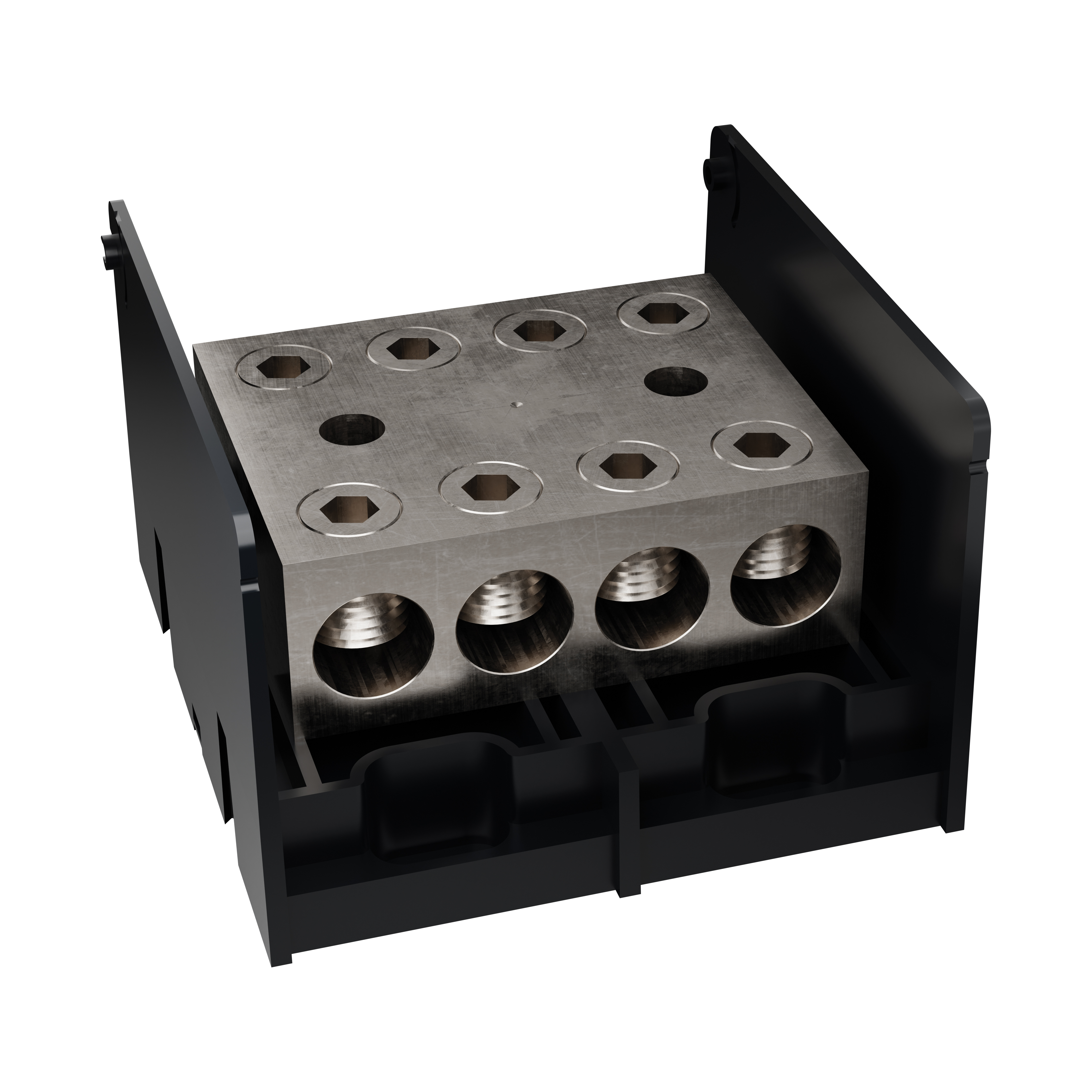

Mersen MPDB800031 Power Distribution Block
Part Number # MPDB800031
SKU # 2323808
$3117.60 / 3Each
Typical price:$7182.95 / Each
Mersen MPDB800031 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB800031 |
| SKU #: | 2323808 |
| Amperage Rating: | 1520, 1520 A |
| Dimensions: | 3.55 in H x 5.31 in W x 5.7 in D |
| Number of Poles: | 1 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Double Wide Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001456207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3117.60 / 3Each
Typical price:$7182.95 / Each
Quantity:
- Mersen Power Distribution Block, Double Wide Large Open Style, Series: MPDB, 600 V AC, 1520 A, 1 Pole, 4 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.55 in H x 5.31 in W x 5.7 in D
MPDB800031 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB800031 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Double wide blocks are MERSEN self certified and approved
- 4 AWG to 500 kcmil Cu line/load
MPDB800031 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2323808Part Number #MPDB800031UNSPSC39121410UPC00782001456207
