Brand: Mersen
MPDB900061

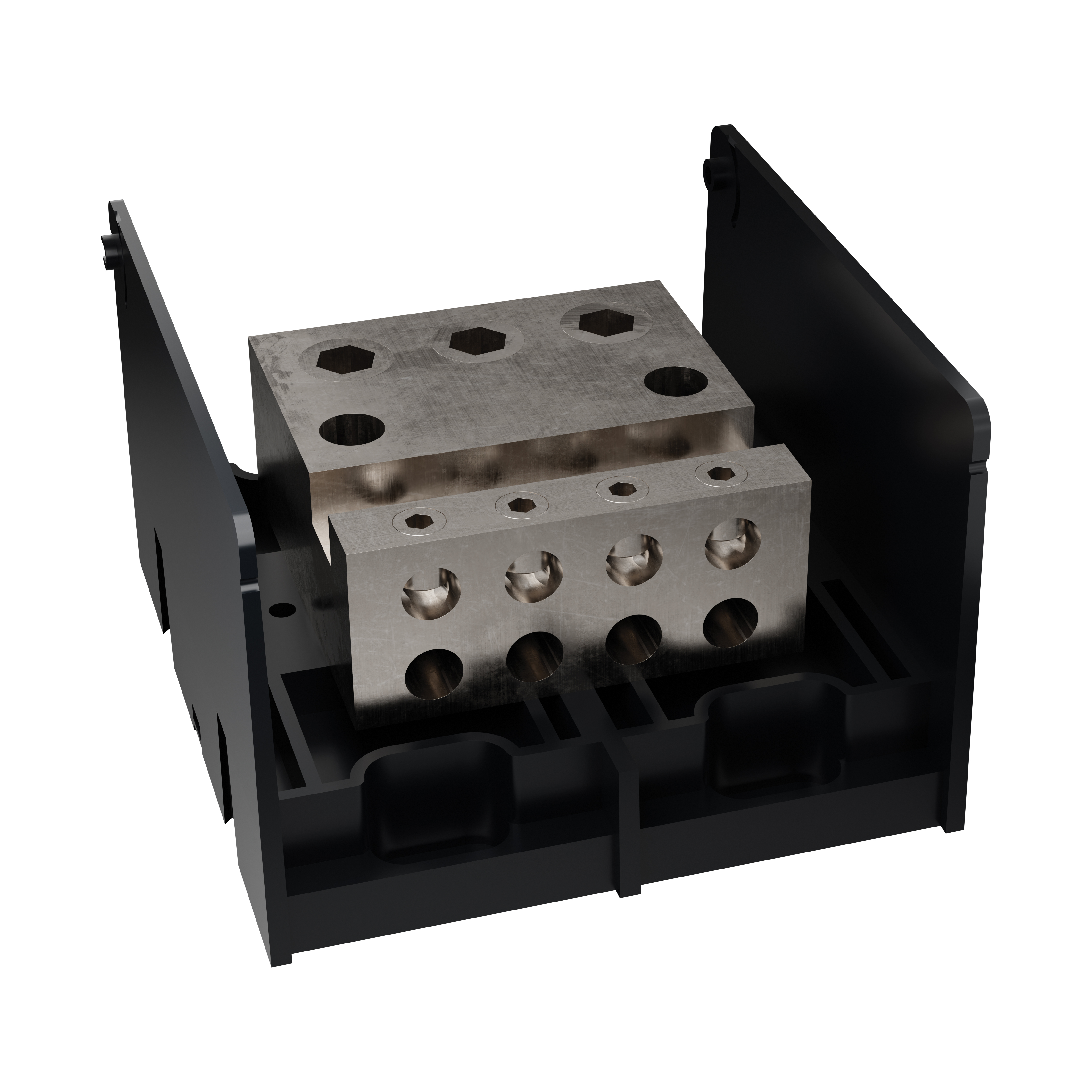

Mersen MPDB900061 Power Distribution Block
Part Number # MPDB900061
SKU # 2302626
$2289.87 / 3Each
Typical price:$5275.87 / Each
Mersen MPDB900061 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB900061 |
| SKU #: | 2302626 |
| Amperage Rating: | 1140, 1140 A |
| Dimensions: | 3.55 in H x 5.31 in W x 5.7 in D, 5.31 in W x 5.7 in D x 3.55 in H |
| Number of Poles: | 1 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Double Wide Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001456238 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2289.87 / 3Each
Typical price:$5275.87 / Each
Quantity:
- Mersen Power Distribution Block, Double Wide Large Open Style, Series: MPDB, 600 V AC, 1140 A, 1 Pole, 3 Primary Connections/Pole, 8 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 5.31 in W x 5.7 in D x 3.55 in H Dimensions
MPDB900061 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB900061 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Double wide blocks are MERSEN self certified and approved
- 4 AWG to 500 kcmil Al line, 14 to 2/0 AWG Al load
MPDB900061 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Marked|UL94-V0 FlammabilitySKU #2302626Part Number #MPDB900061UNSPSC39121410UPC00782001456238
