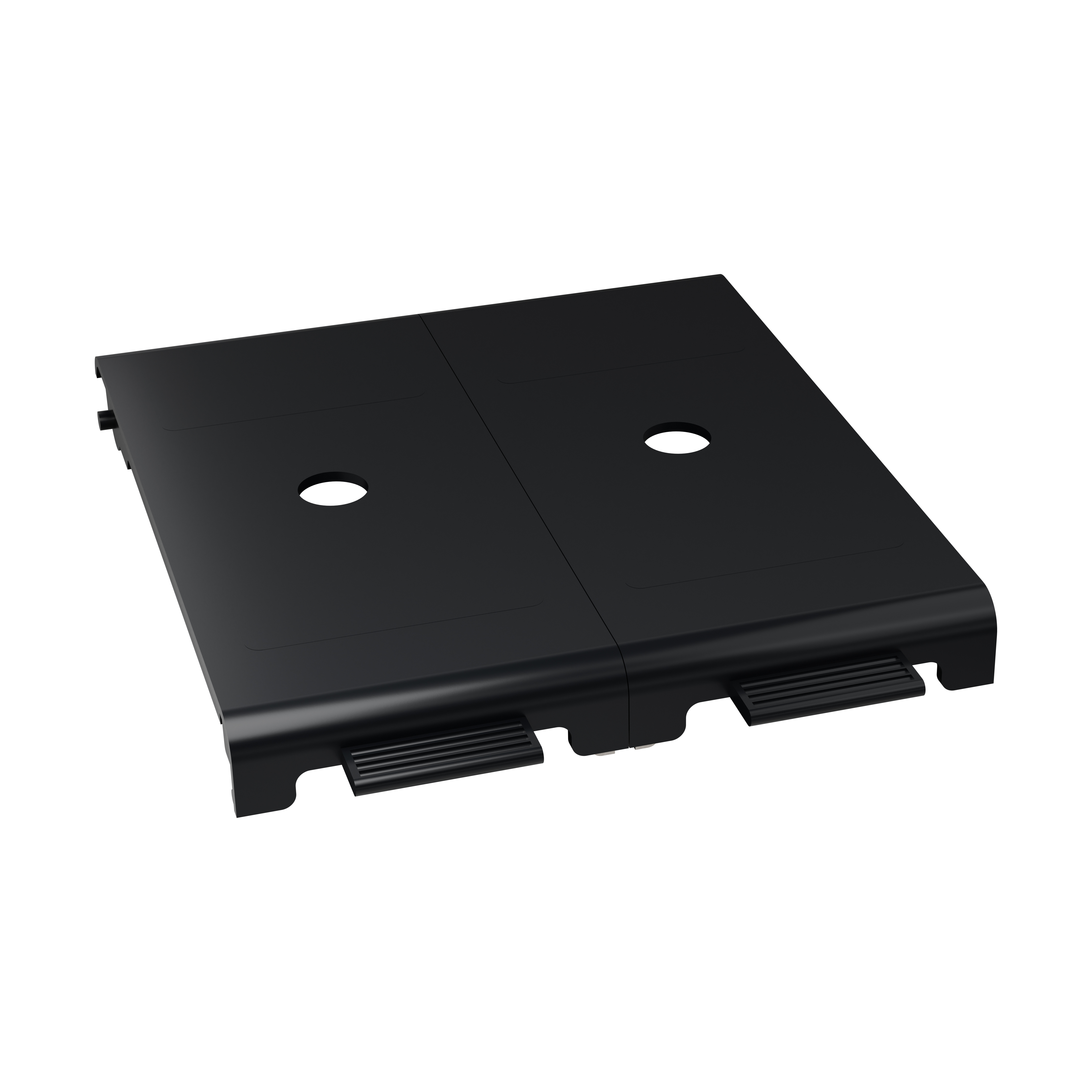

Mersen MPDBC692W Hinged Safety Cover
Part Number # MPDBC692W
SKU # 2285031

MPDBC692W
Mersen MPDBC692W Hinged Safety Cover
Part Number # MPDBC692W
SKU # 2285031
Mersen MPDBC692W Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDBC692W |
| SKU #: | 2285031 |
| Suitable For Use With: | MPDB Double Wide Power Distribution Block |
| UNSPSC: | 39121617 |
| UPC: | 00782001461522 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen MPDBC692W Hinged Safety Cover
Brand: Mersen
Part Number: MPDBC692W
Mersen Safety Cover, Hinged, 1 Pole, For Use With: MPDB Double Wide Power Distribution Block, Specifications: 600 V AC, Polycarbonate
Additional Description: MERS-MPDBC692W (N) SAFETY COVER DOUBLE MPDB Double-Wide MPDB series NON-CANCELLABLE, NON-RETURNABLE
Catalog Description: Open-Style PDB UL 1953 1000V
MPDBC692W Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDBC692W Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only and all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass filled polycarbonate, see-through hinged safety covers are optional and provide a greater degree of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
MPDBC692W Standards
RoHS Compliant|UL File No. E352417|CSA Certified Class 6228-01SKU #2285031Part Number #MPDBC692WUNSPSC39121617UPC00782001461522
Image provided may only be a representation of final product and may include optional equipment
