Part Number # OTM15
SKU # 2397026
OTM15

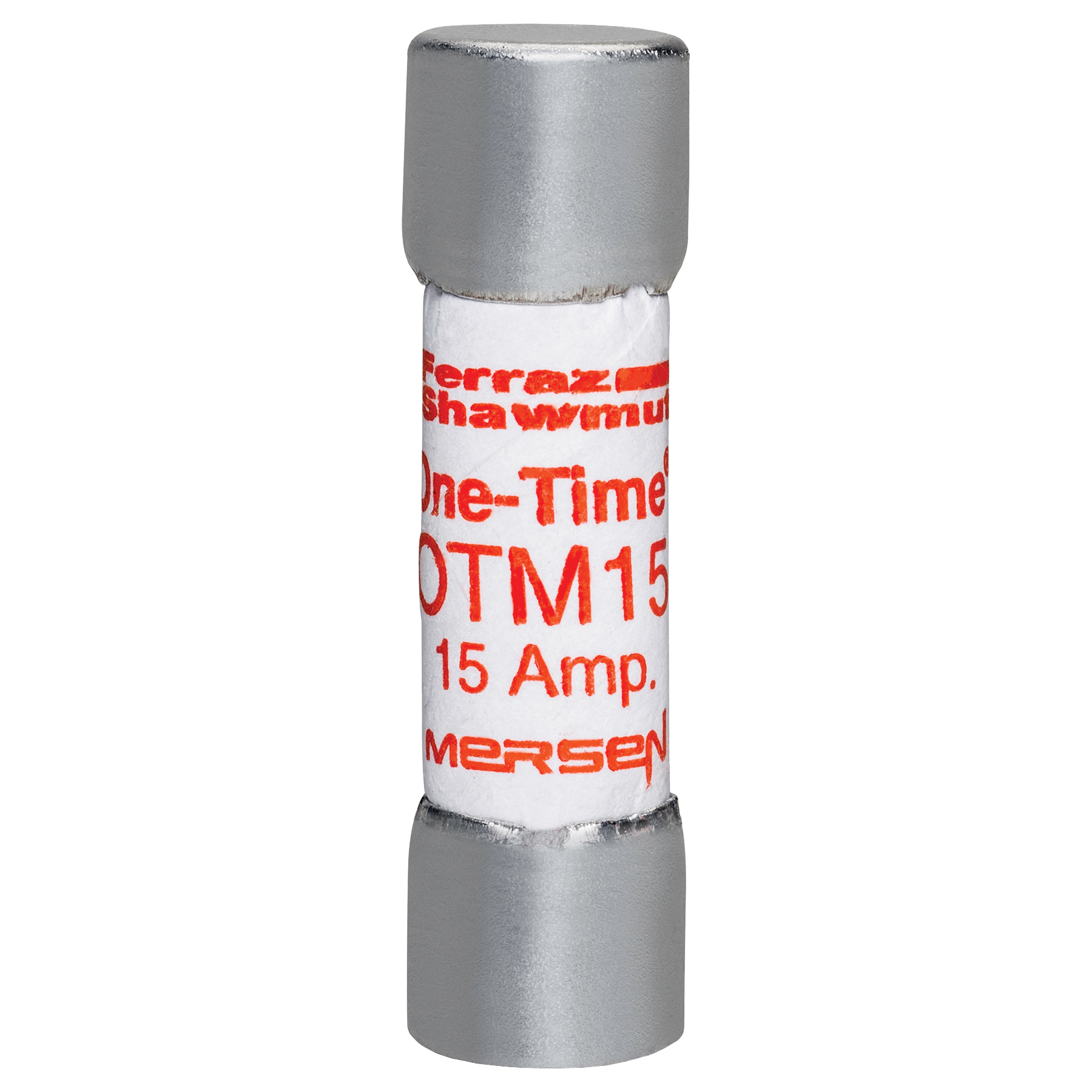

Mersen OTM15 Low Voltage Fast Acting Fuse, 15 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
Part Number # OTM15
SKU # 2397026
Mersen OTM15 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | OTM15 |
| SKU #: | 2397026 |
| Amperage Rating: | 15 A |
| Body Type: | Cylindrical |
| Class: | Midget |
| Interrupt Rating: | 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 4 s |
| Series: | OTM |
| Terminal Type: | Ferrule |
| Type: | Low Voltage |
| Country of origin: | MX |
| Material: | Paper |
| Mounting type: | Clip |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121609 |
| UPC: | 00782001705121 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen OTM15 Low Voltage Fast Acting Fuse, 15 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
Brand: Mersen
Part Number: OTM15
Mersen Fast Acting Fuse, Low Voltage, Series: OTM, Rejection/Non-Rejection: Non-Rejection, 15 A, 250 VAC, 10 kA Interrupt, Class: Midget, 4 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Paper, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: MERS-OTM15 250V 15A 1 1/2x13/32 MID FUSE 250VAC 15A FERRULE
Catalog Description: Fuse OTM - Midget - Fast-Acting 250VAC 15A Ferrule Amp-Trap®
OTM15 Application
For supplemental protection of circuits up to 250 VAC and 10 kAOTM15 Item Features
- Low cost and fully rated for economy without compromise
- Tin-plated copper contact
- Can be used with UltraSafe fuse holders
OTM15 Standards
RoHS Compliant|UL File No. E33925|C22.2 No. 248.14SKU #2397026Part Number #OTM15UNSPSC39121609UPC00782001705121
Image provided may only be a representation of final product and may include optional equipment
