Part Number # OTM5
SKU # 32253
Image Disclaimers Message
Brand: Mersen
OTM5

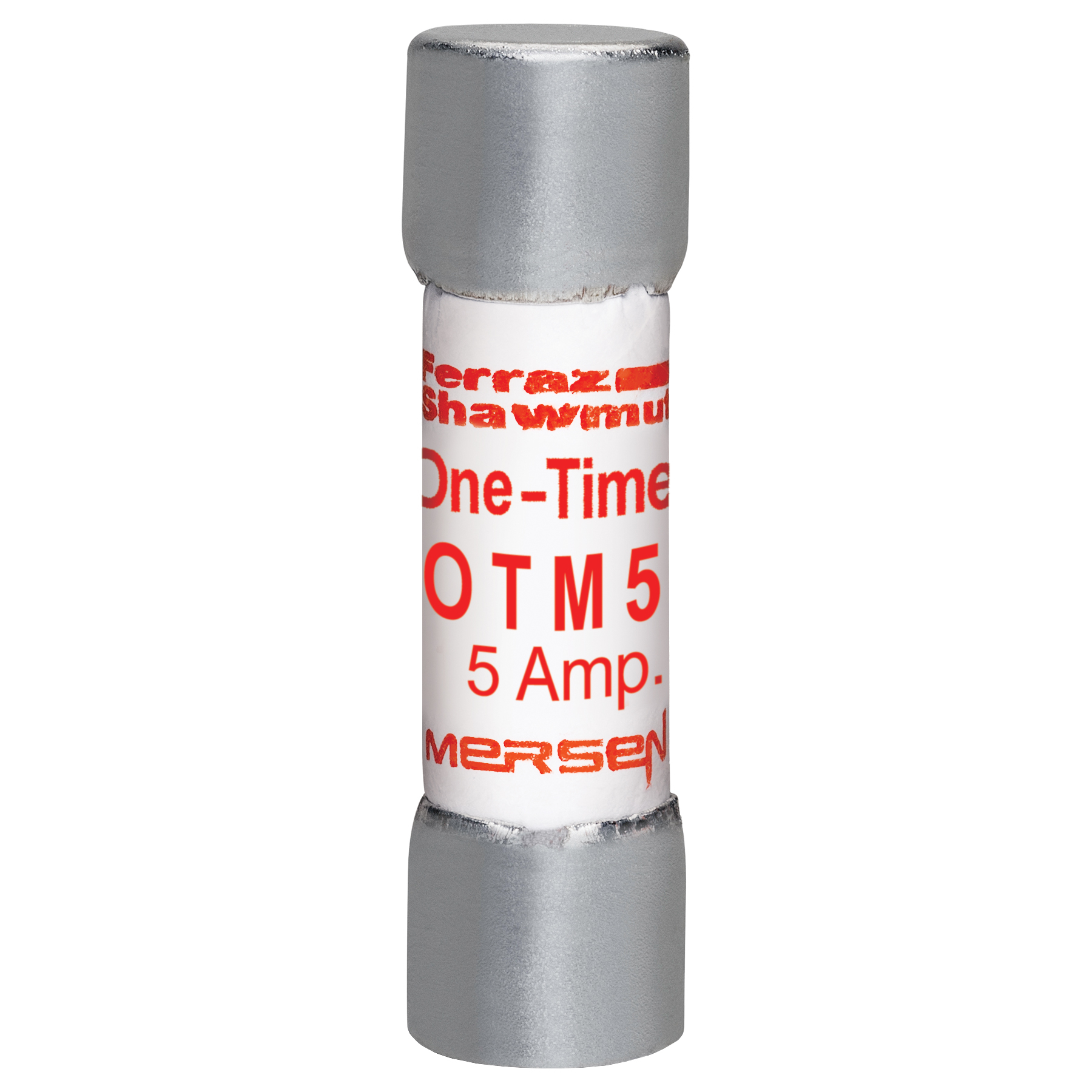

Mersen OTM5 Fast Acting Fuse
Part Number # OTM5
SKU # 32253
$77.00 / 10Each
Typical price:$184.32 / Each
Mersen OTM5 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | OTM5 |
| SKU #: | 32253 |
| Amperage Rating: | 5, 5 A |
| Body Type: | Cylindrical |
| Class: | Midget |
| Interrupt Rating: | 10, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 8, 8 s |
| Series: | OTM |
| Terminal Type: | Ferrule |
| Type: | Low Voltage |
| Country of origin: | MX |
| Material: | Paper |
| Mounting type: | Clip |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121609 |
| UPC: | 00782001705053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.00 / 10Each
Typical price:$184.32 / Each
Quantity:
- Mersen Fast Acting Fuse, Low Voltage, Series: OTM, Rejection/Non-Rejection: Non-Rejection, 5 A, 250 V AC, 10 kA Interrupt, Class: Midget, 8 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Paper, 13/32 in Dia x 1-1/2 in L Body Size
OTM5 Application
For supplemental protection of circuits up to 250 VAC and 10 kAOTM5 Item Features
- Low cost and fully rated for economy without compromise
- Tin-plated copper contact
- Can be used with UltraSafe fuse holders
OTM5 Standards
RoHS Compliant|UL File No. E33925|C22.2 No. 248.14SKU #32253Part Number #OTM5UNSPSC39121609UPC00782001705053
