STP480D07M

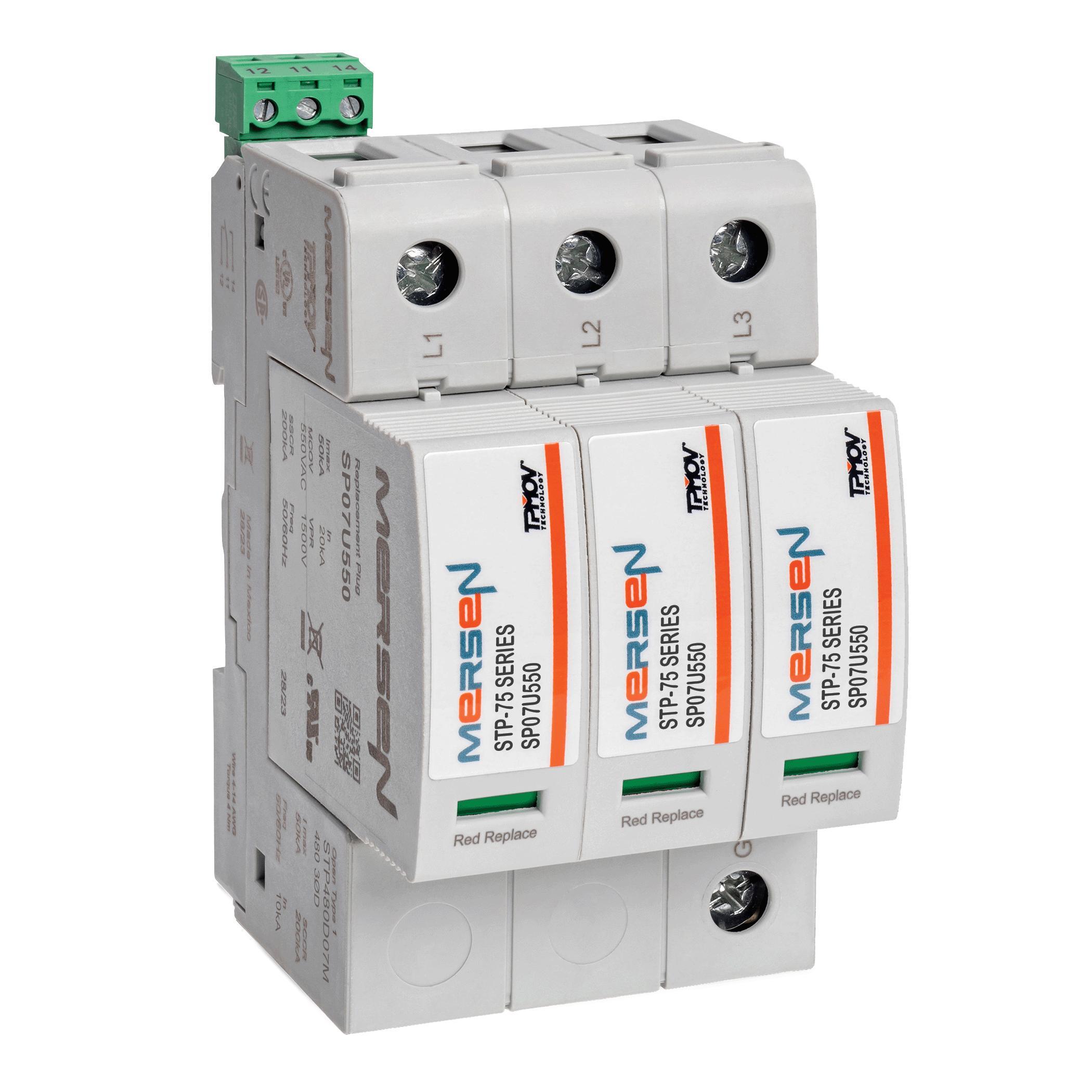

Mersen STP480D07M Pluggable Ac Surge Protective Device
Part Number # STP480D07M
SKU # 2352016
$311.23 / Each
Typical price:$1147.34 / Each
Mersen STP480D07M Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STP480D07M |
| SKU #: | 2352016 |
| Dimensions: | 4.19 in L x 2.07 in W x 2.81 in H |
| Electrical Ratings: | 480 VAC |
| Enclosure Type: | IP20 |
| Environmental Conditions: | -40 to 85 deg C Operating/Storage |
| Frequency Rating: | 50, 60 Hz |
| Indicator Type: | Microswitch |
| Modes of Protection: | L-L |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Peak Surge Current: | 75 kA |
| Phase: | 3 |
| Response Time: | <25 ns |
| Series: | STP |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Box |
| Type: | Type 1 |
| Country of origin: | MX |
| Material: | Polyethelene Terphthalate |
| Mounting type: | DIN Rail |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121610 |
| UPC: | 00782001477790 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.23 / Each
Typical price:$1147.34 / Each
Quantity:
Mersen STP480D07M Pluggable Ac Surge Protective Device
Brand: Mersen
Part Number: STP480D07M
Additional Description: MERS-STP480D07M STP T1 75kA 480V DELTA ALM
STP480D07M Application
Used for control panels, factory automation installation, programmable logic controllers, and other industrial applicationsSTP480D07M Includes
Audible Alarm, Form C Dry ContactSTP480D07M Item Features
- Featuring a fail-safe self-protected design, visual indicator and a small footprint
- A remote indicator option provides status to critical control circuitry
- The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
- Easy installation or retrofit
- Visual indicator
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
STP480D07M Standards
ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793|ANSI/IEEE C62.41.1, C62.41.2, C62.45|RoHS CompliantSTP480D07M Warranty
2 YearsSKU #2352016Part Number #STP480D07MUNSPSC39121610UPC00782001477790
