Part #:STP480Y07M
SKU #: 2352017
$248.23/EA
Key Features
Part #:STP480Y07M
SKU #: 2352017
Brand: Mersen
Dimensions: 4.19 in L x 2.07 in W x 2.81 in H
Electrical Ratings: 277, 480 VAC
Enclosure Type: IP20
Environmental Conditions: -40 to 85 deg C Operating/Storage
Frequency Rating: 50, 60 Hz
$248.23/EA
- Featuring a fail-safe self-protected design, visual indicator and a small footprint
- A remote indicator option provides status to critical control circuitry
- The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
- Easy installation or retrofit
- Visual indicator
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
Specifications
Brand: Mersen
Dimensions: 4.19 in L x 2.07 in W x 2.81 in H
Electrical Ratings: 277, 480 VAC
Enclosure Type: IP20
Environmental Conditions: -40 to 85 deg C Operating/Storage
Frequency Rating: 50, 60 Hz
Indicator Type: Microswitch
Modes of Protection: L-N
Number of Poles: 3
Number of Wires: 4
Peak Surge Current: 75 kA
Phase: 3
Response Time: <25 ns
Series: STP
Short Circuit Current Rating (kA): 200 kA
Terminal Type: Box
Type: Type 1
Material: Polyethelene Terphthalate
Mounting type: DIN Rail
UNSPSC: 39121634
UPC: 00782001477820

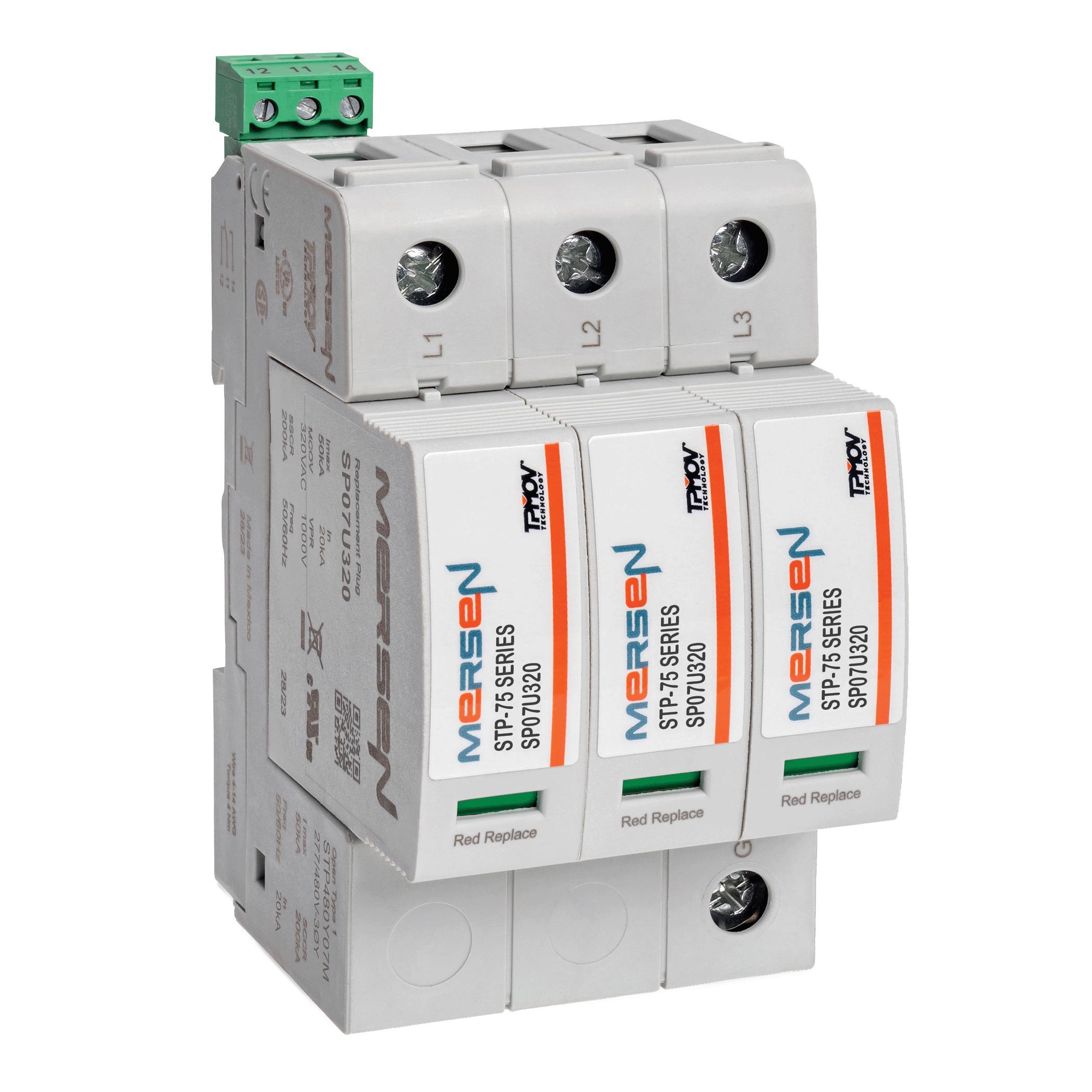

Mersen STP480Y07M Pluggable Ac Surge Protective Device
Additional Description: MERS-STP480Y07M STP T1 75kA 480Y/277V ALM
