Brand: Mersen
STXP240S10

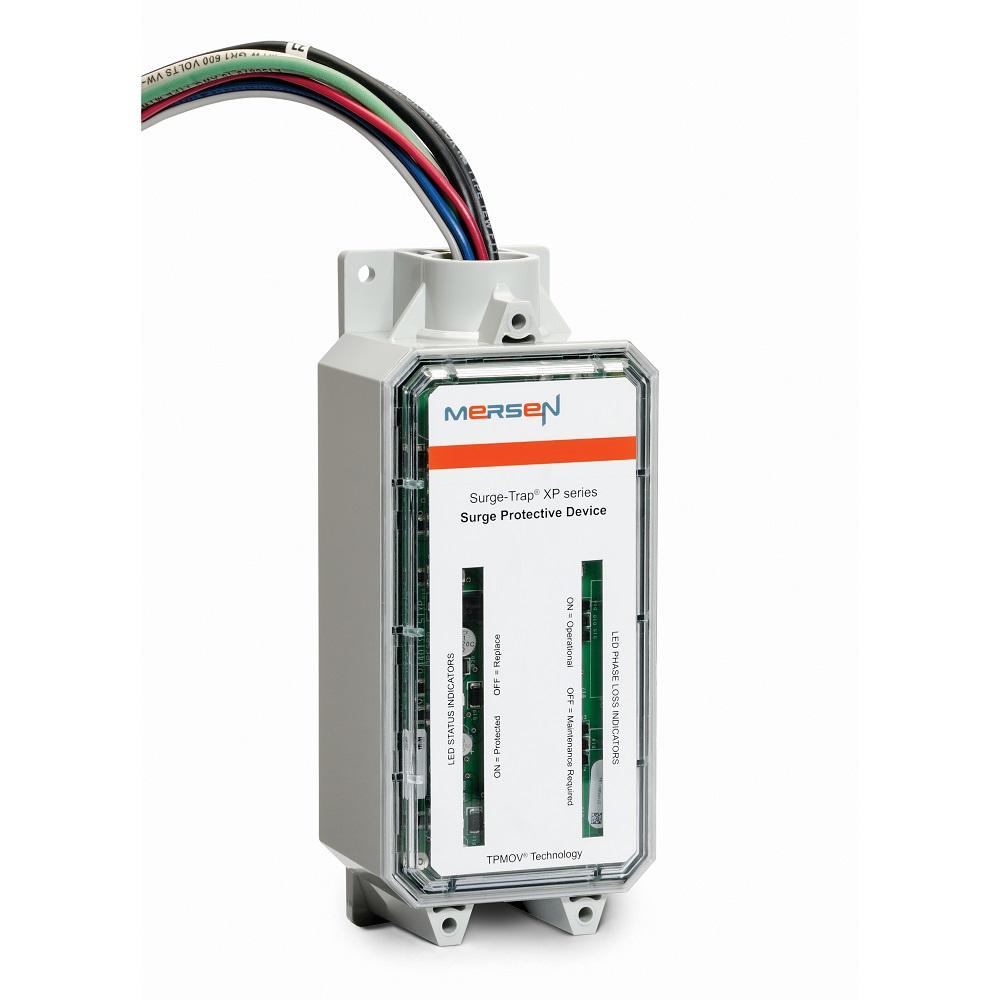

Mersen STXP240S10 Surge Protective Device
Part Number # STXP240S10
SKU # 2403574
$687.29 / Each
Typical price:$2533.62 / Each
Mersen STXP240S10 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STXP240S10 |
| SKU #: | 2403574 |
| Dimensions: | 3.13 in W |
| Electrical Ratings: | 120/240 V AC, 120/240 VAC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | LED |
| Modes of Protection: | L-G/L-L/L-N/N-G |
| Number of Wires: | 3 |
| Peak Surge Current: | 100 kA |
| Series: | STXP |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Pre-Wire |
| Type: | Split Phase |
| Country of origin: | MX |
| Material: | Aluminum/Polycarbonate |
| Mounting type: | Panel/Wall |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121610 |
| UPC: | 00782001470470 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$687.29 / Each
Typical price:$2533.62 / Each
Quantity:
- Mersen Surge Protective Device, Split Phase, Series: STXP, 120/240 V AC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, LED Indicator, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 4X Enclosure, Panel/Wall Mounting, Pre-Wire Terminal, Aluminum/Polycarbonate, 3.13 in W Dimensions
STXP240S10 Application
For indoor/outdoor and type 1 or 2 SPD applicationsSTXP240S10 Item Features
- Designed with the industry leading MERSEN TPMOV technology (internally fused)
- Enhanced 100 kA surge capacity for longer life and higher single impulse withstand
- LED status indicator (ON = Good, OFF = Replace) LED phase loss indicators (ON = Operational, OFF = maintenance Required)
- NEMA 4X enclosure for outdoor or indoor use
- Mounting hub and mounting feet for installation flexibility
- Pre-wired with 3 ft leads for easy installation
STXP240S10 Standards
RoHS Compliant|ANSI/UL 1449 File No. E210793|CSA C22.2 Class 9091-02 File No. 162842|ANSI/IEEE C62.41.1, C62.41.2, C62.45|UL96A|UL94-5VA Flammability RatingSKU #2403574Part Number #STXP240S10UNSPSC39121610UPC00782001470470
