Brand: Mersen

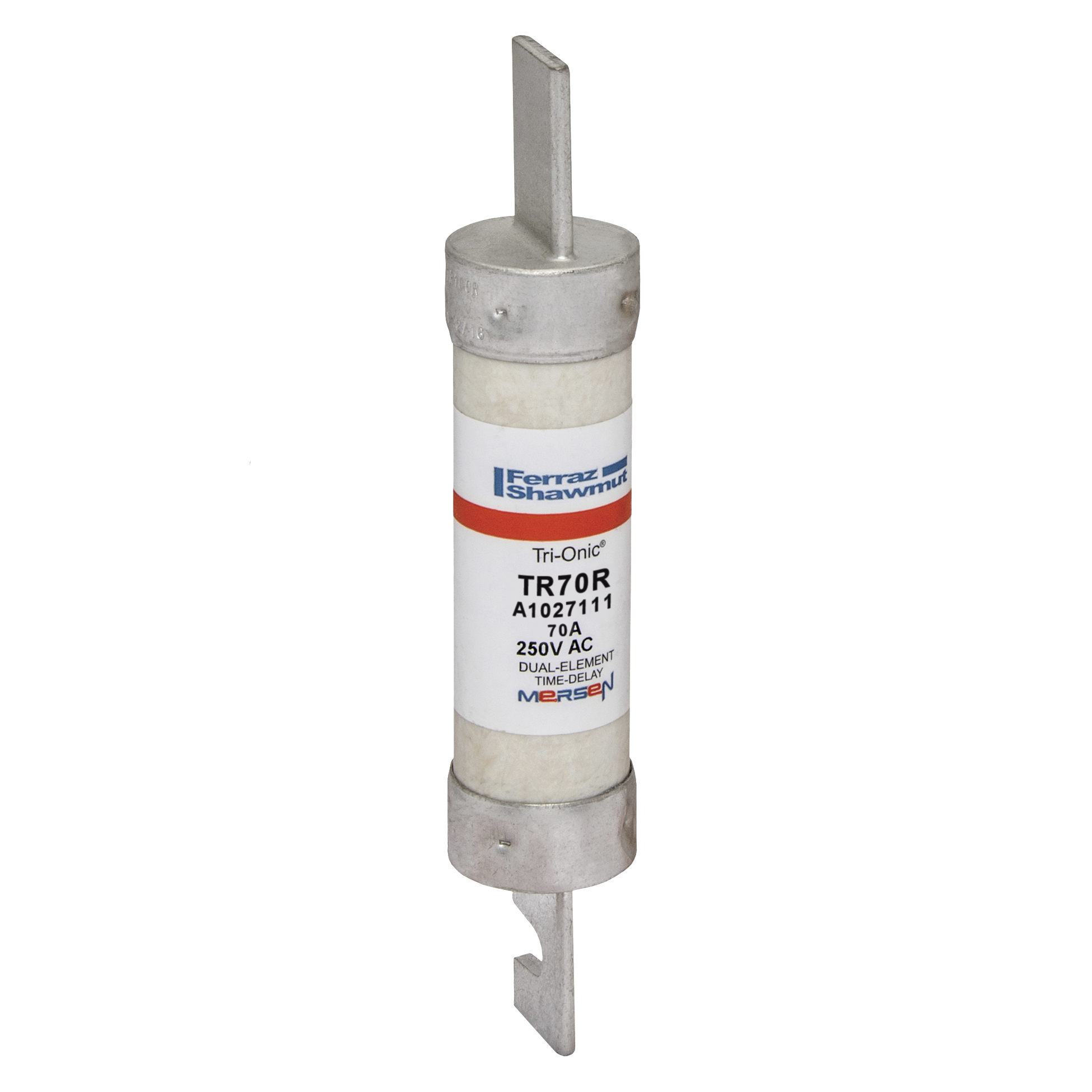

Mersen TR70R Tri-Onic Time Delay Fuse
Image Disclaimers Message
Brand: Mersen
Mersen TR70R Tri-Onic Time Delay Fuse
Brand: Mersen
Mersen TR70R Tri-Onic Time Delay Fuse
Part #:TR70R
SKU #: 32304
$242.70/5EA
Key Features
Part #:TR70R
SKU #: 32304
Brand: Mersen
Amperage Rating: 70, 70 A
Body Type: Cylindrical
Class: RK5
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200/20, 200/20 kA
$242.70/5EA
- Time delay for motor start-ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let-thru current
- Rejection style design prevents replacement errors when used with recommended fuse blocks
- Easy-to-read label for quick brand recognition and replacement
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching and high current limitation
- North American power fuses
- Copper, tin-plated copper contact
Specifications
Brand: Mersen
Amperage Rating: 70, 70 A
Body Type: Cylindrical
Class: RK5
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200/20, 200/20 kA
Rejection/Non-Rejection: Rejection
Series: TR-R
Terminal Type: Blade
Type: Current Limiting Low Voltage
Voltage Rating: 250, 250 VAC/VDC
Country of origin: MX
Material: Polyester
Mounting type: Clip
Manufacturer Name: MERSEN
UNSPSC: 39121604
UPC: 00782001747978
Mersen TR70R Tri-Onic Time Delay Fuse
Mersen Tri-Onic Time Delay Fuse, Current Limiting Low Voltage, Series: TR-R, Non-Indicating, Rejection, 70 A, 250 VAC/VDC, 200/20 kA Interrupt, Class: RK5, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polyester, 1-1/16 in Dia x 5-7/8 in L Body
Additional Description: MERS-TR70R 250V 70A 5 7/8x1 1/16 RK5 250VAC 250VDC 70A BLADE
Catalog Description: Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 70A Blade Tri-Onic®
Item FeaturesMotor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment Applications
Item Features
Item FeaturesRoHS Compliant|UL 248-12 File No. E2137|CSA C22.2 File No.248.12
