Part Number # E2038S
SKU # 2146428
Image Disclaimers Message
Belden E2038S Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | E2038S |
| SKU #: | 2146428 |
| Conductor Size: | 18 AWG |
| Conductor Type: | Bare Stranded Copper |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Number of Conductors: | 8 |
| Outside Diameter: | 1/4 in |
| Strands: | 26-Jul, 7/26 |
| Temperature Rating (Degrees F): | -20 to 75 deg C |
| Type: | Type CMR/CL3R Multi-Conductor Shielded |
| Country of origin: | US |
| Insulation material: | SR-PVC |
| Length: | 1000 ft |
| Manufacturer Name: | Prysmian |
| UNSPSC: | 26121642 |
| UPC: | 00079407832149 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.88 / Feet
Quantity:

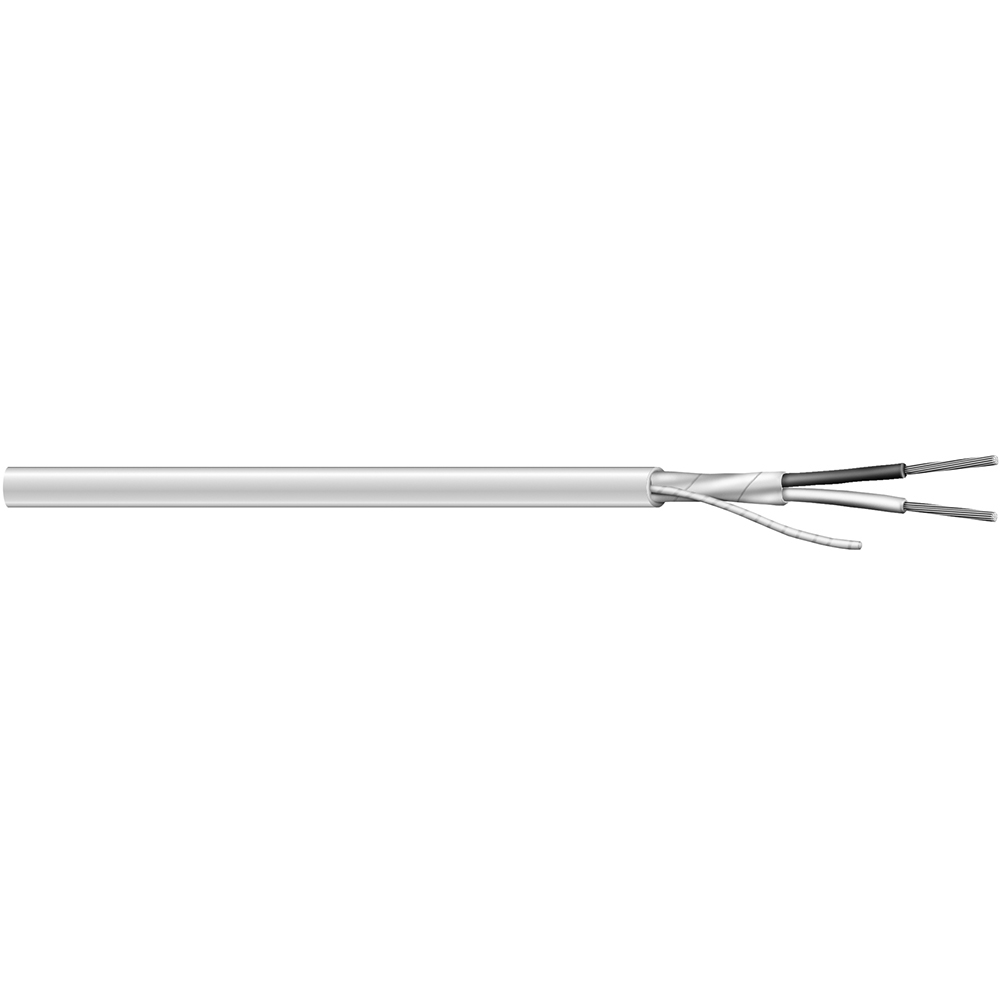

Omni Cable E2038S Riser Cable
Brand: Belden
Part Number: E2038S
General Cable Carol Riser Cable, Type CMR/CL3R Multi-Conductor Shielded, Reel Packaging, 300 VAC, 8 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 1/4 in OD, 1000 ft Length, 7/26 Strands, SR-PVC Insulation, PVC Jacket, Gray Jacket, -20 to 75 deg C
Additional Description: OMNI-CROL-E2038S-1000FT 8C/18 7/26BC OAS CMR/CL3R, 1000' Reel
Catalog Description: Multi-Conductor, Shielded, Riser NEC Type CMR and/or CL3R, 8C/18 7/26BC OAS CMR/CL3R, 1000' Reel
E2038S Application
For power limited control circuits, wiring of the following systems like intercom, security, audio and background musicE2038S Includes
RipcordE2038S Item Features
- Sequential footage marked to facilitate installation
- Premium grade, color coded PVC insulation and jacket
- Stranded tinned copper drain wire
- Overall Flexfoil polyester supported aluminum foil and stranded tinned copper drain wire shield
- Stranded/solid bare copper per ASTM B-3, B-8 and B-286
E2038S Standards
California State Fire Marshall Compliant|cULus Listed|NEC Article 725 Type CL3R|NEC Article 800 Type CMR|RoHS CompliantE2038S Warranty
1 year LimitedSKU #2146428Part Number #E2038SUNSPSC26121642UPC00079407832149
