Brand: Legrand-Pass & Seymour

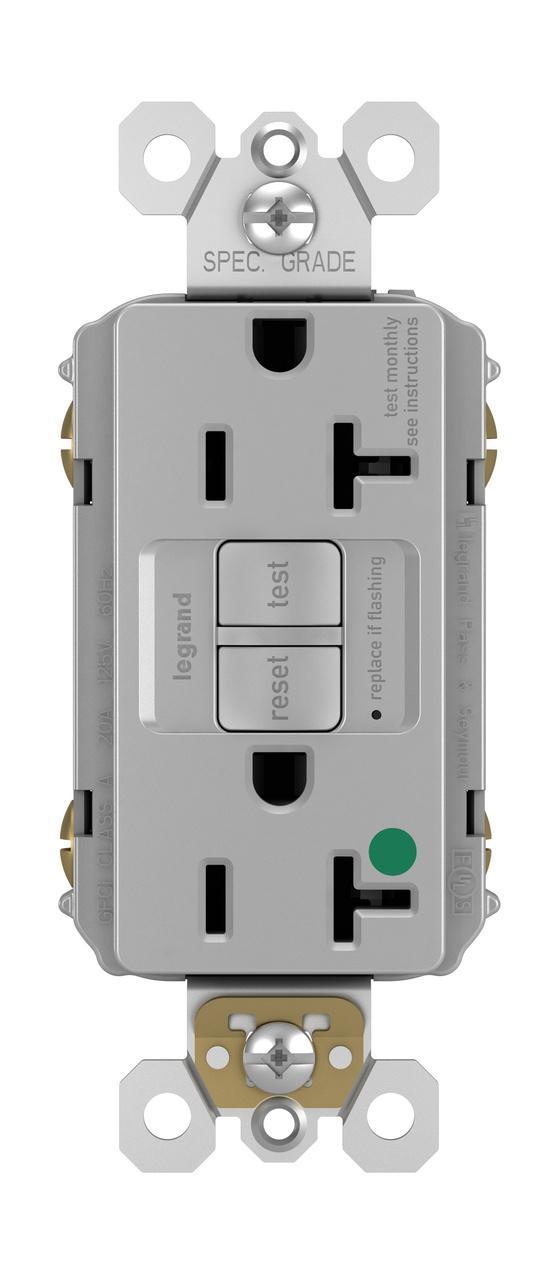

Pass & Seymour Legrand 2097-HGGRY
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Pass & Seymour Legrand 2097-HGGRY
Brand: Legrand-Pass & Seymour
Pass & Seymour Legrand 2097-HGGRY
Part #:2097-HGGRY
SKU #: 2434027
$39.51/EA
Key Features
Part #:2097-HGGRY
SKU #: 2434027
Brand: Legrand-Pass & Seymour
Amperage Rating: 20 A
Dimensions: 1.03 in L x 1.73 in W x 4.2 in H
Frequency Rating: 60 Hz
NEMA Rating: NEMA 5-20R
Number of Poles: 2
$39.51/EA
- Class A rated GFCI
- Auto-ground clip assures a positive ground to metal box
- Thinner than competitors GFCI receptacle, leaves more room for wires in the box
- It also has our proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
- Ground screw has back wire clamp for easy installation
- 10 kA short circuit rating, 102 to 132 VAC supply voltage range
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Extra long strap, button colors match the device face
- Trip-indicator light (red LED), two backwire holes per terminal
- Dual direction test and reset buttons
- Conducts an automatic test every three sec, ensuring its always ready to protect, if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
- 5 +/- 1 m trip threshold, 0.025 sec trip time, 20 A feed-through capacity, 4 to 6 mA trip level, withstands 1500 VAC minimum dielectric voltage, terminals identified in accordance with UL498 (hot, white, green)
- Nickel plated steel 8 to 32 terminal screw
- 95% maximum humidity, nylon face and body, 0.03 in brass contacts, galvanized steel mounting straps, thermoplastic tamper-resistant shutter
- One-piece, brass, triple-wipe power contacts for lasting retention
- https://www.youtube.com/watch?v=wWKZUjGeZcA
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 20 A
Dimensions: 1.03 in L x 1.73 in W x 4.2 in H
Frequency Rating: 60 Hz
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Series: 2097HG
Temperature Rating (Degrees F): -35 to 66 deg C
Terminal Type: Back/Side Wire/Screw
Type: Duplex Self-Test
Voltage Rating: 125 VAC
Color: Gray
Country of origin: CN
Material: Nylon/Thermoplastic
Manufacturer Name: Legrand
UNSPSC: 39121633
UPC: 00078500703571
Item FeaturesCommercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
Item Features
Item FeaturescULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|UL 498/943|UL 94 V-2 Flammability Rated
