Part Number # 2097-TR
SKU # 2451195
2097-TR
Pass & Seymour Legrand 2097-TR
Part Number # 2097-TR
SKU # 2451195
Legrand-Pass & Seymour 2097-TR Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 2097-TR |
| SKU #: | 2451195 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.03 in L x 1.73 in W x 4.2 in H |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -35 to 66 deg C |
| Terminal Type: | Back/Side Wire/Screw |
| Type: | Duplex Self-Test Tamper-Resistant |
| Country of origin: | CN |
| Material: | Nylon/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500703615 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand 2097-TR
Brand: Legrand-Pass & Seymour
Part Number: 2097-TR

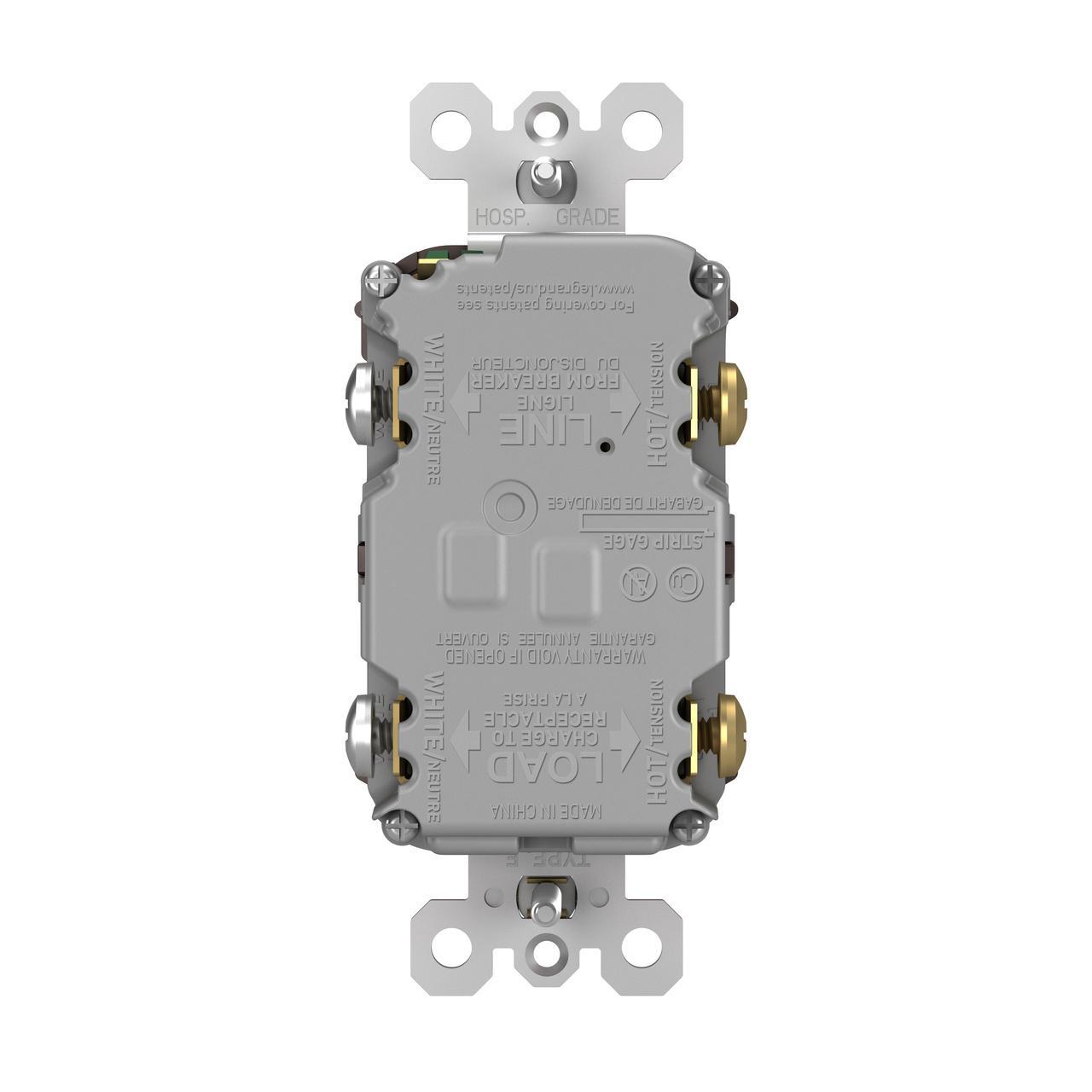

Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test Tamper-Resistant, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Brown, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Additional Description: PS -2097-TR RADIANT SELF TEST TR GFCI 20A 125V BR
Catalog Description: GFCI receptacles from the radiant Registered Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances and in commercial settings, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
2097-TR Application
Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications2097-TR Item Features
- Protects against shock caused by ground-fault occurrences
- Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
- Conducts an industry-leading automatic self-test every 3 seconds
- If the device ever fails, the indicator light flashes to signal it should be replaced
- Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected
- Extends GFCI protection to downstream outlets when used with feed-thru wiring configuration
- Note, Will cut power to face and downstream outlets if wired incorrectly
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with invisi-shutters for an invisible effect
- Replaces any standard receptacle with ease, in as little as 10 min
- Features durable, high-impact resistant thermoplastic construction
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
- 10kA short circuit rating
- 20 Afeed-thru capacity
- https://www.youtube.com/watch?v=CjpgAk7vct0
2097-TR Standards
cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|NEC Certified|UL 498/943|UL 94 V-2 Flammability RatedSKU #2451195Part Number #2097-TRUNSPSC39121406UPC00078500703615
Image provided may only be a representation of final product and may include optional equipment
