26W49
Pass & Seymour Legrand 26W49
Part Number # 26W49
SKU # 2462420
Legrand-Pass & Seymour 26W49 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 26W49 |
| SKU #: | 2462420 |
| Cord Diameter: | 0.475 to 0.72 in |
| Dimensions: | 2.29 in Dia x 3.1 in L |
| Enclosure: | NEMA 4/4X/12/6/6P/IP67 |
| NEMA Rating: | NEMA L7-20P |
| Series: | 26 Series |
| UNSPSC: | 39121402 |
| UPC: | 00078500703321 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand 26W49
Brand: Legrand-Pass & Seymour
Part Number: 26W49

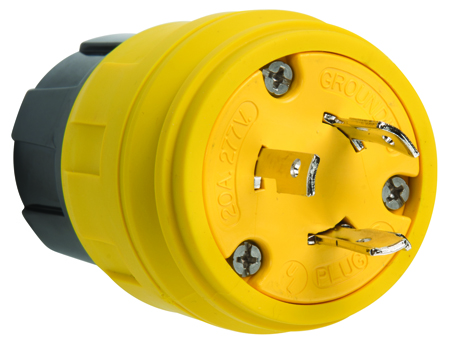

Pass & Seymour Turnlok Locking Plug, Watertight, Series: 26 Series, 277 V AC, 20 A, 2 Pole, 3 Wires, NEMA L7-20P NEMA Rating, NEMA 4/4X/12/6/6P/IP67 Enclosure, 0.475 to 0.72 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Rubber, Yellow, 2.29 in Dia x 3.1 in L Dimensions
Additional Description: PS -26W49 TURNLOK PLUG IP67 20A 277V L720P
Catalog Description: Locking Watertight Plug, 20amp 277volt, NEMA Configuration L7-20, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P and IP67 rated.
26W49 Application
Food and Beverage, Pulp and Paper Mills, Mines, Refrigeration, Petrochemical, Water/Waste Water, Shipbuilding and Temporary Power Applications26W49 Item Features
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather
- Nickel-Plated blades and contacts for long lasting, superior corrosion resistance
- Multipoint sealing system provides environmental protection
- Devices resist high-pressure hose down of 1,500 psi
- Color coded sealing bushings provided for large range of cord diameters
- Large ribs on body for a superior grip when mating
26W49 Standards
ANSI Specified|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 42|ECCN EAR99|NEMA WD-1/WD-6 Rated|UL 498SKU #2462420Part Number #26W49UNSPSC39121402UPC00078500703321
Image provided may only be a representation of final product and may include optional equipment
