Part Number # 26W75
SKU # 2422988
Image provided may only be a representation of
final product and may include optional equipment
26W75
Pass & Seymour Legrand 26W75
Part Number # 26W75
SKU # 2422988
Legrand-Pass & Seymour 26W75 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 26W75 |
| SKU #: | 2422988 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 0.56 to 0.775 in |
| Dimensions: | 2.29 in Dia x 3.1 in L |
| Enclosure: | NEMA 4/4X/12/6/6P/IP67 |
| NEMA Rating: | NEMA L15-20P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | 26 Series |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | Watertight |
| Country of origin: | US |
| Material: | Rubber |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121402 |
| UPC: | 00078500703355 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand 26W75
Brand: Legrand-Pass & Seymour
Part Number: 26W75

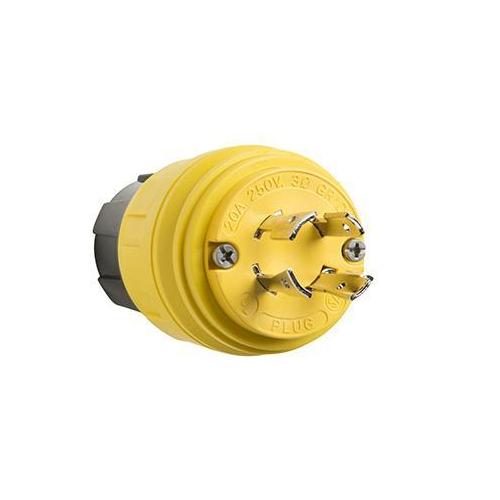

Pass & Seymour® Turnlok® Locking Plug, Watertight, Series: 26 Series, 250 VAC, 20 A, 3 Pole, 4 Wires, NEMA L15-20P NEMA Rating, Commercial Grade, NEMA 4/4X/12/6/6P/IP67 Enclosure, 0.56 to 0.775 in Diameter Cord, -40 to 60 deg C, Rubber, Yellow, 2.29 in Dia x 3.1 in L Dimensions
Additional Description: PS -26W75 TL PLUG IP67 20A 3PH 250V L1520P
Catalog Description: Locking Watertight Plug, 20amp 3 250 volt, NEMA Configuration L15-20, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P and IP67 rated.
26W75 Application
Food and Beverage Processing, Pulp and Paper Mills, Water/Waste Water, Chemical Processing, Mining, Warehousing/Refrigeration, Temporary Power and Industrial Manufacturing Applications26W75 Item Features
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather
- Nickel-Plated blades and contacts for long lasting, superior corrosion resistance
- Devices resist high-pressure hose down of 1,500 psi
- Color coded sealing bushings provided for large range of cord diameters
- Large ribs on body for a superior grip when mating
26W75 Standards
ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 42M|ECCN: EAR99|UL 498SKU #2422988Part Number #26W75UNSPSC39121402UPC00078500703355
