Pass & Seymour Legrand 5262-WSP
Part Number # 5262-WSP
SKU # 2468308
5262-WSP
Pass & Seymour Legrand 5262-WSP
Part Number # 5262-WSP
SKU # 2468308
Legrand-Pass & Seymour 5262-WSP Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 5262-WSP |
| SKU #: | 2468308 |
| Dimensions: | 1.7 in L x 1.25 in W x 3.75 in H |
| Type: | Duplex Extra Heavy Duty Surge Protective TVSS |
| UNSPSC: | 39121406 |
| UPC: | 00785007193893 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand 5262-WSP
Brand: Legrand-Pass & Seymour
Part Number: 5262-WSP

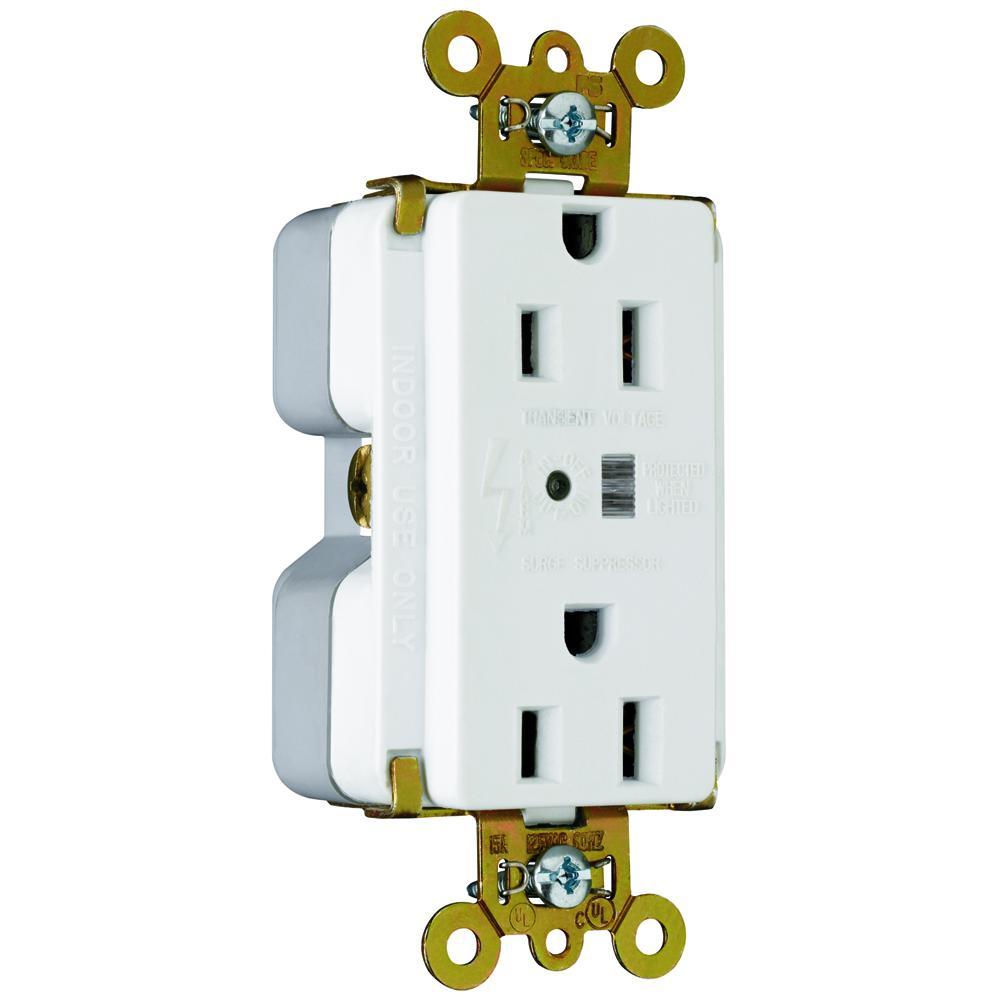

Pass & Seymour® Straight Blade Receptacle, Duplex Extra Heavy Duty Surge Protective TVSS, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -4 to 131 deg F, Back/Side Wire Terminal, Nylon, White, 1.7 in L x 1.25 in W x 3.75 in H Dimensions
Additional Description: PS -5262-WSP TVSS RECP 15A 125V ALARM WH
Catalog Description: Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator). Back and Side Wire, 15A, 125V.
5262-WSP Application
Commercial Applications5262-WSP Item Features
- Solid-state LED monitor has 25-year minimum life expectancy
- A high visibility, wide-angle lens indicates protection is in place
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Audible alarm alert of MOV damage
- Alarm able to be turned On/Off
- Wrap-around steel strap for structural integrity
- Auto-ground is standard, for easier installation
- Impact-resistant thermoplastic exterior resists impacts and scrapes
- Triple-wipe, copper-alloy contacts for superior, more dependable connection
- 3 17mm dual pack MOVs absorb up to 300 Jof excess energy in each leg (L-N, L-G, N-G) with 24,000 Acurrent handling capability for full, equal and symmetrical protection
- Protection response time in less than one nanosecond
- http://www.youtube.com/watch?v=KpbwLH782EI
5262-WSP Standards
ANSI/IEEE C62.41|ANSI/IEEE C62.45|CSA C22.2 No. 42|cUL Listed|ECCN: EAR99|UL 498|UL 1449|UL 94 V-2 Flammability RatedSKU #2468308Part Number #5262-WSPUNSPSC39121406UPC00785007193893
Image provided may only be a representation of final product and may include optional equipment
