Part Number # 5262CD-BK
SKU # 2401894
Image Disclaimers Message
5262CD-BK

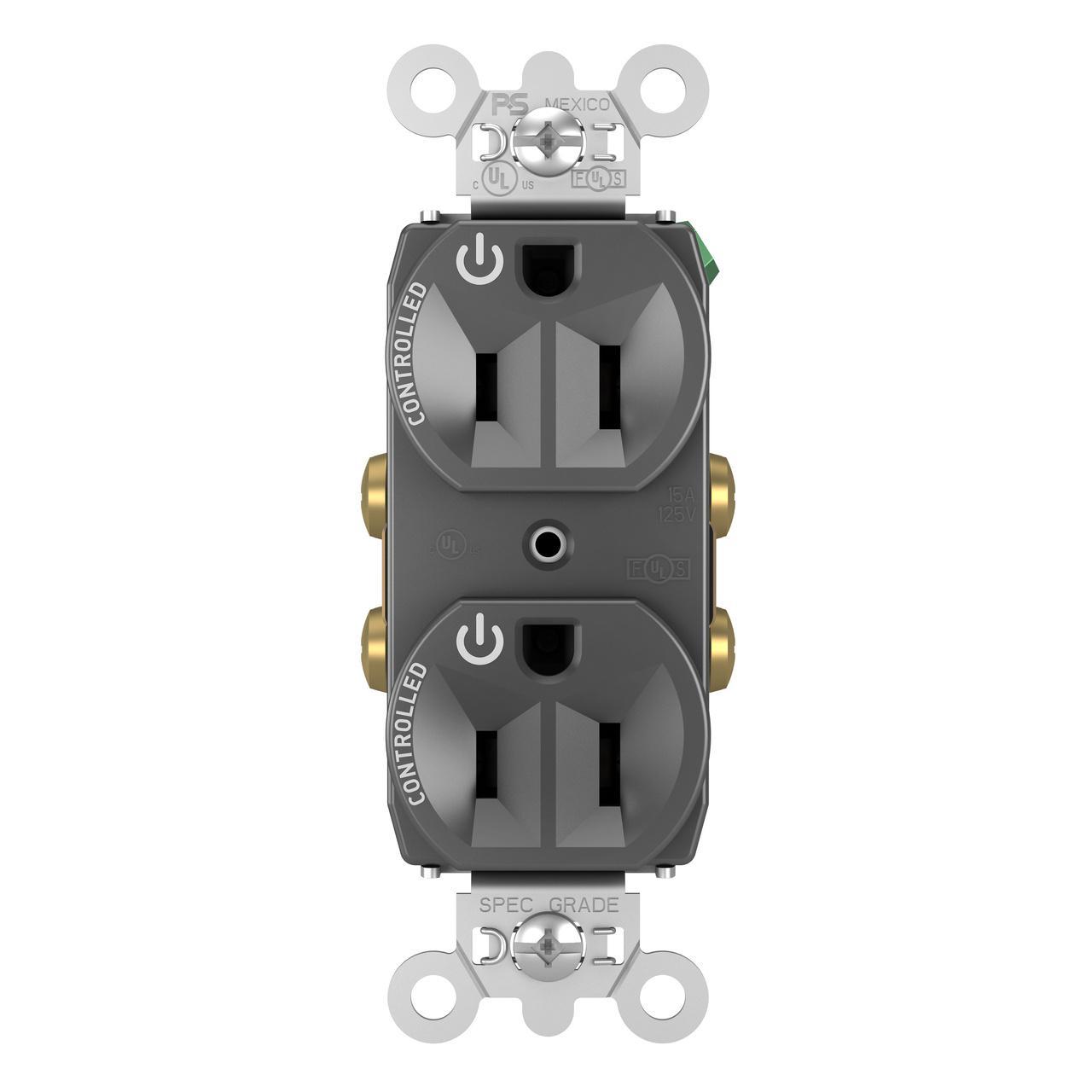

Pass & Seymour Legrand 5262CD-BK
Part Number # 5262CD-BK
SKU # 2401894
$7.40 / Each
Typical price:$9.25 / Each
Legrand-Pass & Seymour 5262CD-BK Key Features
Brand: | Legrand-Pass & Seymour |
---|---|
Part Number # : | 5262CD-BK |
SKU #: | 2401894 |
Amperage Rating: | 15 A |
Dimensions: | 0.78 in L x 1.322 in W x 3.281 in H |
NEMA Rating: | NEMA 5-15R |
Temperature Rating (Degrees F): | -40 to 60 deg C |
Terminal Type: | Back/Side Wire |
Type: | Decorator Duplex Dual Controlled Plug Load |
Color: | Black |
Country of origin: | MX |
Material: | Nylon/PVC |
Manufacturer Name: | Legrand |
UNSPSC: | 39121406 |
UPC: | 00078500703844 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.40 / Each
Typical price:$9.25 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Decorator Duplex Dual Controlled Plug Load, 125 V AC, 15 A, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/PVC, Black, 0.78 in L x 1.322 in W x 3.281 in H Dimensions
5262CD-BK Item Features
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
5262CD-BK Standards
CSA C22.2 No. 42|File No. LR16063|Federal Specification Specified|UL 498|File No. E140596SKU #2401894Part Number #5262CD-BKUNSPSC39121406UPC00078500703844
