Part Number # 5351-W
SKU # 2464010
Brand: Legrand-Pass & Seymour
5351-W
Pass & Seymour Legrand 5351-W
Part Number # 5351-W
SKU # 2464010
$20.74 / Each
Typical price:$20.75 / Each
Legrand-Pass & Seymour 5351-W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 5351-W |
| SKU #: | 2464010 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.3 in H x 1.32 in W x 1.08 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Grounding Heavy Duty Single |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007535150 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.74 / Each
Typical price:$20.75 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Grounding Heavy Duty Single, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.32 in W x 1.08 in D Dimensions
5351-W Item Features
- Auto-ground clip assures positive ground
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws
- Internal screw-pressure-plate side wire capability
- One-piece brass triple-wire power contacts for lasting retention
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
5351-W Standards
UL 498|CSA C22.2 No. 42SKU #2464010Part Number #5351-WUNSPSC39121406UPC00785007535150

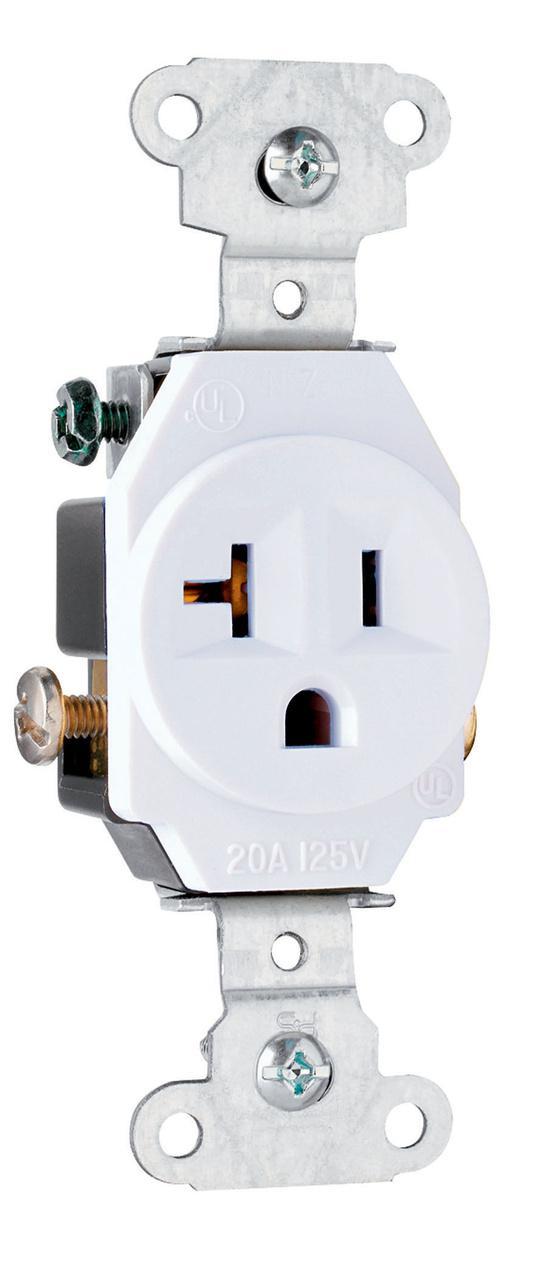

Image provided may only be a representation of final product and may include optional equipment
