Part Number # 5651-W
SKU # 2452391
Image Disclaimers Message
5651-W

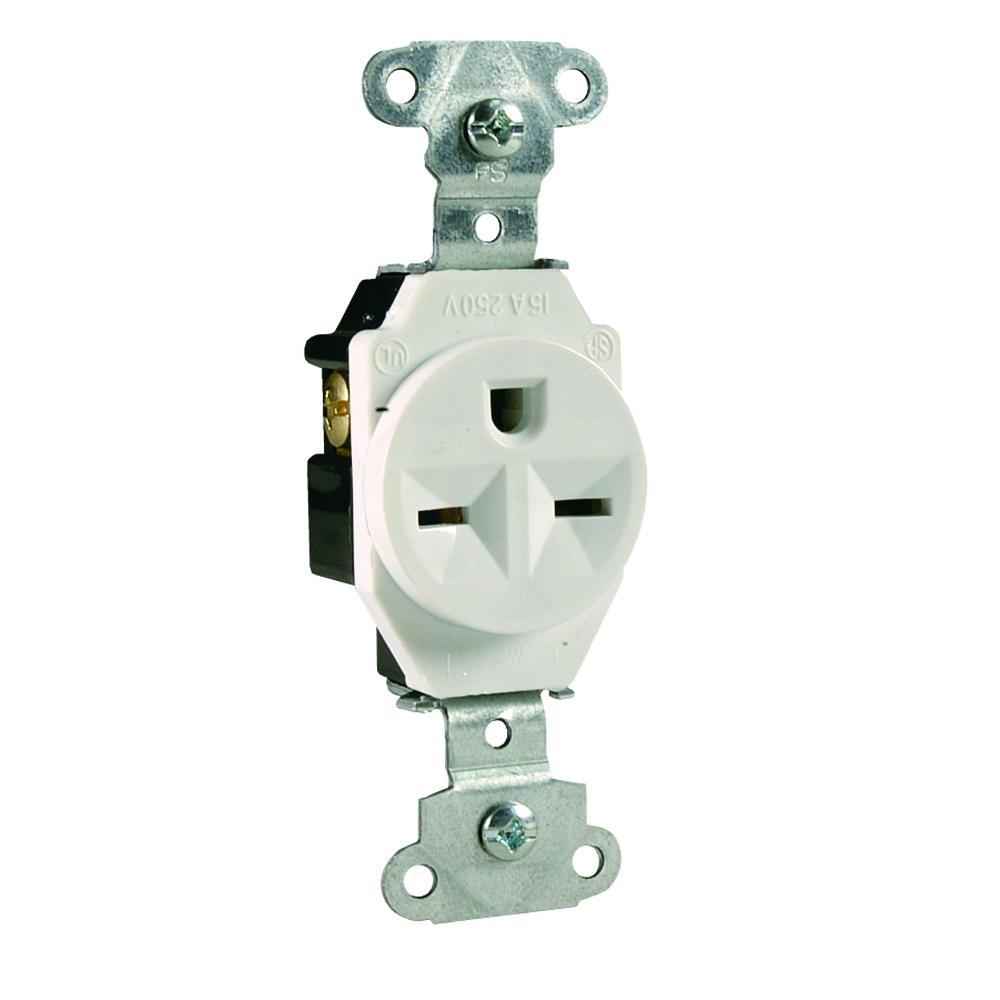

Pass & Seymour Legrand 5651-W
Part Number # 5651-W
SKU # 2452391
$11.34 / Each
Typical price:$14.19 / Each
Legrand-Pass & Seymour 5651-W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 5651-W |
| SKU #: | 2452391 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.32 in L x 1.08 in W x 3.68 in H |
| NEMA Rating: | NEMA 6-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Heavy Duty Single |
| Color: | White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007565133 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.34 / Each
Typical price:$14.19 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Heavy Duty Single, 250 V AC, 15 A, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 1.32 in L x 1.08 in W x 3.68 in H Dimensions
5651-W Application
Commercial Applications5651-W Item Features
- Auto-ground clip assures positive ground
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for increased wiring flexibility
- One-piece brass triple-wire power contacts for lasting retention
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
5651-W Standards
CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability RatedSKU #2452391Part Number #5651-WUNSPSC39121406UPC00785007565133
