Part Number # 67W49
SKU # 2462421
Brand: Legrand-Pass & Seymour
67W49
Pass & Seymour Legrand 67W49
Part Number # 67W49
SKU # 2462421
$146.41 / Each
Typical price:$183.07 / Each
Legrand-Pass & Seymour 67W49 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 67W49 |
| SKU #: | 2462421 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.69 in L |
| Enclosure: | NEMA 4X/6P/IP67 |
| NEMA Rating: | NEMA L7-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | 67 Series |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | Single Watertight |
| Country of origin: | US |
| Material: | Rubber/Thermoplastic Elastomer |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500703362 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$146.41 / Each
Typical price:$183.07 / Each
Quantity:

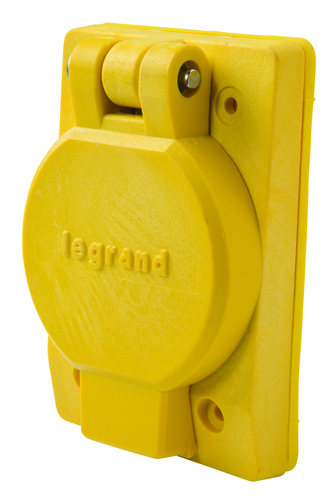

- Pass & Seymour Turnlok Locking Receptacle, Single Watertight, Series: 67 Series, 277 V AC, 20 A, 2 Pole, 3 Wires, NEMA L7-20R NEMA Rating, NEMA 4X/6P/IP67 Enclosure, -40 to 60 deg C, Rubber/Thermoplastic Elastomer, Yellow, 1.69 in L Dimensions
67W49 Application
Food, Beverage, Pulp, Paper Mills, Mines, Refrigeration, Petrochemical, Water/Waste Water, Shipbuilding and Temporary Power Applications67W49 Item Features
- Impact Resistant Valox lid, cover plate, and receptacle body withstand impacts, chemical and corrosion
- Spring loaded flip covers provide protection when device is not in use
- Stainless steel hinge spring and pin for corrosion resistance
67W49 Standards
ANSI Specified|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 42|ECCN EAR99|NEMA WD-1/WD-6 Rated|UL 498|UL 94 HB Flammability Rated|UL 94 V-0 Flammability Rated|UL 94 V-2 Flammability RatedSKU #2462421Part Number #67W49UNSPSC39121406UPC00078500703362
Image provided may only be a representation of final product and may include optional equipment
