Brand: Legrand-Pass & Seymour
CRB5262-W
Pass & Seymour Legrand CRB5262-W
Part Number # CRB5262-W
SKU # 2424748
$12.36 / Each
Legrand-Pass & Seymour CRB5262-W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | CRB5262-W |
| SKU #: | 2424748 |
| Amperage Rating: | 15 A |
| Dimensions: | 3.3 in H x 1.322 in W x 0.78 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex |
| Color: | White |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007210163 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.36 / Each
Quantity:

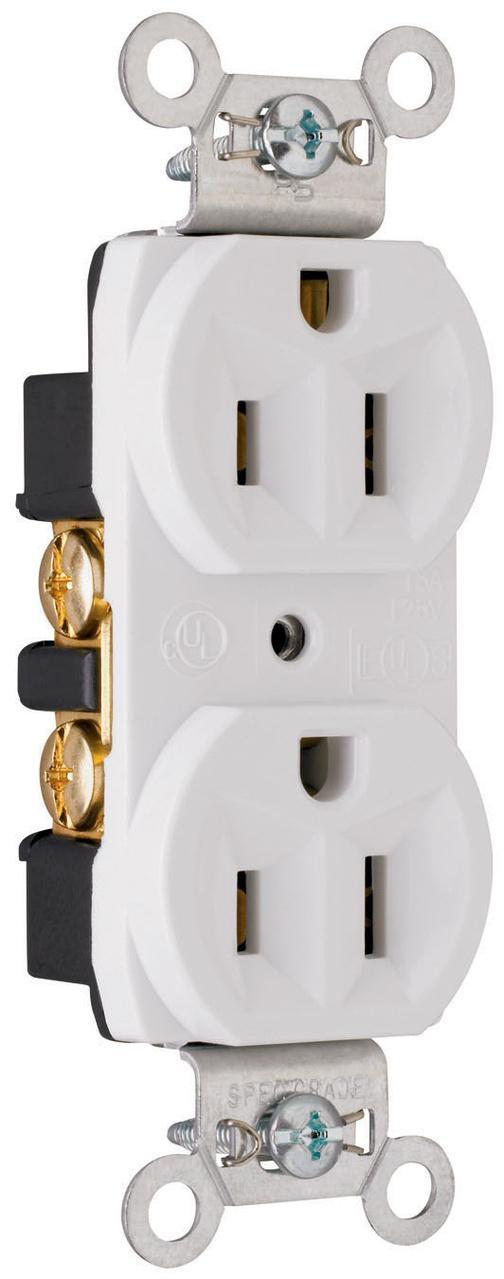

- Pass & Seymour Straight Blade Receptacle, Duplex, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.322 in W x 0.78 in D Dimensions
CRB5262-W Item Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
CRB5262-W Standards
UL 498|CSA C22.2 No. 42SKU #2424748Part Number #CRB5262-WUNSPSC39121406UPC00785007210163
