Part Number # IG8301
SKU # 2455951
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
IG8301
Pass & Seymour Legrand IG8301
Part Number # IG8301
SKU # 2455951
$47.49 / Each
Typical price:$69.26 / Each
Legrand-Pass & Seymour IG8301 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | IG8301 |
| SKU #: | 2455951 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.32 in L x 1.093 in W x 3.68 in H |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Heavy Duty Isolated Ground Single |
| Color: | Orange |
| Country of origin: | MX |
| Material: | Nylon/PVC |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007830460 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.49 / Each
Typical price:$69.26 / Each
Quantity:

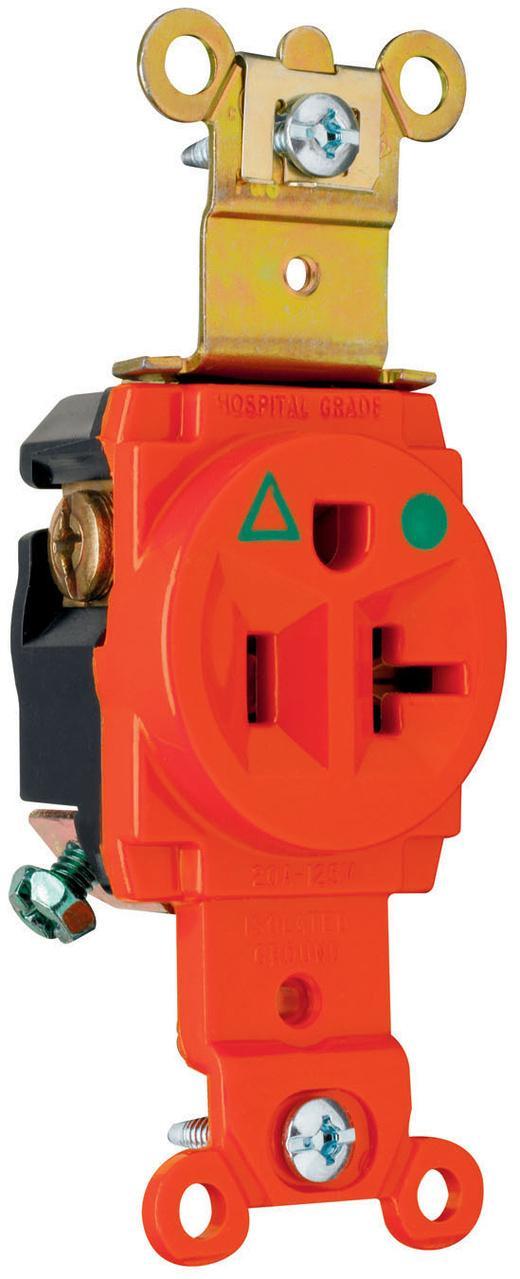

- Pass & Seymour Straight Blade Receptacle, Heavy Duty Isolated Ground Single, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/PVC, Orange, 1.32 in L x 1.093 in W x 3.68 in H Dimensions
IG8301 Application
Healthcare, Education, Commercial and Institutional ApplicationsIG8301 Item Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Side and internal screw-pressure-plate back wire capability with 14 - 10 AWG copper or copper-clad, solid or stranded wire
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
- https://www.youtube.com/watch?v=_SjD8max4i5
IG8301 Standards
CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability RatedSKU #2455951Part Number #IG8301UNSPSC39121406UPC00785007830460
