Brand: Legrand-Pass & Seymour
Pass & Seymour Legrand L1430-C
Part Number # L1430-C
SKU # 2417644
$88.54 / Each
Legrand-Pass & Seymour L1430-C Key Features
Brand: Legrand-Pass & Seymour
Part Number # L1430-C
SKU #2417644
Amperage Rating: 30 A
Cord Diameter: 0.39 to 1.15 in
Dimensions: 2.2 in Dia x 3.33 in L
Enclosure: IP20
Horsepower: 2 hp
NEMA Rating: NEMA L14-30R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screw
Voltage Rating: 125/250 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121421
UPC: 00785007143010
$88.54 / Each
Pass & Seymour Legrand L1430-C
Brand: Legrand-Pass & Seymour
Part Number: L1430-C

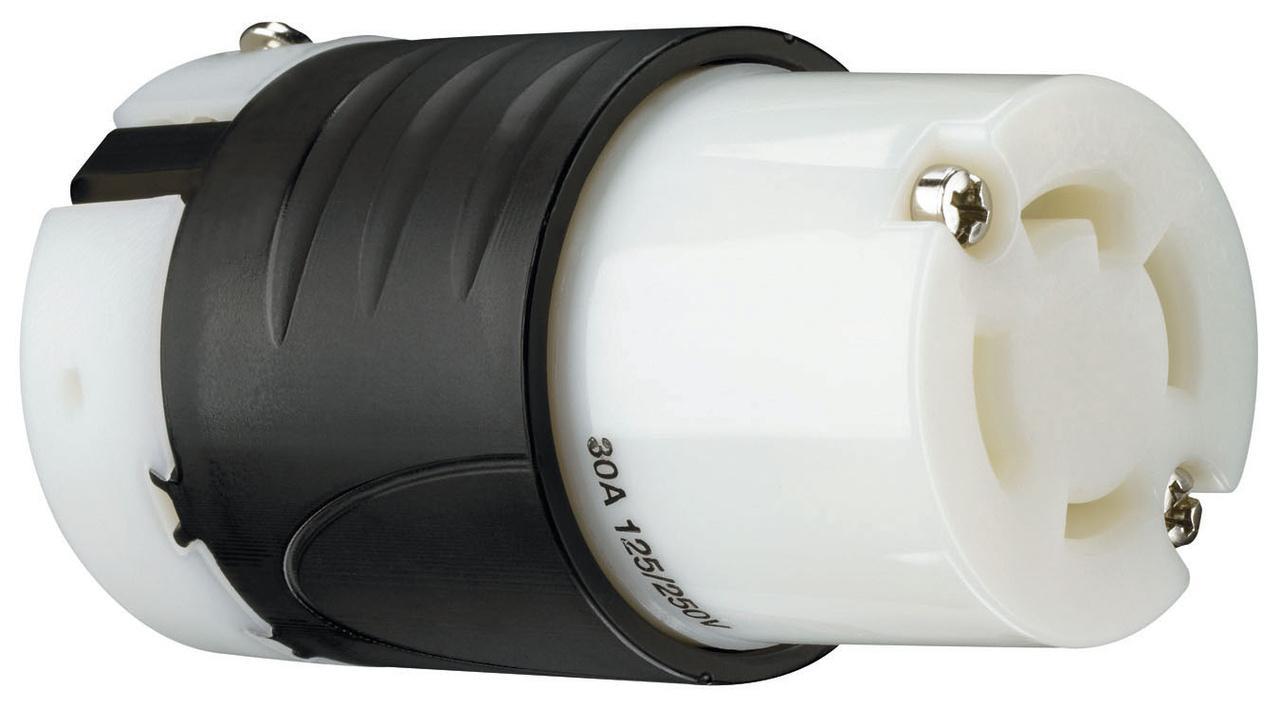

Pass & Seymour® Turnlok® Locking Connector, 125/250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L14-30R, Industrial Grade, IP20 Enclosure, 0.39 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.2 in Dia x 3.33 in L
Additional Description: PS -L1430-C TURNLOK CONNECTOR 4W 30A 125/250V
Catalog Description: Turnlok Registered Connector 4-Wire 30A 125/250V
L1430-C Application
Industrial ApplicationsL1430-C Item Features
- Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact and corrosion resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber
- 2200 VAC minimum dielectric strength voltage
- 18 to 10 AWG wire size
L1430-C Standards
CSA Certified|Federal Specification WC596|UL 498|UL94 V-2 Flammability RatingSKU #2417644Part Number #L1430-CUNSPSC39121421UPC00785007143010
