Part Number # L1520-C
SKU # 2429794
Image Disclaimers Message
L1520-C

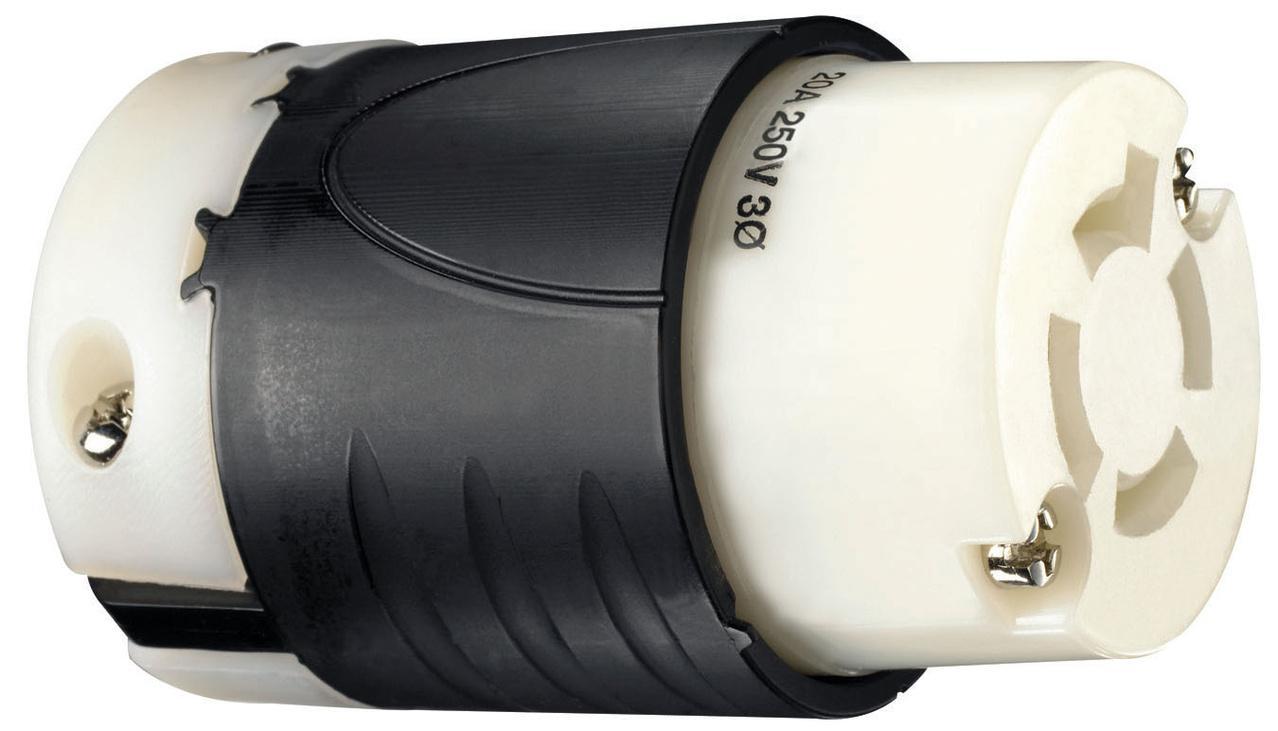

Pass & Seymour Legrand L1520-C
Part Number # L1520-C
SKU # 2429794
Legrand-Pass & Seymour L1520-C Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | L1520-C |
| SKU #: | 2429794 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 0.39 to 1.15 in |
| Dimensions: | 2.2 in Dia x 3.33 in L |
| Enclosure: | IP20 |
| Horsepower: | 3 hp |
| NEMA Rating: | NEMA L15-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121421 |
| UPC: | 00785007152012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand L1520-C
Brand: Legrand-Pass & Seymour
Part Number: L1520-C
Pass & Seymour® Turnlok® Locking Connector, 250 VAC, 20 A, 3 hp, 2 Pole, 3 Wires, NEMA L15-20R, Industrial Grade, IP20 Enclosure, 0.39 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.2 in Dia x 3.33 in L
Additional Description: PS -L1520-C TURNLOK CONNECTOR 4W 20A 3P 250V
Catalog Description:
Every component of these locking connectors are built to offer the lowest installed cost and maximum durability. Quick-threaded assembly screws install four times faster than cmpetitive products and backed-out screws come ready to wire. Rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy contacts are all features of this premium Turnlok L1520C 4-Wire 20A 3-Phase 250V connector.
L1520-C Application
Industrial ApplicationsL1520-C Item Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
L1520-C Standards
CSA Certified|Federal Specification WC596|UL 498|UL94 V-2 Flammability RatingSKU #2429794Part Number #L1520-CUNSPSC39121421UPC00785007152012
