PS100-SSAX

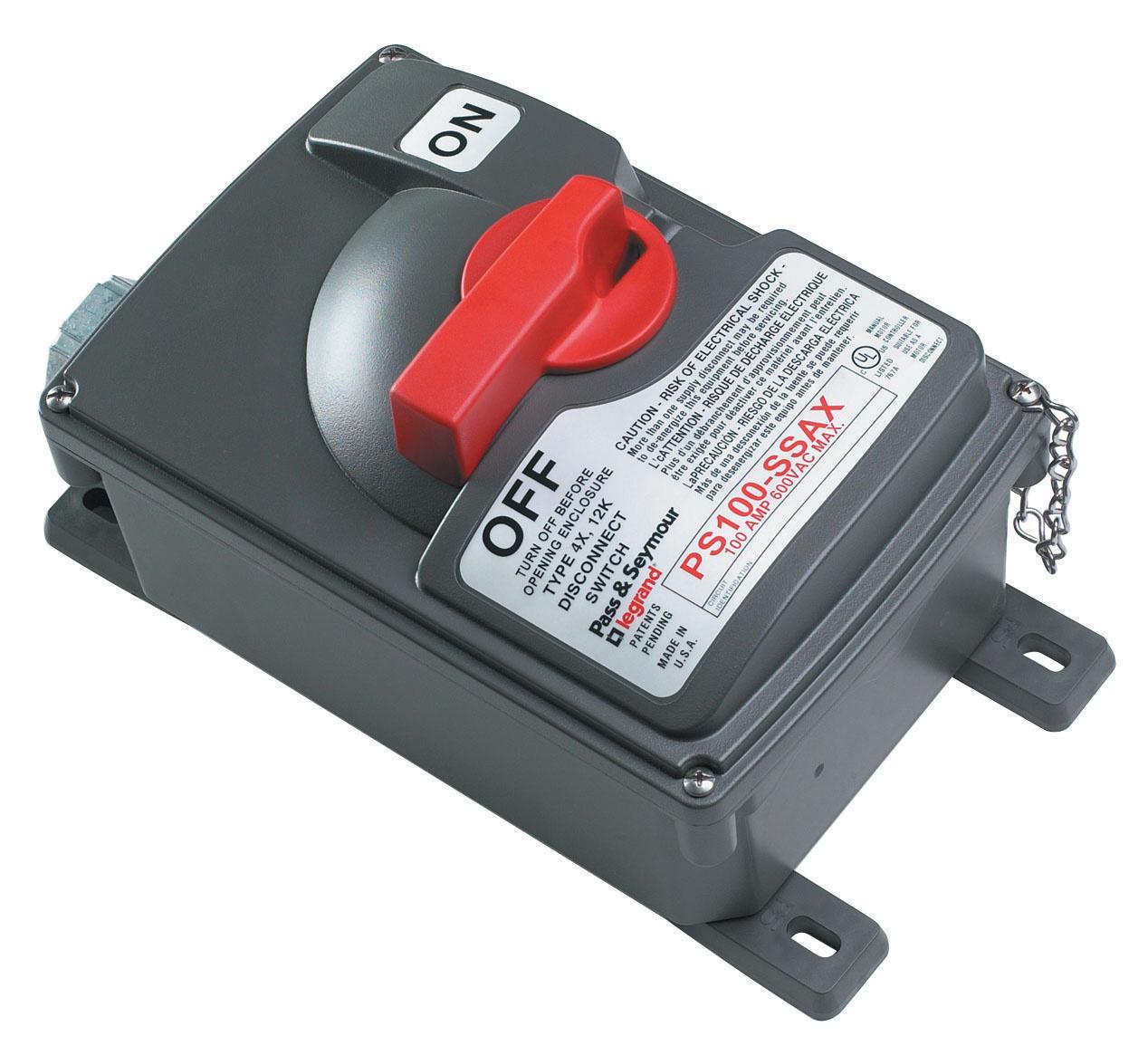

Pass & Seymour Legrand PS100-SSAX
Part Number # PS100-SSAX
SKU # 2391845
$760.63 / Each
Typical price:$1064.88 / Each
Legrand-Pass & Seymour PS100-SSAX Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS100-SSAX |
| SKU #: | 2391845 |
| Actuator Type: | Switch Handle |
| Amperage Rating: | 100 A |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 7.19 in L x 6.31 in W x 12.38 in H |
| Enclosure Type: | NEMA 4X/12K/IP67/IP69 |
| Frequency Rating: | 60 Hz |
| Horsepower: | 50 hp |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -50 to 60 deg C |
| Terminal Type: | Hardwired |
| Type: | Non-Fusible |
| Country of origin: | US |
| Material: | Valox® 357, Valox� 357 |
| Mounting type: | Channel/Strut |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122205 |
| UPC: | 00785007150230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$760.63 / Each
Typical price:$1064.88 / Each
Quantity:
- Pass & Seymour Flexcor Safety Switch, Non-Fusible, 600 V AC, 100 A, 50 hp, 60 Hz Frequency, 4 Pole, 1NO-1NC 1 Form A/1 Form B Contact Form, Switch Handle Actuator, NEMA 4X/12K/IP67/IP69 Enclosure, Channel/Strut Mounting, Hardwired Terminal, -50 to 60 deg C, 7.19 in L x 6.31 in W x 12.38 in H Dimensions, Valox 357
PS100-SSAX Application
Industrial ApplicationsPS100-SSAX Item Features
- Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage
- Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings
- Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse
- Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses
- Durable, stainless steel coverretaining chain makes installation and maintenance more convenient
- Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout provisions and provides plenty of grip for sure, easy operation
- Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle
- Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance
- Bottom and top wiring access options
- No unnecessary openings to compromise water resistance
- Top mount auxiliary contact enables additional control functions or signal lights
PS100-SSAX Standards
ARRA Compliant|Buy American Act Compliant|cUL Listed|CSA Certified|ECCN: EAR99|UL Listed|UL 94 5VA/V-0 Flammability Rated|UL 50SKU #2391845Part Number #PS100-SSAXUNSPSC39122205UPC00785007150230
