Part Number # PS40-MRSBG
SKU # 2461722
PS40-MRSBG

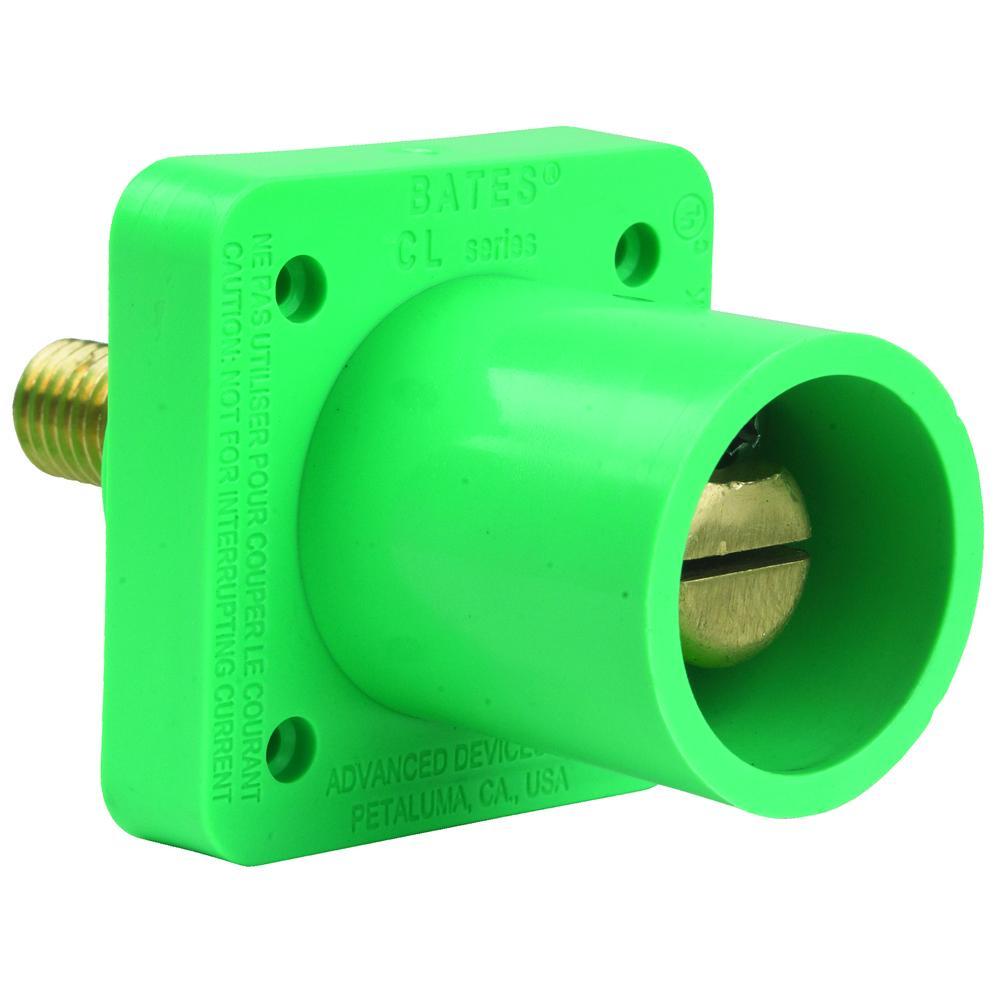

Pass & Seymour Legrand PS40-MRSBG
Part Number # PS40-MRSBG
SKU # 2461722
$50.47 / Each
Typical price:$58.90 / Each
Legrand-Pass & Seymour PS40-MRSBG Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS40-MRSBG |
| SKU #: | 2461722 |
| Amperage Rating: | 400 A |
| Dimensions: | 1-1/8 in D |
| NEMA Rating: | NEMA 3R/4 |
| Series: | 16 Series |
| Specifications: | Type SC/SCE/SCT/W Individual Copper Wire Conductor |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | Cam-Type Male |
| Wire Size: | 2 to 4/0 AWG |
| Connection type: | Threaded/Stud |
| Contact material: | Brass |
| Country of origin: | MX |
| Housing material: | Nylon |
| Mounting type: | Panel |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007308242 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$50.47 / Each
Typical price:$58.90 / Each
Quantity:
- Pass & Seymour Single Pole Receptacle, Cam-Type Male, Series: 16 Series, 600 V AC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, Brass Contact, Nylon Housing Material, NEMA 3R/4 NEMA Rating, Panel Mounting, Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor, -40 to 75 deg C, Green, 1-1/8 in D Dimensions
PS40-MRSBG Application
For movie and other entertainment production, stage productions, fairs and carnivals, theme parks, concert venues, arenas and convention centers, mining and construction, shipping, airports, many other portable/temporary and commercial/industrial applicationsPS40-MRSBG Item Features
- Nylon housing provides outstanding impact and chemical resistance
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws (available on double set screw version only) allow greater termination torque
PS40-MRSBG Standards
cUL Listed|cULus Listed|ECCN: EAR99|UL Listed|UL 94 V-2 Flammability RatedSKU #2461722Part Number #PS40-MRSBGUNSPSC39121406UPC00785007308242
Image provided may only be a representation of final product and may include optional equipment
