Part Number # PS5262
SKU # 2457155
PS5262
Pass & Seymour Legrand PS5262
Part Number # PS5262
SKU # 2457155
Legrand-Pass & Seymour PS5262 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS5262 |
| SKU #: | 2457155 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.322 in L x 0.78 in W x 3.281 in H |
| Enclosure: | NEMA WD-1/WD-6 |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex Heavy Duty |
| Country of origin: | MX |
| Material: | Nylon/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007859874 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand PS5262
Brand: Legrand-Pass & Seymour
Part Number: PS5262
Pass & Seymour® Straight Blade Receptacle, Duplex Heavy Duty, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, Brown, 1.322 in L x 0.78 in W x 3.281 in H Dimensions
Additional Description: PS -PS5262 HEAVY DUTY DUP RECEPT 15A 125VAC BN
Catalog Description: Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 15A 125V
PS5262 Application
Healthcare, Education, Commercial and Institutional ApplicationsPS5262 Item Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept 14 and 10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
PS5262 Standards
CSA C22.2 No. 42 File No. LR16063|cULus Listed|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability RatedSKU #2457155Part Number #PS5262UNSPSC39121406UPC00785007859874

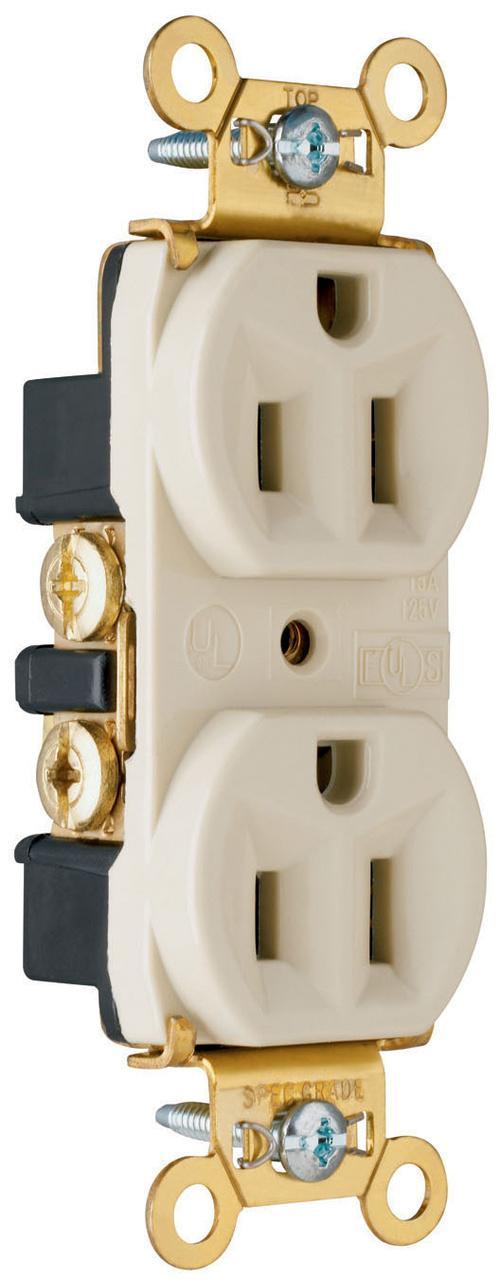

Image provided may only be a representation of final product and may include optional equipment
