Part Number # PS8111-20W
SKU # 2390119
Image Disclaimers Message
PS8111-20W

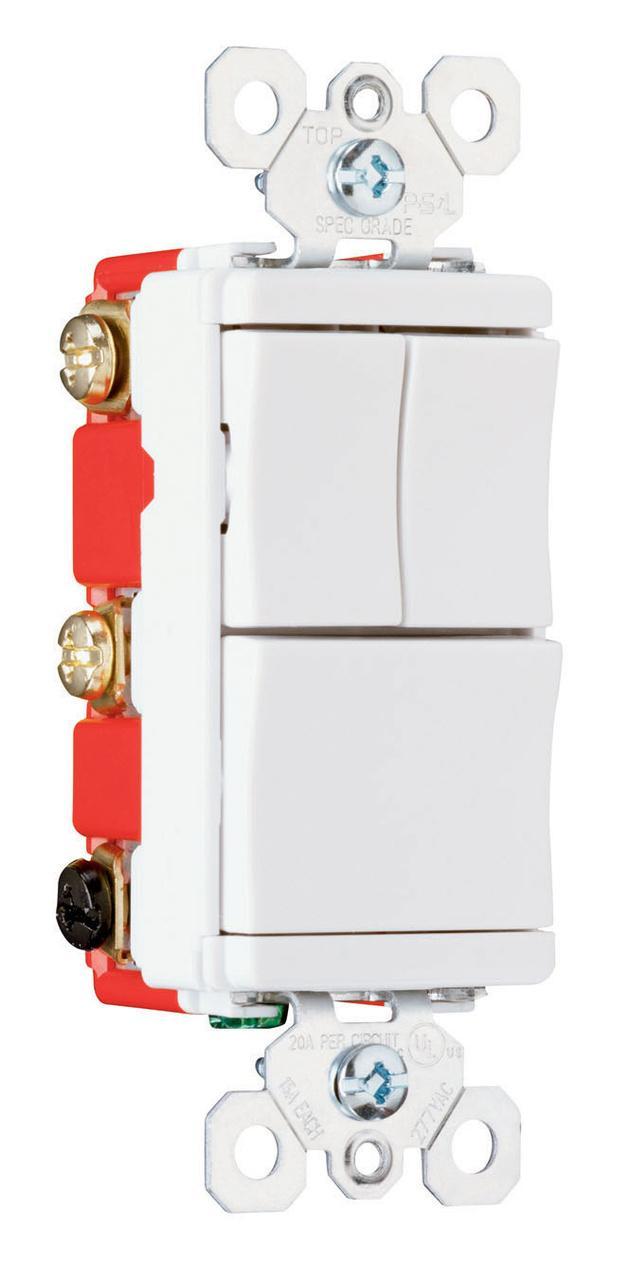

Pass & Seymour Legrand PS8111-20W
Part Number # PS8111-20W
SKU # 2390119
$28.74 / Each
Typical price:$28.75 / Each
Legrand-Pass & Seymour PS8111-20W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS8111-20W |
| SKU #: | 2390119 |
| Actuator: | Rocking Paddle Up/Down |
| Electrical Ratings: | 20 A, 277 V AC, 20 A, 277 VAC |
| Enclosure: | NEMA WD-1/WD-6 |
| Environmental Conditions: | -40 to 115 deg C Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 50000 cycles |
| Size: | 1.29 in L x 1.59 in W x 3.812 in H |
| Type: | Back/Side Wired Specification Grade |
| Color: | White |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122211 |
| UPC: | 00785007305913 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$28.74 / Each
Typical price:$28.75 / Each
Quantity:
- Pass & Seymour Combination Switch/Receptacle, Back/Side Wired Specification Grade, 20 A, 277 V AC Electrical Rating, 1 Pole, Rocking Paddle Up/Down Actuator, NEMA WD-1/WD-6 Enclosure, Wall Mounting, 1.29 in L x 1.59 in W x 3.812 in H Size, 50000 Cycles Operating Cycles, Environmental Conditions: -40 to 115 deg C Operating Temperature, Polycarbonate, White
PS8111-20W Application
Commercial ApplicationsPS8111-20W Item Features
- Impact-resistant polycarb back body and frame
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
- Internal screw-pressure-plate back and side wire capability for easy installation with 14 - 10 stranded or solid copper/copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal, and mounting screws
- All terminal screws backed out, ready-to-install
- https://www.youtube.com/watch?v=LX4RBw7p4YE
PS8111-20W Standards
ECCN: EAR99|UL 20|UL 94 V-2 Flammability Rated|UL ListedSKU #2390119Part Number #PS8111-20WUNSPSC39122211UPC00785007305913
