Part Number # PT5262
SKU # 2462285
PT5262
Pass & Seymour Legrand PT5262
Part Number # PT5262
SKU # 2462285
$11.01 / Each
Typical price:$11.02 / Each
Legrand-Pass & Seymour PT5262 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PT5262 |
| SKU #: | 2462285 |
| Amperage Rating: | 15 A |
| Dimensions: | 5 in H x 2 in W x 1.43 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | 3-Phase Duplex Extra Heavy Duty |
| Country of origin: | MX |
| Material: | Nylon/PVC/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007091571 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.01 / Each
Typical price:$11.02 / Each
Quantity:

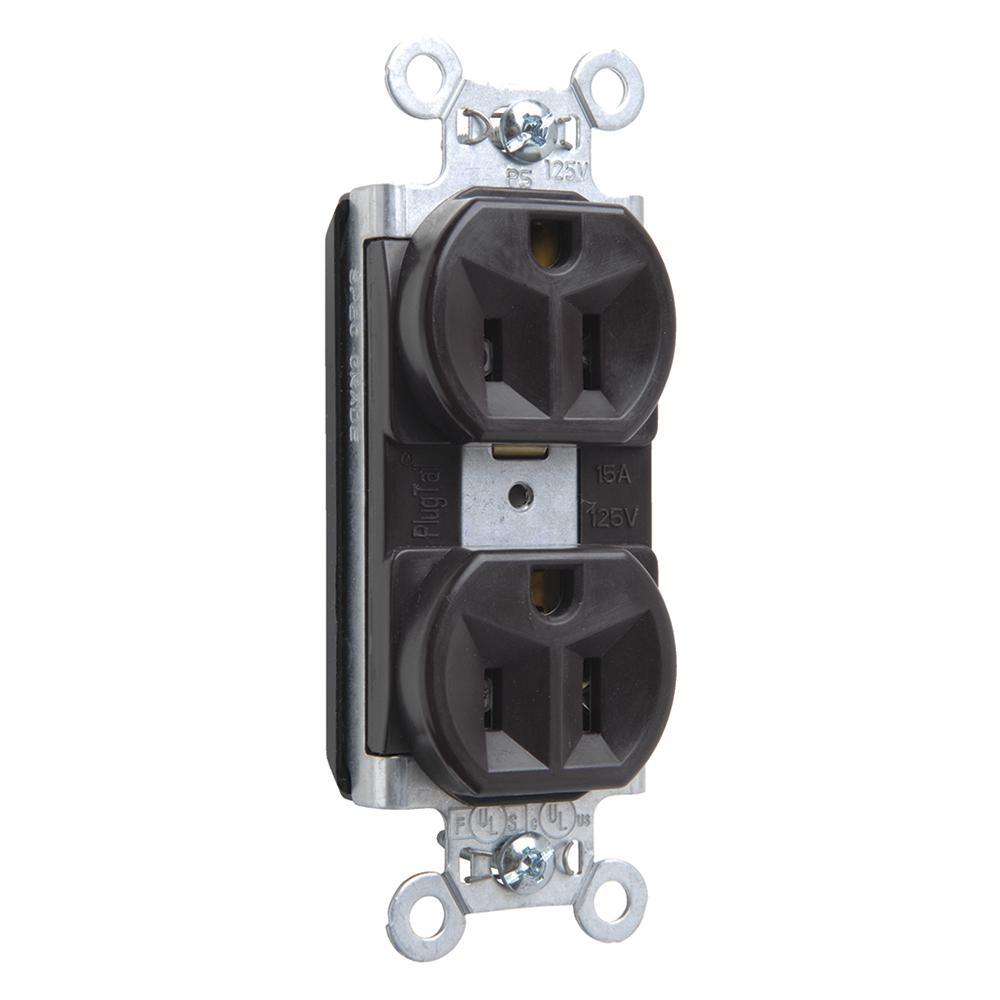

- Pass & Seymour PlugTail Straight Blade Receptacle, 3-Phase Duplex Extra Heavy Duty, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R, Commercial/Specification Grade, -40 to 60 deg C, Nylon/PVC/Thermoplastic, Brown, 5 in H x 2 in W x 1.43 in D
PT5262 Application
Healthcare, Education and Institutional ApplicationsPT5262 Item Features
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- http://www.youtube.com/watch?v=_SjD8max4i19
PT5262 Standards
UL 498 File No. E140596|cULus ListedSKU #2462285Part Number #PT5262UNSPSC39121406UPC00785007091571
Image provided may only be a representation of final product and may include optional equipment
