Part Number # RHCL453PTC
SKU # 2378614
Image Disclaimers Message
RHCL453PTC

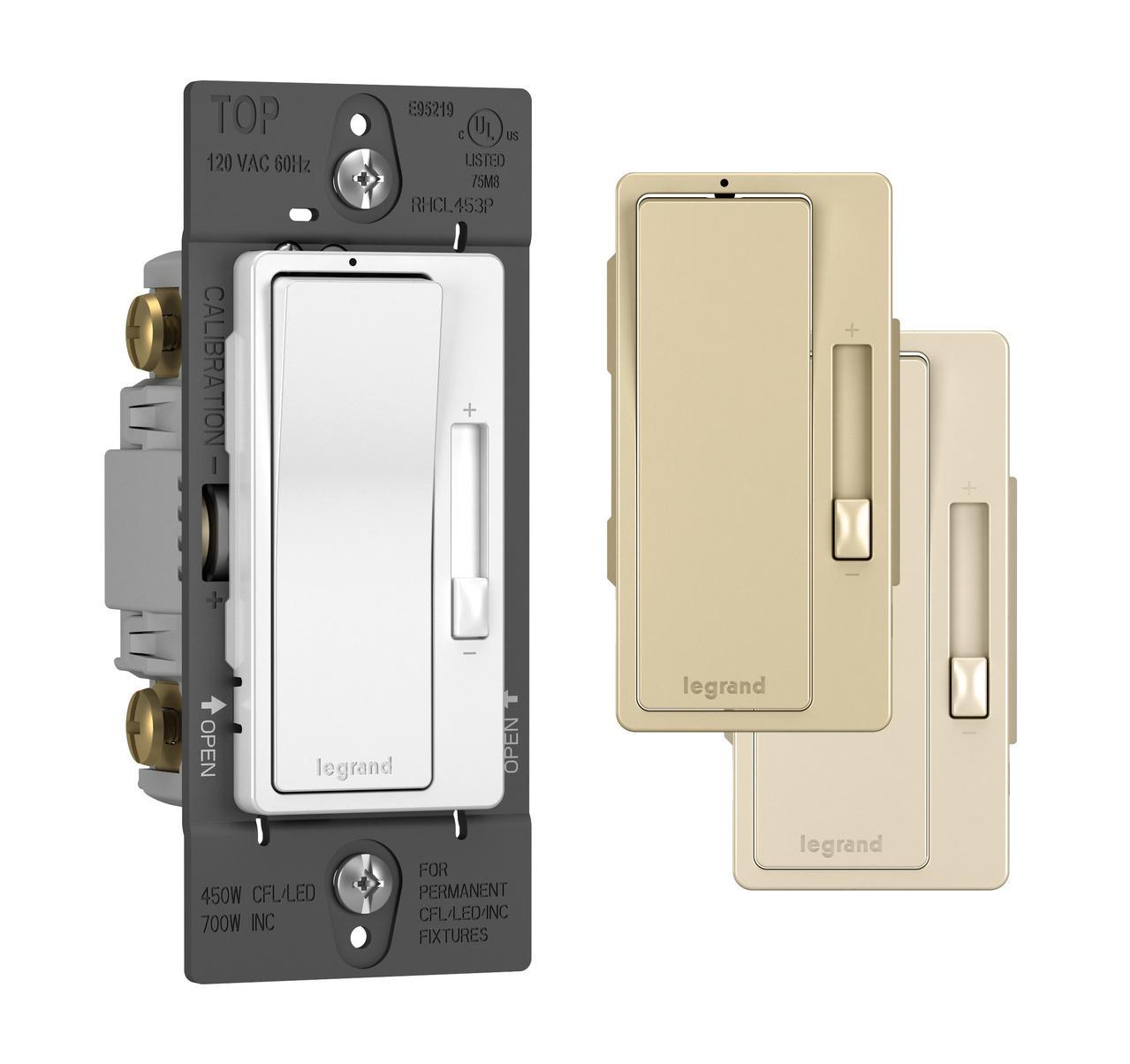

Pass & Seymour Legrand RHCL453PTC
Part Number # RHCL453PTC
SKU # 2378614
Legrand-Pass & Seymour RHCL453PTC Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | RHCL453PTC |
| SKU #: | 2378614 |
| Control: | Paddle/Slide |
| Dimensions: | 1-1/4 in L x 1-3/4 in W x 4-1/2 in H |
| Frequency Rating: | 60 Hz |
| Lamp Type: | CFL/Incandescent/LED |
| Number of Poles: | 1 |
| Operation Mode: | 3-Way |
| Temperature Rating (Degrees F): | 0 to 40 deg C |
| Terminal Type: | Screw |
| Type: | 3-Way |
| Color: | Tri-Color |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Mounting type: | Surface |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122206 |
| UPC: | 00078500705348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Pass & Seymour Legrand RHCL453PTC
Brand: Legrand-Pass & Seymour
Part Number: RHCL453PTC
Pass & Seymour Radiant Dimmer Switch, 3-Way, 120 VAC, 450/700 W Power, 60 Hz Frequency, 1 Pole, CFL/Incandescent/LED Lamp, Operation Mode: 3-Way, Paddle/Slide Control, Surface Mounting, Screw Terminal, 0 to 40 deg C, Thermoplastic, Tri-Color, 1-1/4 in L x 1-3/4 in W x 4-1/2 in H Dimensions
Additional Description: PS -RHCL453PTC RADIANT CFL/LED SP/3W 450W, TRI-COLOR
Catalog Description: Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant Registered Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately.
RHCL453PTC Application
Residential ApplicationsRHCL453PTC Item Features
- Rated for use with the following dimmable bulb types - 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark
- Constant memory features returns lights to their previous level after a power failure or outage
- Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs
- Reducing the maximum wattage a dimmer can handle.
- Features durable, high-impact resistant thermoplastic construction
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
- https://www.youtube.com/watch?v=CjpgAk7vct0
RHCL453PTC Standards
CSA C22.2 No. 184|cULus Listed|UL ListedSKU #2378614Part Number #RHCL453PTCUNSPSC39122206UPC00078500705348
