Part Number # TR5262-RED
SKU # 2465534
TR5262-RED

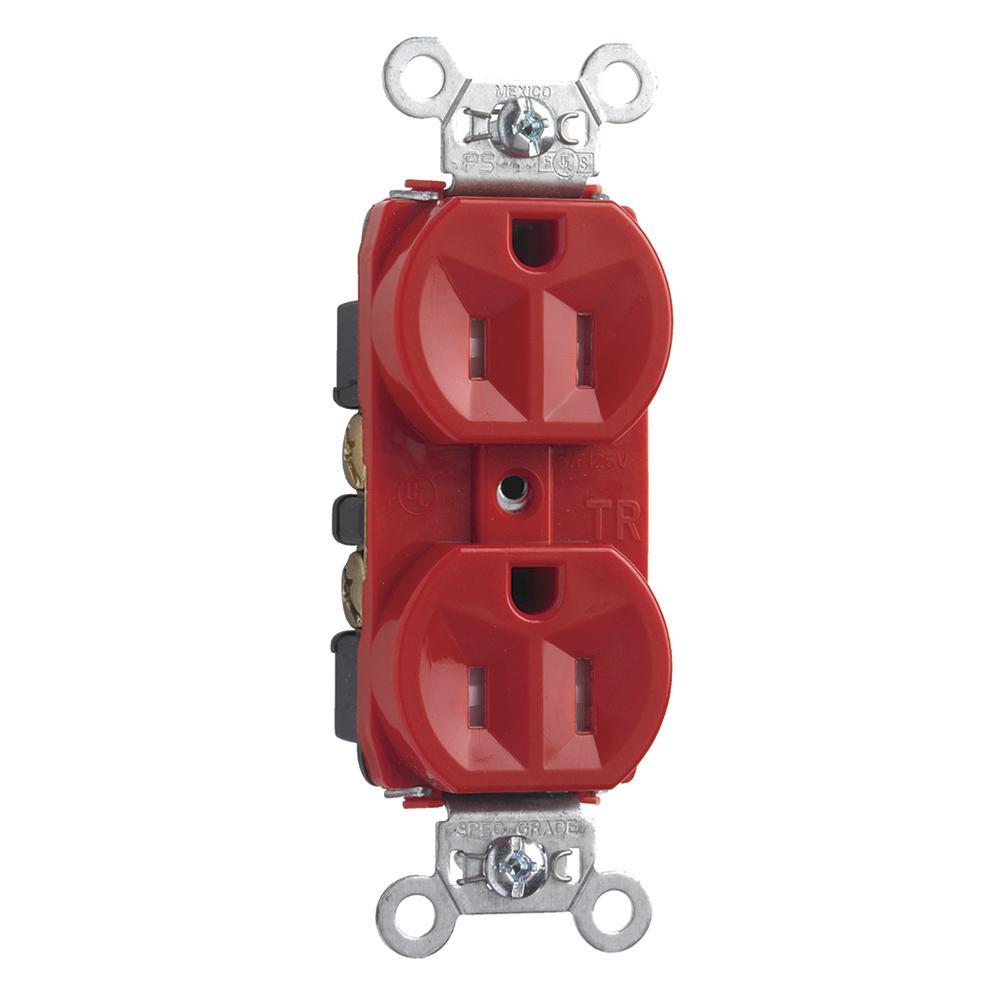

Pass & Seymour Legrand TR5262-RED
Part Number # TR5262-RED
SKU # 2465534
$20.40 / Each
Typical price:$25.51 / Each
Legrand-Pass & Seymour TR5262-RED Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | TR5262-RED |
| SKU #: | 2465534 |
| Amperage Rating: | 15 A |
| Dimensions: | 5.13 in H x 2 in W x 1.4 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | 3-Phase Duplex Tamper-Resistant |
| Country of origin: | MX |
| Material: | Nylon/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500724372 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.40 / Each
Typical price:$25.51 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, 3-Phase Duplex Tamper-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, Red, 5.13 in H x 2 in W x 1.4 in D Dimensions
TR5262-RED Application
Healthcare, Education and Institutional ApplicationsTR5262-RED Item Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20A, 125V
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- http://www.youtube.com/watch?v=CjT4MIzB4sw
TR5262-RED Standards
UL 498 File No. E140596|CSA C22.2 No. 42|Federal Specification WC596SKU #2465534Part Number #TR5262-REDUNSPSC39121406UPC00078500724372
Image provided may only be a representation of final product and may include optional equipment
