Part Number # TR5262W
SKU # 2450094
Image Disclaimers Message
TR5262W

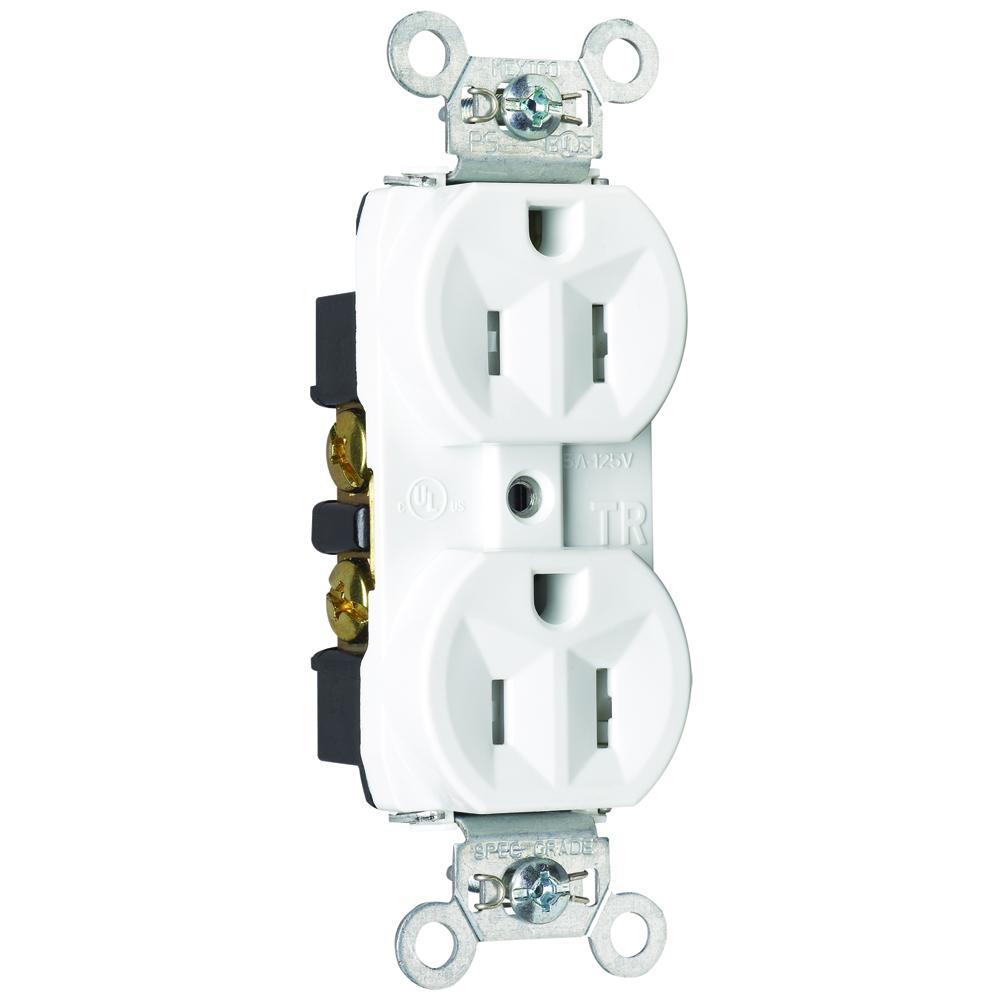

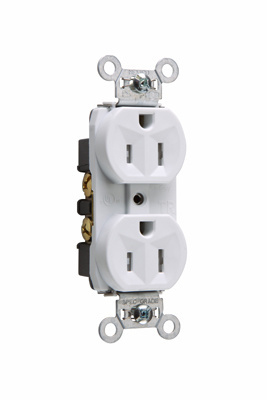

Pass & Seymour Legrand TR5262W
Part Number # TR5262W
SKU # 2450094
$193.43 / Case
Typical price:$241.80 / Case
Legrand-Pass & Seymour TR5262W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | TR5262W |
| SKU #: | 2450094 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.322 in L x 1.13 in W x 3.281 in H |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex Tamper-Resistant |
| Color: | White |
| Country of origin: | MX |
| Material: | Nylon/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500724370 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$193.43 / Case
Typical price:$241.80 / Case
Quantity:
- Pass & Seymour Straight Blade Receptacle, Duplex Tamper-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, White, 1.322 in L x 1.13 in W x 3.281 in H Dimensions
TR5262W Application
Healthcare, Education, Commercial and Institutional ApplicationsTR5262W Item Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20A, 125V
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
- http://www.youtube.com/watch?v=CjT4MIzB4sw
TR5262W Standards
CSA C22.2 No. 42|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability RatedSKU #2450094Part Number #TR5262WUNSPSC39121406UPC00078500724370
