Part Number # UB500-30GM65-WS3-BHMS5
SKU # 1244149

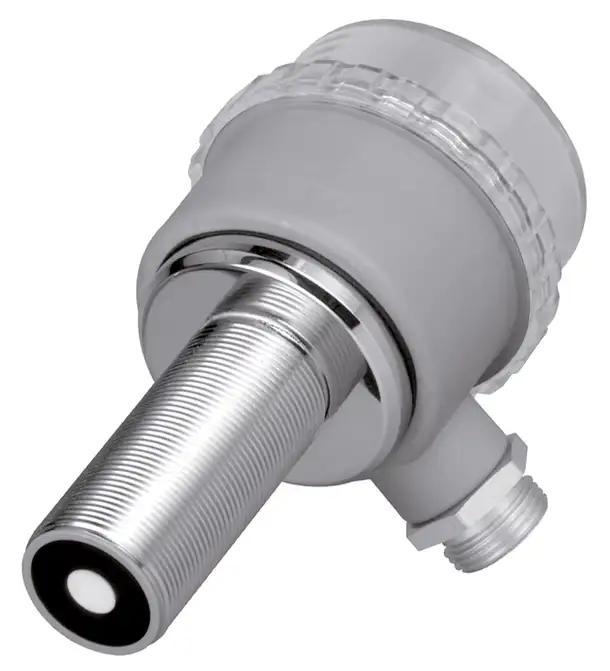

Image provided may only be a representation of
final product and may include optional equipment
UB500-30GM65-WS3-BHMS5
Pepperl+Fuchs UB500-30GM65-WS3-BHMS5 Ub500-30Gm65-Ws3-Bhms5 Thyristor Ultrasonic Sensor
Part Number # UB500-30GM65-WS3-BHMS5
SKU # 1244149
$754.30 / Each
Typical price:$776.16 / Each
Pepperl+Fuchs UB500-30GM65-WS3-BHMS5 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | UB500-30GM65-WS3-BHMS5 |
| SKU #: | 1244149 |
| Amperage Rating: | 700 mA |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -40 to 85 deg C Storage Temperature |
| Frequency Rating: | 15 Hz |
| Light Source: | LED |
| Operating Temperature: | -25 to 70 deg C |
| Response Time: | 45 ms, less than 45 ms |
| Sensing Distance: | 70 to 500 mm |
| Sensing Method: | Ultrasonic |
| Sensing Range: | 70 to 500 mm |
| Size: | 30 mm Dia |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Type: | Single Head System, Ultrasonic Sensor |
| Connection type: | 5-Pin V95 Connector, 5-Pin/V95 Connector |
| Material: | Brass |
| Output type: | PNP 1NO, Thyristor/NO |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 39122230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$754.30 / Each
Typical price:$776.16 / Each
Quantity:
- Pepperl+Fuchs, UB500-30GM65-WS3-BHMS5, Sensor, Single Head System, Ultrasonic Sensing Method, 70 to 500 mm Sensing, 45 ms Response, PNP 1NO Output, 90 to 140 V AC, 700 mA, 15 Hz Frequency, 5-Pin V95 Connector Connection, 30 mm Dia Size, IP65 Enclosure, -25 to 70 deg C Operating, Environmental Conditions: -40 to 85 deg C Storage Temperature
UB500-30GM65-WS3-BHMS5 Item Features
- AC switchpoint output
- 330° high visibility LEDs
- Fingertip range adjustability
UB500-30GM65-WS3-BHMS5 Standards
CE|cULus Listed|EN IEC 60947-5-2:2020|IEC 60947-5-2:2019SKU #1244149Part Number #UB500-30GM65-WS3-BHMS5UNSPSC39122230UPC
