Brand: Remke
104C0120AP

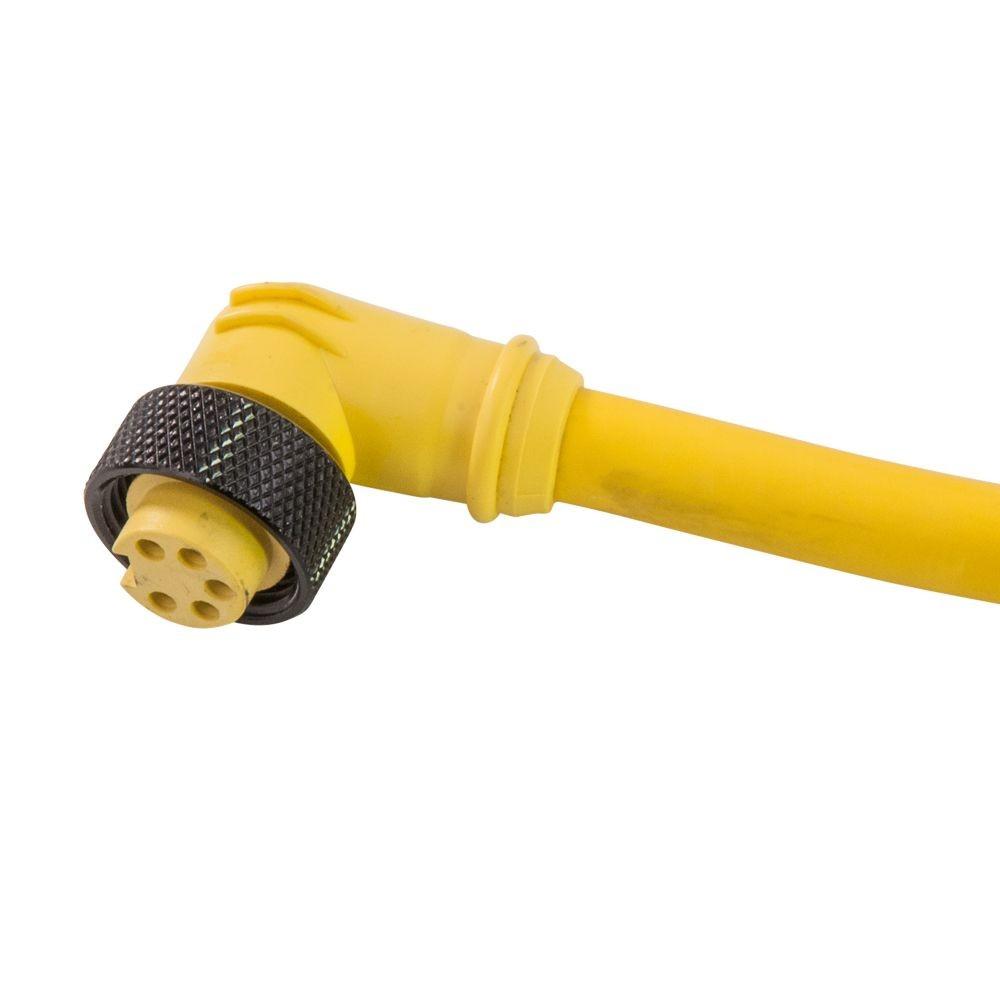

Remke 104C0120AP Mini-Link Tuff-Link Plug Assembly
Part Number # 104C0120AP
SKU # 2247409
$58.94 / Each
Typical price:$82.52 / Each
Remke 104C0120AP Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 104C0120AP |
| SKU #: | 2247409 |
| Amperage Rating: | 10, 10 A |
| Angle: | 90, 90 deg |
| Cable Material: | PVC |
| Connector Type: | Female |
| IEC Rating: | IP68 |
| NEMA Rating: | NEMA 6P |
| Number of Poles: | 4 |
| Wire Pin Colors: | Black/Green/Red/White |
| Cable length: | 12, 12 ft |
| Cable type: | Stranded/STOW |
| Country of origin: | US |
| Manufacturer Name: | NSi Industries |
| UNSPSC: | 32151904 |
| UPC: | 00785411800998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.94 / Each
Typical price:$82.52 / Each
Quantity:
- Remke Mini-Link Tuff-Link Plug Assembly, Female Connector, Stranded/STOW Cable, 12 ft Cable Length, PVC Cable, 4 Poles, 600 V AC/DC, 10 A, 90 deg, Wire Pin Colors: Black/Green/Red/White, IP68 IEC Rating, NEMA 6P
104C0120AP Application
Sensors on Conveyors, Automated Assembly Equipment, Packaging Equipment, Robotics Equipment, Bus Systems and Transportation Equipment Applications104C0120AP Item Features
- Nickel coated then gold plated contacts for enhanced corrosion resistance and conductivity
- Pins and contacts crimped on to wires assuring secure terminations
- Precision machined contacts for highly accurate tolerances
- Integral strain relief and plated coupling nuts
- PVC which is best for general assembly applications
- These connectors are ideally suited for applications where flexibility and resistance to stress, abuse or harsh environments is important
104C0120AP Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657|UL Listed|SAE/IEC SpecifiedSKU #2247409Part Number #104C0120APUNSPSC32151904UPC00785411800998
